Manufactured according to DIN 6539 standards with a stub length 3×D design, the ILIX 6213TN provides enhanced rigidity and positional accuracy. The optimized point geometry reduces penetration force while improving chip evacuation. Its robust construction ensures stable drilling performance and extended tool life in demanding industrial machining operations.

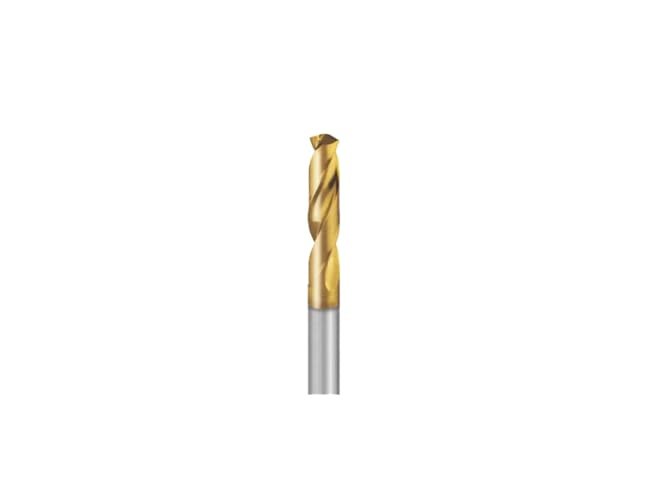

6213TN Drill Bit DIN 6539 ILIX ILIX

The precision-ground solid carbide material combined with specialized edge preparation produces excellent surface quality, particularly in high-alloy steels. Double point thinning improves chip breaking and minimizes cutting pressure, enabling higher productivity compared with conventional drills. The ILIX 6213TN is suitable for automated machining and high-speed production environments requiring consistent accuracy.

Features

Solid Carbide Construction

High rigidity and wear resistance for demanding machining

TiN Coating

Improved tool life and reduced friction

Advanced Point Geometry

Double point thinning for efficient chip control

Stub Length Design

3×D length for increased stability and precision

High Cutting Performance

Suitable for high speeds and feed rates

Spesification

Ø mm	l1	l 2	d 2	6213TN
1.5	32	9	1.5	•
1.6	34	10	1.6	•
1.7	34	10	1.7	•
1.8	36	11	1.8	•
1.9	36	11	1.9	•
2.0	38	12	2.0	•
2.1	38	12	2.1	•
2.2	40	13	2.2	•
2.3	40	13	2.3	•
2.4	43	14	2.4	•
2.5	43	14	2.5	•
•				•
•				•
•				•
15.5	115	58	15.5	•
15.6	115	58	15.6	•
15.7	115	58	15.7	•
15.8	115	58	15.8	•
15.9	115	58	15.9	•
16.0	115	58	16.0	•
16.5	119	60	16.5	•
17.0	119	60	17.0	•
17.5	123	62	17.5	•
18.0	123	62	18.0	•
18.5	127	64	18.5	•
19.0	127	64	19.0	•
19.5	131	66	19.5	•
20.0	131	66	20.0

Spesification

N.Cod.						6052XB	N.Cod.						6052XB
Type Record						VA i	Type Record						VA i
Cutting direction						Right hand	Cutting direction						Right hand
Material						K 40F	Material						K 40F
ø mm d₂ m7	l1	l2	l3	l4	h6		ø mm d₂ m7	l1	l2	l3	l4	h6
3.0	66	28	23	36	6	•	6.7	91	53	43	36	8	•
3.1	66	28	23	36	6	•	6.8	91	53	43	36	8	•
3.2	66	28	23	36	6	•	6.9	91	53	43	36	8	•
3.3	66	28	23	36	6	•	7.0	91	53	43	36	8	•
3.4	66	28	23	36	6	•	7.1	91	53	43	36	8	•
3.5	66	28	23	36	6	•	7.2	91	53	43	36	8	•
3.6	66	28	23	36	6	•	7.3	91	53	43	36	8	•
3.7	66	28	23	36	6	•	7.4	91	53	43	36	8	•
3.8	74	36	29	36	6	•	7.5	91	53	43	36	8	•
3.9	74	36	29	36	6	•	7.6	91	53	43	36	8	•
4.0	74	36	29	36	6	•	7.7	91	53	43	36	8	•
4.1	74	36	29	36	6	•	7.8	91	53	43	36	8	•
4.2	74	36	29	36	6	•	7.9	91	53	43	36	8	•
4.3	74	36	29	36	6	•	8.0	91	53	43	36	8	•
4.4	74	36	29	36	6	•	8.1	103	61	49	40	10	•
4.5	74	36	29	36	6	•	8.2	103	61	49	40	10	•
4.6	74	36	29	36	6	•	8.3	103	61	49	40	10	•
4.7	74	36	29	36	6	•	8.4	103	61	49	40	10	•
4.8	82	44	35	36	6	•	8.5	103	61	49	40	10	•
4.9	82	44	35	36	6	•	8.6	103	61	49	40	10	•
5.0	82	44	35	36	6	•	8.7	103	61	49	40	10	•
5.1	82	44	35	36	6	•	8.8	103	61	49	40	10	•
5.2	82	44	35	36	6	•	8.9	103	61	49	40	10	•
5.3	82	44	35	36	6	•	9.0	103	61	49	40	10	•
5.4	82	44	35	36	6	•	9.1	103	61	49	40	10	•
5.5	82	44	35	36	6	•	9.2	103	61	49	40	10	•
5.6	82	44	35	36	6	•	9.3	103	61	49	40	10	•
5.7	82	44	35	36	6	•	9.4	103	61	49	40	10	•
5.8	82	44	35	36	6	•	9.5	103	61	49	40	10	•
5.9	82	44	35	36	6	•	9.6	103	61	49	40	10	•
6.0	82	44	35	36	6	•	9.7	103	61	49	40	10	•
6.1	91	53	43	36	8	•	9.8	103	61	49	40	10	•
6.2	91	53	43	36	8	•	9.9	103	61	49	40	10	•
6.3	91	53	43	36	8	•	10.0	103	61	49	40	10	•
6.4	91	53	43	36	8	•	10.1	118	71	56	45	12	•
6.5	91	53	43	36	8	•	10.2	118	71	56	45	12	•
6.6	91	53	43	36	8	•	10.3	118	71	56	45	12	•

Spesification

Type Record						Va i
Cutting Direction						Right hand
Material						K 40F
ø mm d₂ m7	l1	l2	l3	l4	h6
10.4	118	71	56	45	12	•
10.5	118	71	56	45	12	•
10.6	118	71	56	45	12	•
10.7	118	71	56	45	12	•
10.8	118	71	56	45	12	•
10.9	118	71	56	45	12	•
11.0	118	71	56	45	12	•
11.1	118	71	56	45	12	•
11.2	118	71	56	45	12	•
11.3	118	71	56	45	12	•
11.4	118	71	56	45	12	•
11.5	118	71	56	45	12	•
11.6	118	71	56	45	12	•
11.7	118	71	56	45	12	•
11.8	118	71	56	45	12	•
11.9	118	71	56	45	12	•
12.0	118	71	56	45	12	•
12.5	124	77	60	45	14	•
13.0	124	77	60	45	14	•
13.5	124	77	60	45	14	•
14.0	124	77	60	45	14	•
14.5	133	83	63	48	16	•
15.0	133	83	63	48	16	•
15.5	133	83	63	48	16	•
16.0	133	83	63	48	16	•
