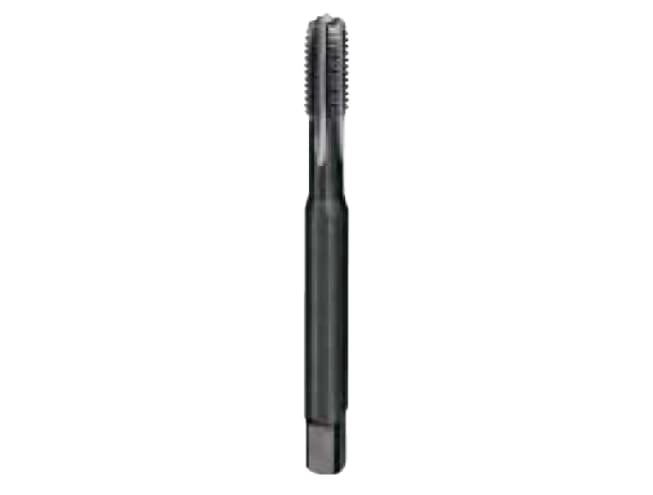

6631 Machine Tap GG DIN 371 ILIX
The ILIX 6631 Machine Tap GG DIN 371 is a precision threading tool manufactured from high-quality HSS-Co material, providing superior toughness and wear resistance. Designed with a reinforced shank and straight flutes, it ensures reliable performance when producing ISO metric coarse threads in cast iron and non-ferrous materials across industrial machining applications.
23 people are viewing this product right now
🔥 11 items sold in last 3 hours
Engineered according to DIN 371 standards, the ILIX 6631 tap supports both blind and through hole threading operations with excellent dimensional accuracy. The tool is available in uncoated and advanced TiAlN Futura coated versions, offering improved durability, reduced friction, and extended tool life during demanding production processes involving abrasive materials.
6631 Machine Tap GG DIN 371 ILIX
Optimized for machining grey cast iron, spheroidal cast iron, zinc alloys, and reinforced thermoplastics, the ILIX 6631 GG tap delivers consistent chip evacuation and stable cutting action. Its cobalt alloy composition enhances heat resistance, making it suitable for high-performance tapping environments where reliability, precision, and productivity are critical requirements in manufacturing operations.
Features
Overview
| Specification | Details |
|---|---|
| Product Series | 6631 GG |
| Standard | DIN 371 |
| Thread Standard | ISO Metric Coarse (DIN 13) |
| Material | HSS-Co |
| Tolerance | 6HX |
| Helix Angle | 0° (straight flute) |
| Chamfer Form | C |
| Diameter Range | M3 – M10 |
| Hole Type | Blind hole and through hole |
| Application Materials | Grey cast iron, spheroidal cast iron, zinc alloys, reinforced plastics |
