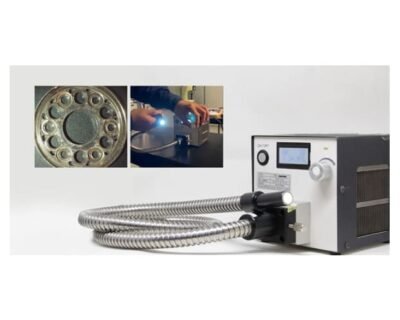

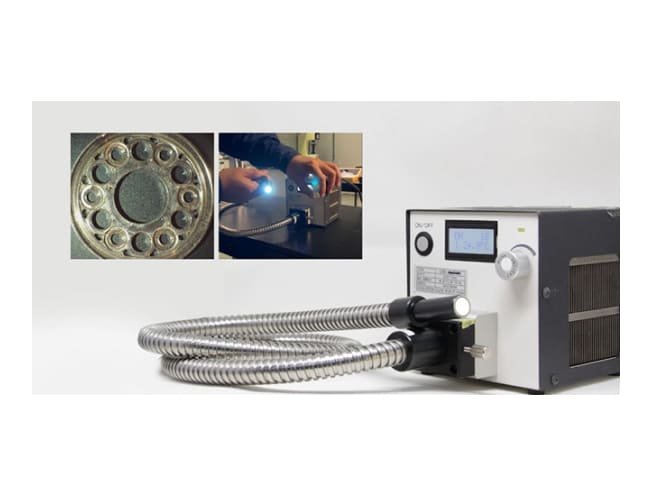

Aitec Lighting box Series
The Aitec Lighting Box Series consists of high-brightness LED illumination boxes designed for industrial inspection and machine vision applications. These compact LED light sources replace traditional metal halide and fiber optic lamps, offering stable, powerful illumination with optional interfaces and customizable optics for versatile inspection environments.
49 people are viewing this product right now
🔥 10 items sold in last 3 hours
Aitec Lighting Boxes provide uniform and intense lighting for image processing and visual inspection systems. Models range from compact units ideal for embedded device use to high-output boxes exceeding metal halide lamp performance, complete with fan cooling, external control interfaces, and options for filter changers and multi-wavelength output.
Aitec llbkc Lighting box Series
Built for industrial automation, the Aitec Lighting Box Series delivers reliable illumination through LED technology with stable constant-current operation. Featuring lightweight designs, multiple control interfaces (Parallel, RS-232C, LAN), and support for various light guide adapters, these boxes enable high-precision imaging across manufacturing, quality control, and machine vision tasks.
Features
Overview

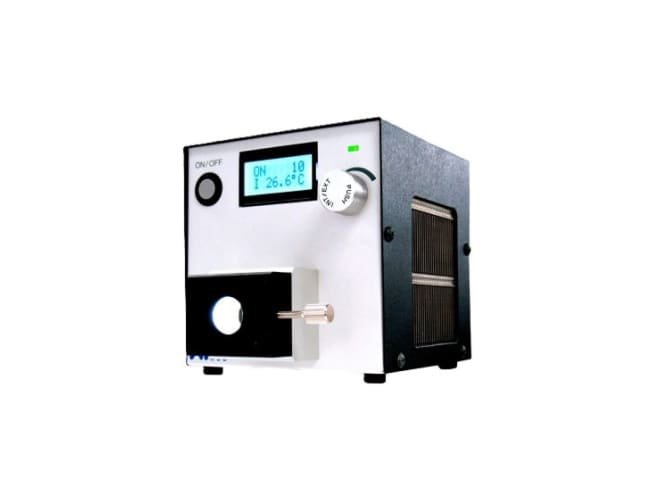

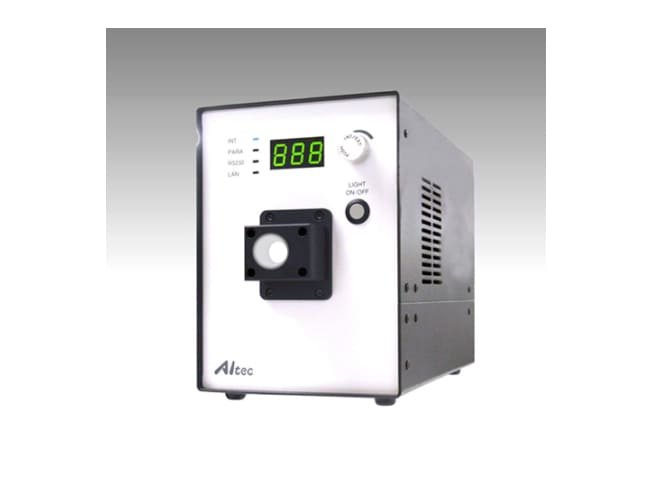

| Specification | LLBK Series (Compact) | LLBG Series (High-Brightness) | LLBGR-AP Series (Full-Color) |
|---|---|---|---|
| Lighting Type | LED light source box | High-brightness LED box | Full-color high-brightness LED |
| Application | Image processing & inspection | Industrial vision / high output | Industrial vision with color control |
| Illuminance Output | Up to 230,000 lx (varies by color) | Exceeds metal halide >250 W equivalent | Exceeds 350 W metal halide equivalent |
| Control Interfaces | DC power (24 V), AC optional | Parallel / RS-232C / LAN | Parallel / LAN + dimming / feedback functions |
| Cooling System | Fan cooling standard | Enhanced fan-cooled | Advanced fan-cooled with error detection |
| Recommended Fiber/Bundles | φ8–14 mm typical | Φ3–20 mm range | Φ3–20 mm range |
| Power Supply | DC24 V / AC option | AC100–240 V | AC100–240 V |
| Dimensions / Weight | 112×110×110 mm / 1.4 kg | Larger chassis, 8 kg range | Larger chassis like LLBG |
| Special Features | Compact form factor | High output with stable cooling | Adjustable dimming + error detection |
