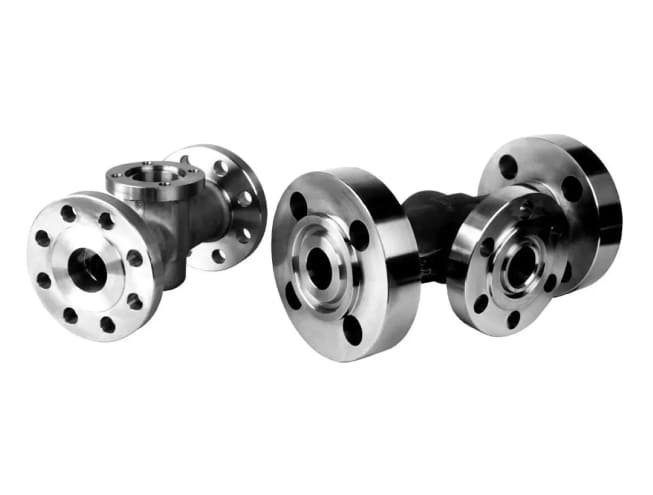

Engineered for high versatility, the Autoradial head performs complete machining cycles automatically, including internal and external grooving, O-ring seat machining, and spiral cutting on flanges. Interchangeable gear blocks allow adjustable feed rates, while the modular MHD coupling system ensures compatibility with various arbors and toolholding configurations across industrial environments.

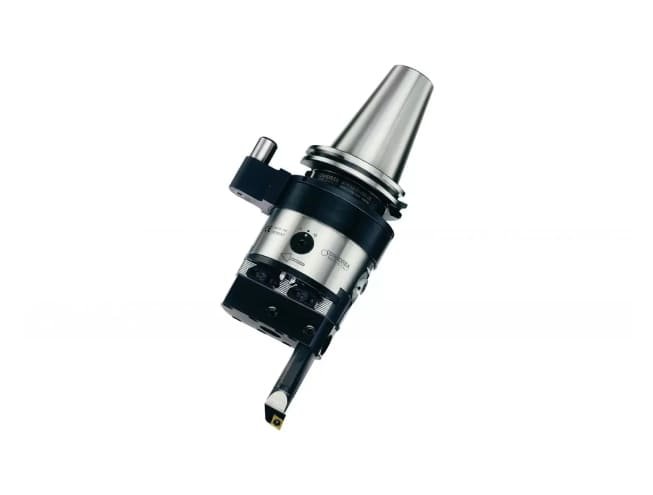

Autoradial D`Andrea
The Autoradial combines robust mechanical design with simple operation, allowing automatic working feed and quick return movement for efficient machining processes. Its ability to operate without reversing spindle direction enhances reliability and reduces cycle time, making it ideal for modern production systems requiring consistent performance and flexible tooling solutions.
Features
Overview
| Specification | Details |
|---|---|
| Product Name | Autoradial |
| Brand | D’Andrea |
| Tool Type | Automatic Facing Head |

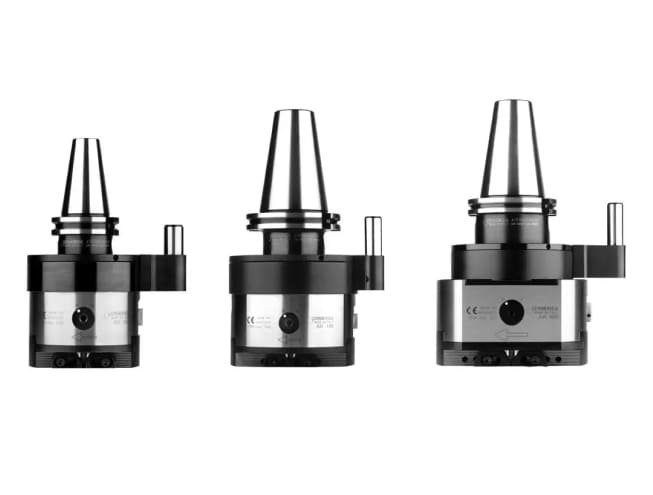

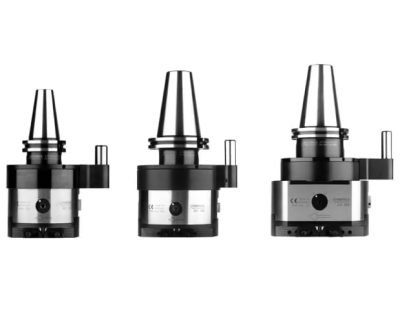

| Available Models | AR 100, AR 125, AR 160, AR 200 |
| Feed Rates (mm/rev) | 0.05 / 0.10 / 0.20 / 0.40 / 0.60 |
| Rapid Return | Approx. 0.80 mm/rev |
| Mounting System | Interchangeable arbor with MHD modular system |
| Machine Compatibility | Machining centers, CNC machines, special machines |
| Operations | Facing, back-facing, grooving, spiral cutting, seat machining |
| Interface Requirement | No electronic interface required |
