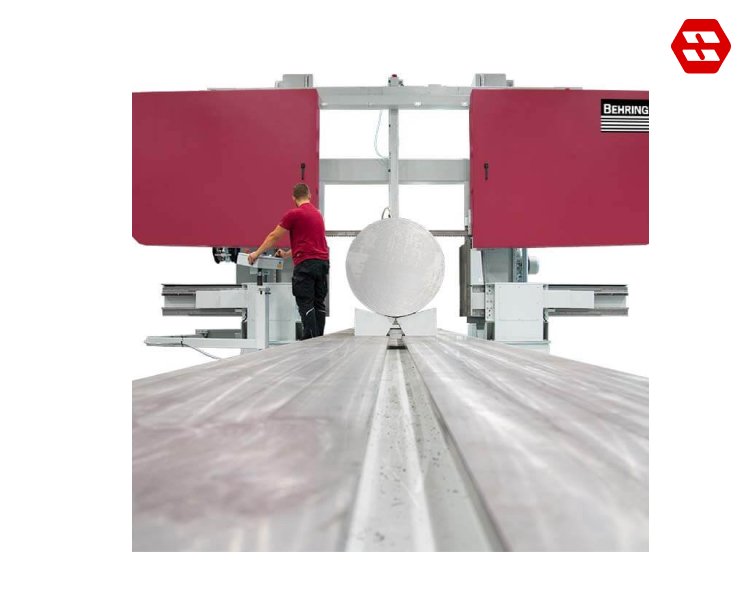

Gantry Saw HBP1100 GANTRY

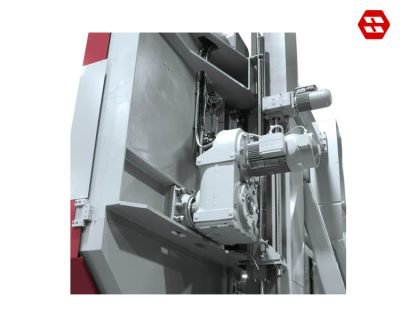

Servo Feed System

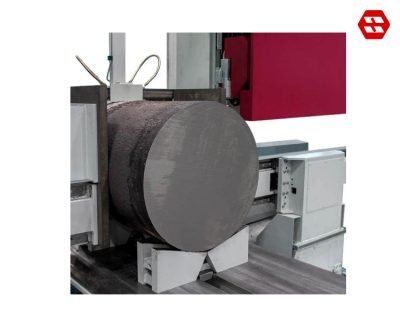

Centric Material Clamping
Gantry With Two or More Saw Units
Cast Iron Band Guiding Parts

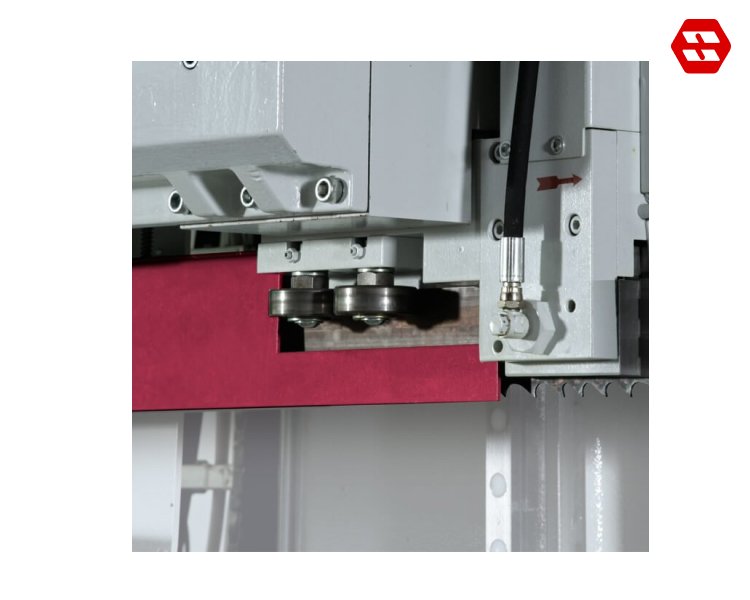

Carbide Blade Guides
Powerful Saw Drive

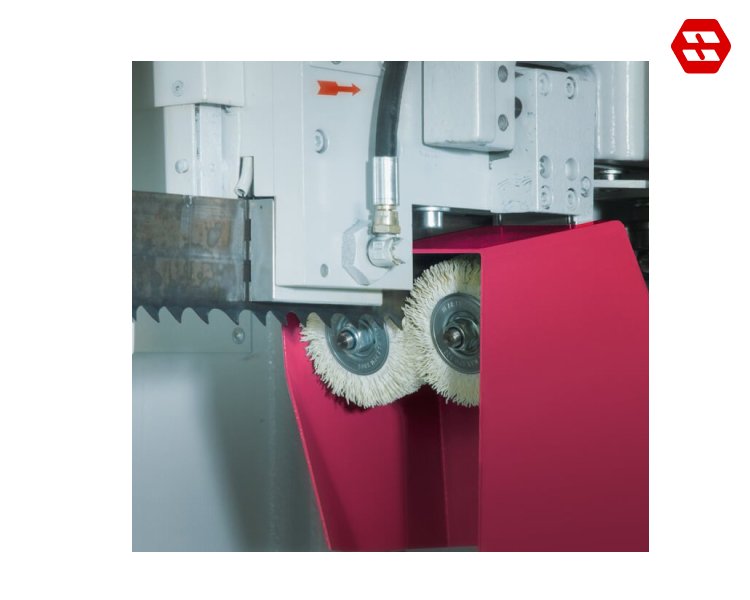

Duplex Chip Brushes
Features of The Gantry Saw HBP1100 GANTRY
Technical Data Gantry Saw HBP1100 GANTRY
| Cutting Range | |
| Cutting range 90° round | 1,100 mm |
| Cutting range 90° flat | 1,100 x 1,100 mm |
| Smallest dimension to be sawn round | 100 mm |
| Smallest dimension to be sawn flat | 100 x 50 mm |
| Performance Characteristics | |
| Drive power | 15 kW |
| Blade speed | 8 – 84 m/min |
| Saw blade dimensions | 12,930 x 80 x 1.6 mm |
| Total power | 30 kW |
| Table size L x W | 6,500 x 1,200 mm |
| Travel way of the portal (horizontal) | 5,000 mm |
| ravel way of the portal (vertical) | 1,200 mm |
| Dimensions and Weight | |
| Length | 8,000 mm |
| Width | 7,400 mm |
| Height | 3,850 mm |
| Weight | 30,000 kg |
