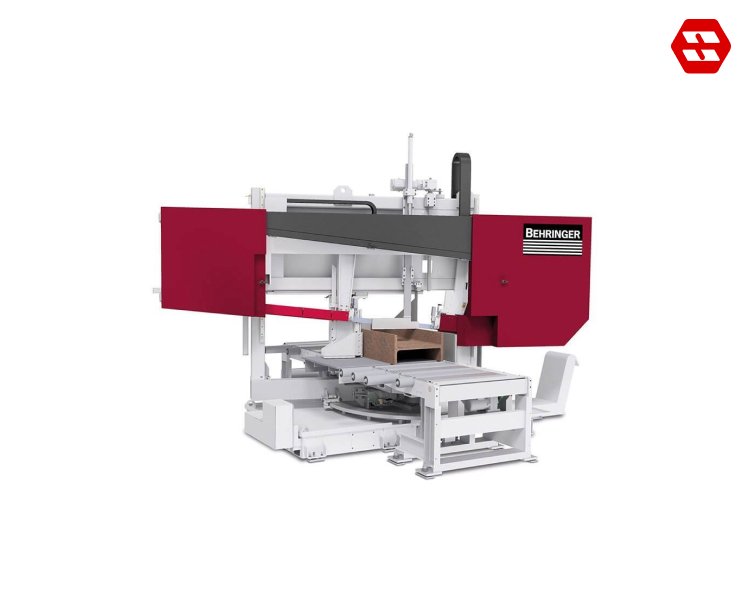

Bandsaw Machine Horizontal Mitre HBE610-1256 BEHRINGER
Price range: Rp15 through Rp20
Memiliki pemotongan horizontal presisi dengan kemampuan mitra. Dirancang untuk akurasi dan efisiensi, mesin ini sangat cocok untuk industri yang memerlukan pemotongan miring pada bidang horizontal. Konstruksinya yang kokoh dan fitur-fitur canggihnya memastikan hasil pemotongan yang konsisten dan berkualitas tinggi. Pilihan yang cocok untuk lingkungan manufaktur yang ingin mengoptimalkan kinerja pemotongan dengan tetap menjaga presisi dan keandalan.
30 people are viewing this product right now
🔥 11 items sold in last 3 hours
Horizontal Mitre HBE610-1256

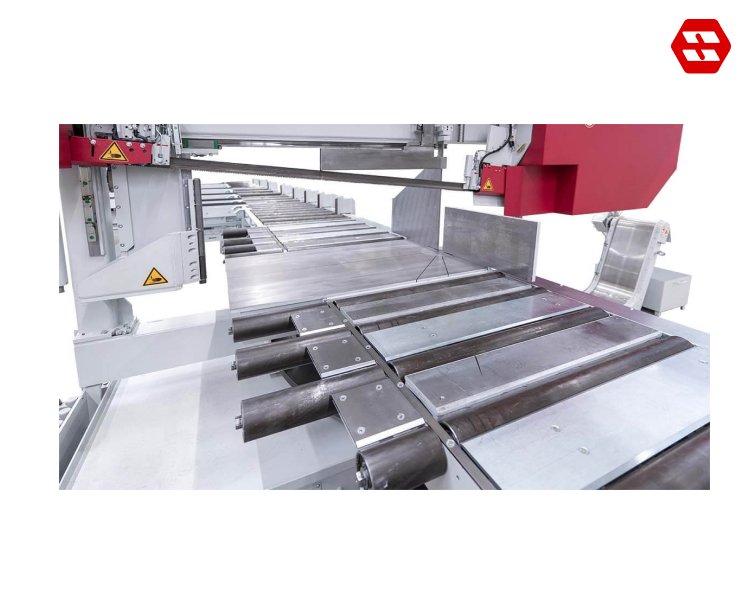

Enclosed Material Table

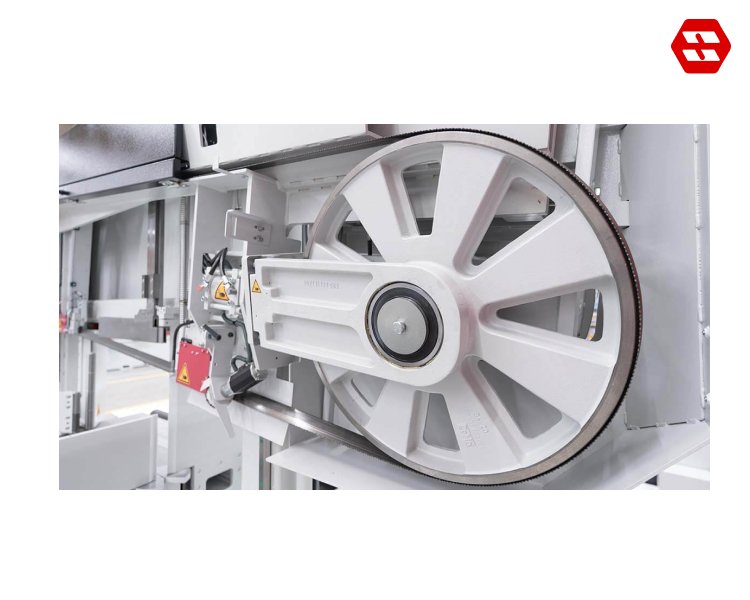

Cast Iron Band Guiding Parts

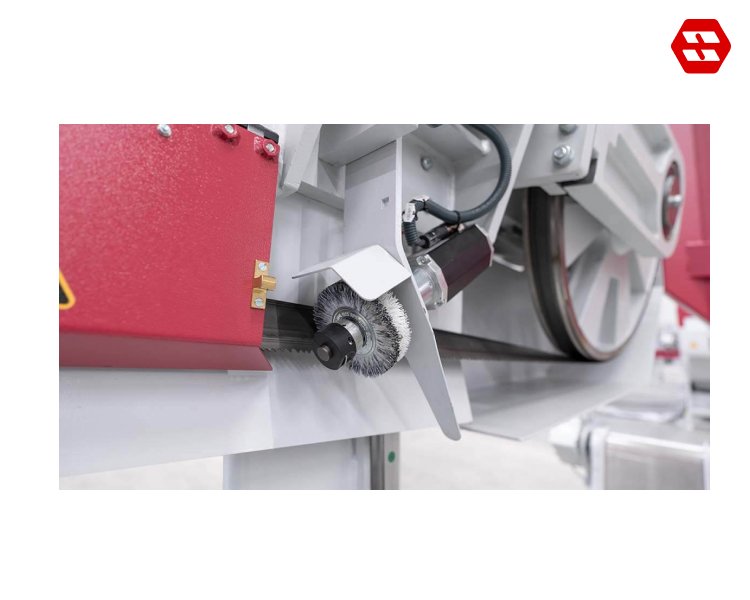

Electrically Driven Chip Brush

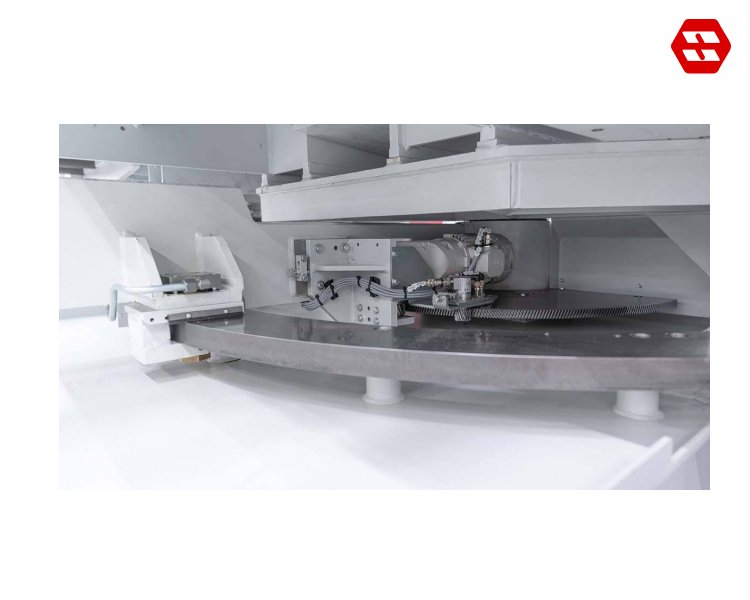

Fast NC Mitre Angle Adjustment

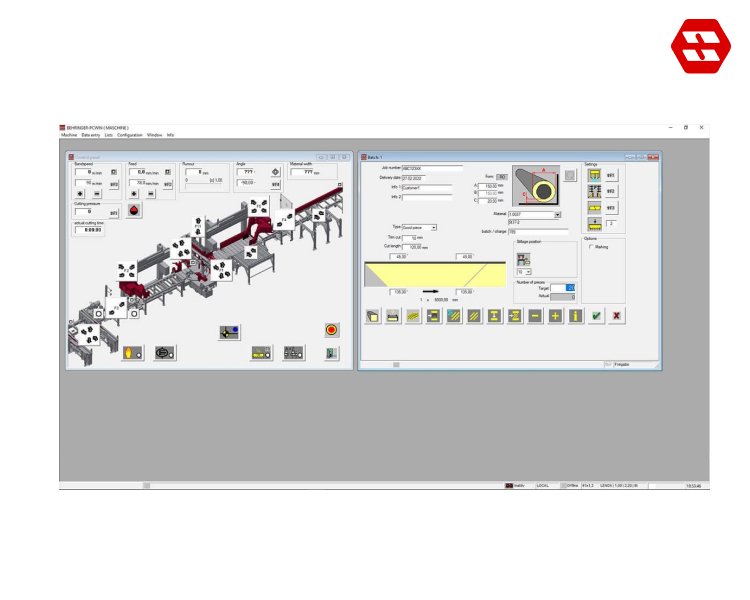

Powerful PC Control

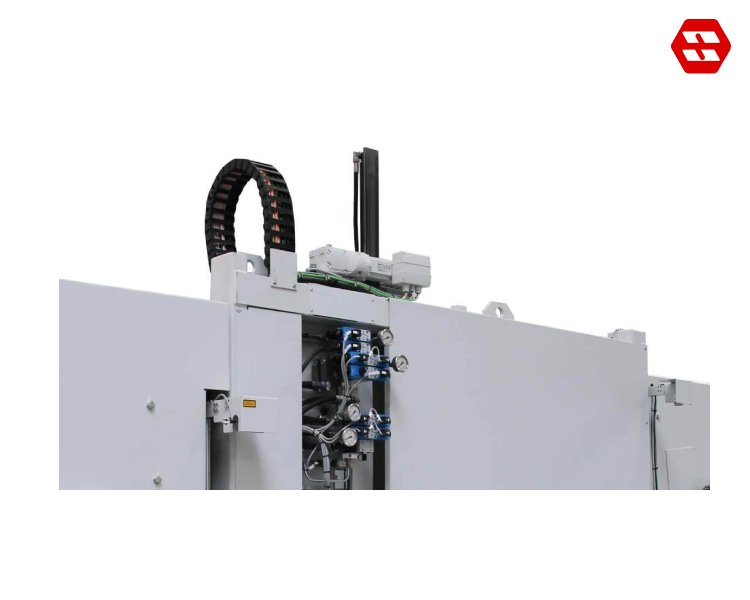

Servo feed System With BEHRINGER Cutting Pressure Control
Features of The Metal Cutting Bandsaw HBE610-1256G
Technical Data Mitre Bandsaw HBE610-1256G
| Cutting Range | |
| Cutting range 90° round | 610 mm |
| Cutting range 90° flat | 1,250 x 610 mm |
| 75° Mitre left round / flat | 610 mm / 1,200 x 610 mm |
| 60° Mitre left round / flat | 610 mm / 1,100 x 610 mm |
| 45° Mitre left round / flat | 610 mm / 880 x 610 mm |
| 30° Mitre left round / flat | 610 mm / 610 x 610 mm |
| 75° Mitre right round / flat | 610 mm / 1,200 x 610 mm |
| 60° Mitre right round / flat | 610 mm / 1,100 x 610 mm |
| 45° Mitre right round / flat | 610 mm / 880 x 610 mm |
| Smallest dimension to be sawn round | 30 mm |
| Smallest dimension to be sawn flat | 30 x 30 mm |
| Performance Characteristics | |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 10,000 x 54 (67) x 1.6 mm |
| Rest piece length | 45 mm |
| Total power | 16 kW |
| Saw feed | Servo feed via ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 1,950 mm (4,700 mm at mitre angle 30°) |
| Width | 4,700 mm |
| Height | 3,240 mm |
| Weight | 4,500 kg |
| Material support height | 800 mm |
