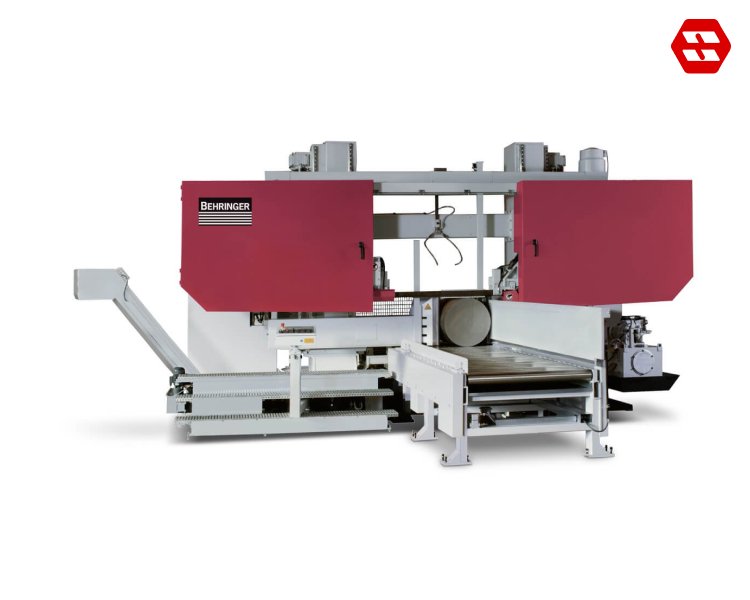

Large Bandsaw HBP1100-1500

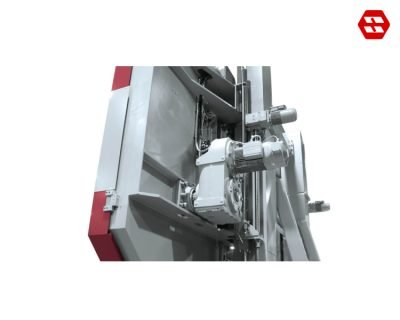

Servo Feed System
Cast Iron Band Guiding Parts
Carbide Blade Guides

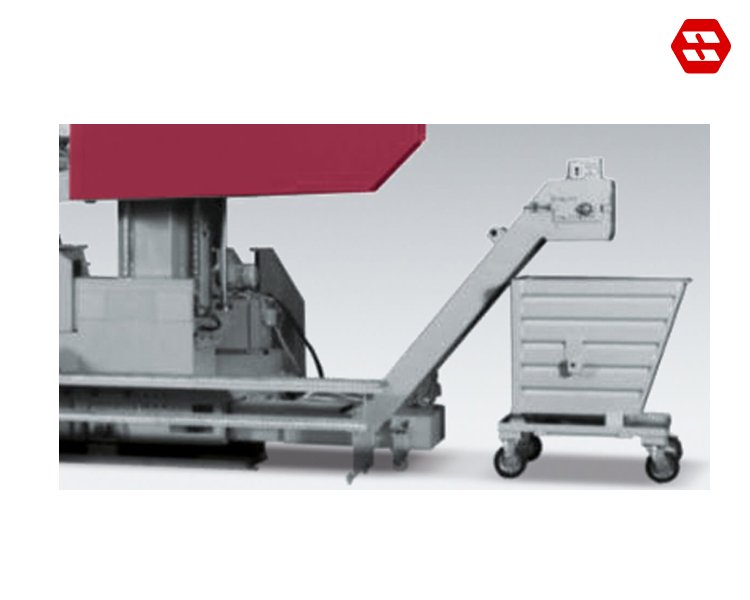

Process-Reliable Chip Disposal by Chain Conveyor

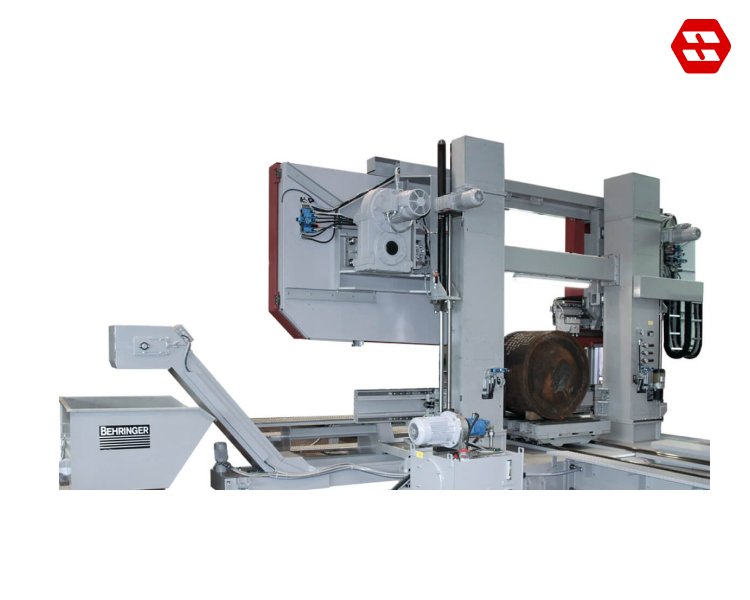

Optimum Accessibility
Duplex Chip Brushes
Features of The Large Bandsaw HBP1100-1500
Technical Data Large Bandsaw HBP1100-1500
| Cutting Range | |
| Cutting range 90° round | 1,100 mm |
| Cutting range 90° flat | 1,500 x 1,100 mm |
| Smallest dimension to be sawn round | 400 mm |
| Smallest dimension to be sawn flat | 400 x 200 mm |
| Performance Characteristics | |
| Drive power | 15 kW |
| Blade speed | 8 – 84 m/min |
| Saw blade dimensions | 13,730 x 80 x 1.6 mm |
| Total power | 30 kW |
| Dimensions and Weight | |
| Length | 3,100 mm |
| Width | 7,800 mm |
| Height | 3,850 mm |
| Weight | 15,000 kg |
| Material support height | 700 mm |
