Mitre Saw SLB230DG-HA
Saw Band Tensioning
Hydraulic Saw Feed

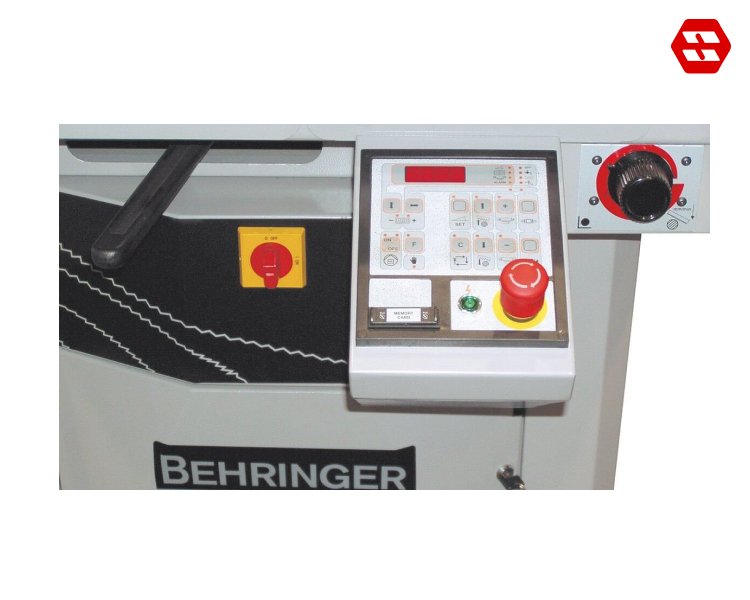

Control Panel
Features of The Mitre Saw SLB230DG-HA
Technical Data Mitre Saw SLB230DG-HA
| Cutting Range | |
| Cutting range 90° round | 240 mm |
| Cutting range 90° flat | 310 x 200 mm |
| Cutting range 90° flat | 270 x 240 mm |
| 45° Miter right round | 175 mm |
| 45° Miter right flat | 170 x 170 mm |
| 45° Miter right upright | 155 x 240 mm |
| 30° Miter right round | 110 mm |
| 30° Miter right flat | 105 x 105 mm |
| 30° Miter right upright | 100 x 140 mm |
| 45° Miter left round | 150 mm |
| 45° Miter left square | 135 x 135 mm |
| 45° Miter left flat | 145 x 125 mm |
| 45° Miter left upright | 65 x 240 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 6 mm |
| Performance Characteristics | |
| Drive power | 1.1 kW |
| Blade speed | 16 – 120 m/min |
| Saw blade dimensions | 2,700 x 27 x 0.9 mm |
| Dimensions and Weight | |
| Length | 1,600 mm |
| Width | 840 mm |
| Height | 1,900 mm |
| Weight | 490 kg |
| Material support height | 990 mm |
