Engineered for precision inspection, the Barlight2 MW provides stable, fixed-angle illumination without dimming adjustments, ensuring consistent lighting conditions during repetitive tasks. The compact lightweight head and optional mounting accessories allow flexible installation as a standalone unit or auxiliary lighting for illuminated magnifiers and other optical inspection equipment systems.

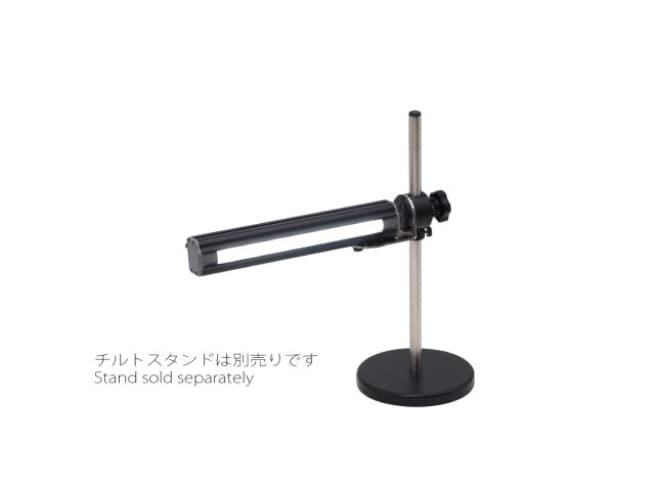

Barlight2 MW Otsuka Optics

The system utilizes seven high-brightness white LEDs to generate uniform planar light that highlights surface irregularities effectively. Designed for indoor industrial applications, it operates with low power consumption while maintaining high illuminance levels. This makes it suitable for semiconductor, coating inspection, precision machining, and electronics manufacturing quality assurance processes.

Features

Planar LED Illumination

Parallel lens and LED structure enhances visibility of scratches, dust, and defects

High Brightness Output

Up to 15,000 lx at 150 mm working distance

Fixed Lighting Conditions

No dimming or beam angle adjustment ensures stable inspection results

Lightweight Design

Compact head (~370 g) improves usability and positioning

Flexible Integration

Can be used standalone or as auxiliary lighting for magnifiers

Spesification

Lighting
Light source	Bright White LED x 7 pcs
Input voltage	100V:50/60 Hz:Plug Type A *The voltage cannot be polarized.
Power consumption	8W
Dimming Function	Not available
Adjustment function for irradiation divergence angle	Not available / fixed

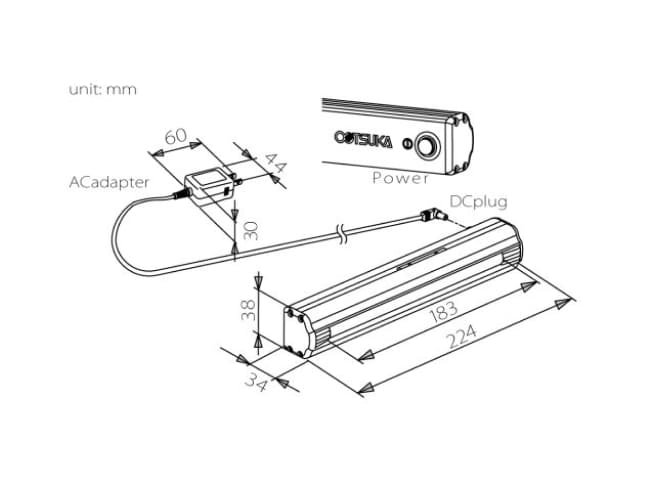

Body
Product weight (Kg)	370g (illuminating head/300g)
Operating temperature range	0℃ ～ 40℃
Dustproof and waterproof protection grade	IP40(Indoor ude only)
