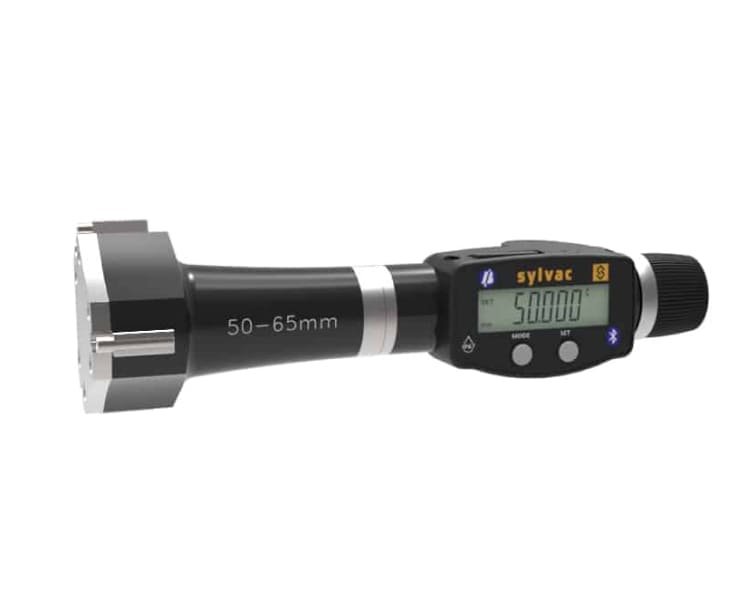

Digital Gauges Xtreme 3 Digital Smart Sylvac

Experience unmatched precision with the Bore Gauges Xtreme 3 Digital Smart Sylvac. Featuring Bluetooth® technology for seamless data transmission, a resolution of 0.001 mm for high accuracy, and a broad measuring range from 2 to 300 mm.

Features

Seamless data acquisition

Our bore gauge is equipped with integrated Bluetooth® technology, allowing you to transmit measurements wirelessly.

Unmatched Accuracy

Display resolution of 0.001 mm with a digit height of 9 mm, providing precise measurements highest metrology standards.

Enhanced Measuring CapabilitiesEnhanced Measuring Capabilities

With a measuring range from 2 to 300mm and blind bore measurement capabilities .

User-Friendly & flexible Design

Interchangeable measuring heads with hard metal 2 points (Ø 2 to 6 mm) and 3 points (from Ø 6 mm) contact points.

Built to Last

This gauge is designed to withstand heavy-duty work with a protection rating of IP67, even when connected.

Complete Package

Each instrument comes with a wooden box containing all the necessary items, calibration rings.

XT3D	950-6006	950-6007	950-6008	950-6009	950-6010
EAN	7640125715217	7640125715200	7640125715194	7640125715187	7640125715170
Type	XT3D BT 1M	XT3D BT 2M	XT3D BT 3M	XT3D BT 4M	XT3D BT 5M
Measuring range (mm)	2 – 2.5	2.5 – 3	3 – 4	4 – 5	5 – 6
Depth (mm)	9		12	18
Max. Error (µm)	4
Ø Incl. ring (mm)	2.5		4.0		5.0

XT3D	950-6011	950-6012	950-6013	950-6014	950-6015
EAN	7640125029031	7640125716719	7640125714890	7640125711820	7640125712797
Type	XT3D BT 6M	XT3D BT 8M	XT3D BT 10M	XT3D BT 12M	XT3D BT 16M
Measuring range (mm)	6 – 8	8 – 10	10 – 12.5	12.5 – 16	16 – 20
Depth (mm)	58			62
Max. Error (µm)	4
Ø Incl. ring (mm)	8.0		12.5	12.5	20.0

XT3D	950-6016	950-6017	950-6018	950-6019	950-6020
EAN	7640125715958	7640125029024	7640125715842	7640125715859	7640125717396
Type	XT3D BT 20M	XT3D BT 25M	XT3D BT 35M	XT3D BT 50M	XT3D BT 65M
Measuring range (mm)	20 – 25	25 – 35	35 – 50	50 – 65	65 – 80
Depth (mm)	66	66	80
Max. Error (µm)	4			5
Ø Incl. ring (mm)	35.0			65.0

XT3D	950-6021	950-6022	950-6023	950-6024	950-6025
EAN	7640125712643	7640125712674	7640125712667	7640125712650	7640125712636
Type	XT3D BT 80M	XT3D BT 100M	XT3D BT 125M	XT3D BT 150M	XT3D BT 175M
Measuring range (mm)	80 – 100	100 – 125	125 – 150	150 – 175	175 – 200
Depth (mm)	100	115
Max. Error (µm)	5	6		7
Ø Incl. ring (mm)	80.0	125.0		175.0

XT3D	950-6026	950-6027	950-6028	950-6029
EAN	7640125712117	7640125712100	7640125712629	7640125712551
Type	XT3D BT 200M	XT3D BT 225M	XT3D BT 250M	XT3D BT 275M
Measuring range (mm)	200 – 225	225 – 250	250 – 275	275 – 300
Depth (mm)	118
Max. Error (µm)	8		9
Ø Incl. ring (mm)	225.0		275.0

XT3DU	951-6001	951-6002	951-6003	951-6004
EAN	7640125714364	7640125714371	7640125714388	7640125714395
Measuring range (mm)	2 – 6	6 – 10	10 – 20	20 – 50
Type	XT3DU BT 2M	XT3DU BT 6M	XT3DU BT 10M	XT3DU BT 20M
Thread	1/4‘‘ x 40 TPI	M5 x 0.5	5/16‘‘ x 40 TPI	5/8‘‘ x 24 TPI

XT3DU	951-6005	951-6006	951-6007
EAN	7640125714401	7640125714418	7640125714425
Measuring range (mm)	50 – 100	100 – 300	200 – 300
Type	XT3DU BT 50M	XT3DU BT 100M	XT3DU BT 200M
Thread	5/8‘‘ x 24 TPI
