Manufactured from solid carbide, the 8600 series delivers excellent hardness and durability for machining steels, stainless steels, titanium alloys, and advanced materials. The optimized geometry ensures smooth, burr-free hole finishing even in treated metals. Designed for high-precision industrial environments, the tool supports consistent dimensional tolerances and reliable performance in demanding machining operations.

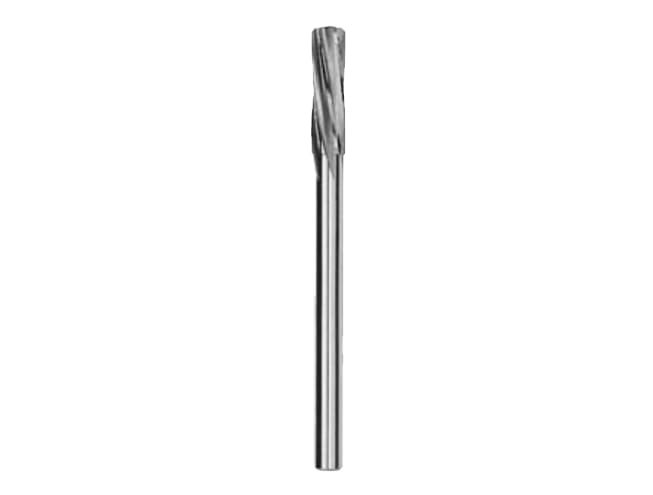

Carbide 8600-Megaforce-38 Magafor

The Megaforce 8600 tools feature a 10° helix angle with multi-flute cutting edges that enable stable cutting and efficient chip evacuation. Their design supports faster machining while maintaining precision tolerances. Suitable for mold making, mechatronics components, and miniature machining industries, they provide dependable accuracy across production cycles and specialized manufacturing processes.

Features

Reinforced shank design

Reduces vibration and improves cutting stability

6-flute geometry

Faster material removal and improved finishing

Left spiral, right-hand cut

Optimized chip evacuation and cutting efficiency

Solid carbide construction

High hardness (~1800 HV) and durability

High precision tolerance

Suitable for finishing cylindrical holes accurately

Spesification

Item #	86000472
D Diameter mm	4.72
D Diameter Inch	.1858″
\1 Flute Length	.827″
L Length	3.15″
\2 Flute Length	2.000″
d2 Shank	.177″
Wire Size	–
Description	6 Flutes, 10° left spiral, right hand cut.

The Magafor 8600 Carbide High Precision Miniature Reamers Selection & Ordering Guide :

Magafor Item	D Diameter mm	D Diameter Inch	\1 Flute Length	L Length
86000060	0.60	0.0236″	.275″	1.30″
86000061	0.61	0.0240″	.275″	1.30″
86000062	0.62	0.0244″	.275″	1.30″
86000063	0.63	0.0248″	.275″	1.30″
86000064	0.64	0.0252″	.275″	1.30″
86000065	0.65	0.0256″	.275″	1.30″
86000066	0.66	0.0260″	.275″	1.30″
86000067	0.67	0.0264″	.275″	1.30″
86000068	0.68	0.0268″	.275″	1.30″
86000069	0.69	0.0272″	.275″	1.30″
86000070	0.70	0.0276″	.275″	1.30″
86000071	0.71	0.0280″	.275″	1.30″
86000072	0.72	0.0283″	.275″	1.30″
86000073	0.73	0.0287″	.275″	1.30″
86000074	0.74	0.0291″	.275″	1.30″
86000075	0.75	0.0295″	.275″	1.30″
86000076	0.76	0.0299″	.275″	1.30″
86000077	0.77	0.0303″	.275″	1.30″
86000078	0.78	0.0307″	.275″	1.30″
86000079	0.79	0.0311″	.275″	1.30″
86000080	0.80	0.0315″	.275″	1.30″
86000081	0.81	0.0319″	.275″	1.30″
86000082	0.82	0.0323″	.275″	1.30″
86000083	0.83	0.0327″	.275″	1.30″
86000084	0.84	0.0331″	.275″	1.30″
86000085	0.85	0.0335″	.275″	1.30″
86000086	0.86	0.0339″	.275″	1.30″
86000087	0.87	0.0343″	.275″	1.30″
86000088	0.88	0.0346″	.275″	1.30″
86000089	0.89	0.0350″	.275″	1.30″
86000090	0.90	0.0354″	.275″	1.30″
86000091	0.91	0.0358″	.275″	1.30″
86000092	0.92	0.0362″	.275″	1.30″
86000093	0.93	0.0366″	.275″	1.30″
86000094	0.94	0.0370″	.275″	1.30″
86000095	0.95	0.0374″	.275″	1.30″
86000096	0.96	0.0378″	.275″	1.30″
86000097	0.97	0.0382″	.275″	1.30″
86000098	0.98	0.0386″	.275″	1.30″
86000099	0.99	0.0390″	.275″	1.30″
86000100	1.00	0.0394″	.275″	1.30″
86000101	1.01	0.0398″	.275″	1.30″
86000102	1.02	0.0402″	.275″	1.30″
86000103	1.03	0.0406″	.275″	1.30″
86000104	1.04	0.0409″	.275″	1.30″
86000105	1.05	0.0413″	.275″	1.30″
86000106	1.06	0.0417″	.393″	1.58″
86000107	1.07	0.0421″	.393″	1.58″
86000108	1.08	0.0425″	.393″	1.58″
86000109	1.09	0.0429″	.393″	1.58″
86000110	1.10	0.0433″	.393″	1.58″
86000111	1.11	0.0437″	.393″	1.58″
86000112	1.12	0.0441″	.393″	1.58″
86000113	1.13	0.0445″	.393″	1.58″
86000114	1.14	0.0449″	.393″	1.58″
86000115	1.15	0.0453″	.393″	1.58″
86000116	1.16	0.0457″	.393″	1.58″
86000117	1.17	0.0461″	.393″	1.58″
86000118	1.18	.0465″	.393″	1.58″
86000119	1.19	.0469″	.393″	1.58″
86000120	1.20	.0472″	.393″	1.58″
86000121	1.21	.0476″	.393″	1.58″
86000122	1.22	.0480″	.393″	1.58″
86000123	1.23	.0484″	.393″	1.58″
86000124	1.24	.0488″	.393″	1.58″
86000125	1.25	.0492″	.393″	1.58″
86000126	1.26	.0496″	.393″	1.58″
86000127	1.27	.0500″	.393″	1.58″
86000128	1.28	.0504″	.393″	1.58″
86000129	1.29	.0508″	.393″	1.58″
86000130	1.30	.0512″	.393″	1.58″
86000131	1.31	.0516″	.393″	1.58″
86000132	1.32	.0520″	.393″	1.58″
86000133	1.33	.0524″	.393″	1.58″
86000134	1.34	.0528″	.393″	1.58″
86000135	1.35	.0531″	.393″	1.58″
86000136	1.36	.0535″	.393″	1.58″
86000137	1.37	.0539″	.393″	1.58″
86000138	1.38	.0543″	.393″	1.58″
86000139	1.39	.0547″	.393″	1.58″
86000140	1.40	.0551″	.393″	1.58″
86000141	1.41	.0555″	.393″	1.58″
86000142	1.42	.0559″	.393″	1.58″
86000143	1.43	.0563″	.393″	1.58″
86000144	1.44	.0567″	.393″	1.58″
86000145	1.45	.0571″	.393″	1.58″
86000146	1.46	.0575″	.393″	1.58″
86000147	1.47	.0579″	.393″	1.58″
86000148	1.48	.0583″	.393″	1.58″
86000149	1.49	.0587″	.393″	1.58″
86000150	1.50	.0590″	.393″	1.58″
86000151	1.51	.0594″	.393″	1.58″
86000152	1.52	.0598″	.393″	1.58″
86000153	1.53	.0602″	.393″	1.58″
86000154	1.54	.0606″	.393″	1.58″
86000155	1.55	.0610″	.393″	1.58″
86000156	1.56	.0614″	.433″	1.97″
86000157	1.57	.0618″	.433″	1.97″
86000158	1.58	.0622″	.433″	1.97″
86000159	1.59	.0626″	.433″	1.97″
86000160	1.60	.0630″	.433″	1.97″
86000161	1.61	.0634″	.433″	1.97″
86000162	1.62	.0638″	.433″	1.97″
86000163	1.63	.0642″	.433″	1.97″
86000164	1.64	.0646″	.433″	1.97″
86000165	1.65	.0650″	.433″	1.97″
86000166	1.66	.0654″	.433″	1.97″
86000167	1.67	.0657″	.433″	1.97″
86000168	1.68	.0661″	.433″	1.97″
86000169	1.69	.0665″	.433″	1.97″
86000170	1.70	.0669″	.433″	1.97″
86000171	1.71	.0673″	.433″	1.97″
86000172	1.72	.0677″	.433″	1.97″
86000173	1.73	.0681″	.433″	1.97″
86000174	1.74	.0685″	.433″	1.97″
86000175	1.75	.0689″	.433″	1.97″
86000176	1.76	.0693″	.433″	1.97″
86000177	1.77	.0697″	.433″	1.97″
86000178	1.78	.0701″	.433″	1.97″
86000179	1.79	.0705″	.433″	1.97″
86000180	1.80	.0709″	.433″	1.97″
86000181	1.81	.0713″	.433″	1.97″
86000182	1.82	.0717″	.433″	1.97″
86000183	1.83	.0720″	.433″	1.97″
86000184	1.84	.0724″	.433″	1.97″
86000185	1.85	.0728″	.433″	1.97″
86000186	1.86	.0732″	.433″	1.97″
86000187	1.87	.0736″	.433″	1.97″
86000188	1.88	.0740″	.433″	1.97″
86000189	1.89	.0744″	.433″	1.97″
86000190	1.90	.0748″	.433″	1.97″
86000191	1.91	.0752″	.433″	1.97″
86000192	1.92	.0756″	.433″	1.97″
86000193	1.93	.0760″	.433″	1.97″
86000194	1.94	.0764″	.433″	1.97″
86000195	1.95	.0768″	.433″	1.97″
86000196	1.96	.0772″	.433″	1.97″
86000197	1.97	.0776″	.433″	1.97″
86000198	1.98	.0780″	.433″	1.97″
86000199	1.99	.0783″	.433″	1.97″
86000200	2.00	.0787″	.433″	1.97″
86000201	2.01	.0791″	.433″	1.97″
86000202	2.02	.0795″	.433″	1.97″
86000203	2.03	.0799″	.433″	1.97″
86000204	2.04	.0803″	.433″	1.97″
86000205	2.05	.0807″	.433″	1.97″
86000206	2.06	.0811″	.433″	1.97″
86000207	2.07	.0815″	.433″	1.97″
86000208	2.08	.0819″	.433″	1.97″
86000209	2.09	.0823″	.433″	1.97″
86000210	2.10	.0827″	.433″	1.97″
86000211	2.11	.0831″	.433″	1.97″
86000212	2.12	.0835″	.433″	1.97″
86000213	2.13	.0839″	.433″	1.97″
86000214	2.14	.0843″	.433″	1.97″
86000215	2.15	.0846″	.433″	1.97″
86000216	2.16	.0850″	.433″	1.97″
86000217	2.17	.0854″	.433″	1.97″
86000218	2.18	.0858″	.433″	1.97″
86000219	2.19	.0862″	.433″	1.97″
86000220	2.20	.0866″	.433″	1.97″
86000221	2.21	.0870″	.433″	1.97″
86000222	2.22	.0874″	.433″	1.97″
86000223	2.23	.0878″	.433″	1.97″
86000224	2.24	.0882″	.433″	1.97″
86000225	2.25	.0886″	.433″	1.97″
86000226	2.26	.0890″	.433″	1.97″
86000227	2.27	.0894″	.433″	1.97″
86000228	2.28	.0898″	.433″	1.97″
86000229	2.29	.0902″	.433″	1.97″
86000230	2.30	.0906″	.433″	1.97″
86000231	2.31	.0909″	.433″	1.97″
86000232	2.32	.0913″	.433″	1.97″
86000233	2.33	.0917″	.433″	1.97″
86000234	2.34	.0921″	.433″	1.97″
86000235	2.35	.0925″	.433″	1.97″
86000236	2.36	.0929″	.433″	1.97″
86000237	2.37	.0933″	.590″	2.25″
86000238	2.38	.0937″	.590″	2.25″
86000239	2.39	.0941″	.590″	2.25″
86000240	2.40	.0945″	.590″	2.25″
86000241	2.41	.0949″	.590″	2.25″
86000242	2.42	.0953″	.590″	2.25″
86000243	2.43	.0957″	.590″	2.25″
86000244	2.44	.0961″	.590″	2.25″
86000245	2.45	.0965″	.590″	2.25″
86000246	2.46	.0969″	.590″	2.25″
86000247	2.47	.0972″	.590″	2.25″
86000248	2.48	.0976″	.590″	2.25″
86000249	2.49	.0980″	.590″	2.25″
86000250	2.50	.0984″	.590″	2.25″
86000251	2.51	.0988″	.590″	2.25″
86000252	2.52	.0992″	.590″	2.25″
86000253	2.53	.0996″	.590″	2.25″
86000254	2.54	.1000″	.590″	2.25″
86000255	2.55	.1004″	.590″	2.25″
86000256	2.56	.1008″	.590″	2.25″
86000257	2.57	.1012″	.590″	2.25″
86000258	2.58	.1016″	.590″	2.25″
86000259	2.59	.1020″	.590″	2.25″
86000260	2.60	.1024″	.590″	2.25″
86000261	2.61	.1028″	.590″	2.25″
86000262	2.62	.1031″	.590″	2.25″
86000263	2.63	.1035″	.590″	2.25″
86000264	2.64	.1039″	.590″	2.25″
86000265	2.65	.1043″	.590″	2.25″
86000266	2.66	.1047″	.590″	2.25″
86000267	2.67	.1051″	.590″	2.25″
86000268	2.68	.1055″	.590″	2.25″
86000269	2.69	.1059″	.590″	2.25″
86000270	2.70	.1063″	.590″	2.25″
86000271	2.71	.1067″	.590″	2.25″
86000272	2.72	.1071″	.590″	2.25″
86000273	2.73	.1075″	.590″	2.25″
86000274	2.74	.1079″	.590″	2.25″
86000275	2.75	.1083″	.590″	2.25″
86000276	2.76	.1087″	.590″	2.25″
86000277	2.77	.1091″	.590″	2.25″
86000278	2.78	.1094″	.590″	2.25″
86000279	2.79	.1098″	.590″	2.25″
86000280	2.80	.1102″	.590″	2.25″
86000281	2.81	.1106″	.590″	2.25″
86000282	2.82	.1110″	.590″	2.25″
86000283	2.83	.1114″	.590″	2.25″
86000284	2.84	.1118″	.590″	2.25″
86000285	2.85	.1122″	.590″	2.25″
86000286	2.86	.1126″	.590″	2.25″
86000287	2.87	.1130″	.590″	2.25″
86000288	2.88	.1134″	.590″	2.25″
86000289	2.89	.1138″	.590″	2.25″
86000290	2.90	.1142″	.590″	2.25″
86000291	2.91	.1146″	.590″	2.25″
86000292	2.92	.1150″	.590″	2.25″
86000293	2.93	.1154″	.590″	2.25″
86000294	2.94	.1157″	.590″	2.25″
86000295	2.95	.1161″	.590″	2.25″
86000296	2.96	.1165″	.590″	2.25″
86000297	2.97	.1169″	.590″	2.25″
86000298	2.98	.1173″	.590″	2.25″
86000299	2.99	.1177″	.590″	2.25″
86000300	3.00	.1181″	.590″	2.25″
86000301	3.01	.1185″	.590″	2.25″
86000302	3.02	.1189″	.590″	2.25″
86000303	3.03	.1193″	.590″	2.25″
86000304	3.04	.1197″	.590″	2.25″
86000305	3.05	.1201″	.590″	2.25″
86000306	3.06	.1205″	.590″	2.25″
86000307	3.07	.1209″	.590″	2.25″
86000308	3.08	.1213″	.590″	2.25″
86000309	3.09	.1217″	.590″	2.25″
86000310	3.10	.1220″	.590″	2.25″
86000311	3.11	.1224″	.590″	2.25″
86000312	3.12	.1228″	.590″	2.25″
86000313	3.13	.1232″	.590″	2.25″
86000314	3.14	.1236″	.590″	2.25″
86000315	3.15	.1240″	.590″	2.25″
86000316	3.16	.1244″	.590″	2.25″
86000317	3.17	.1248″	.590″	2.25″
86000318	3.18	.1252″	.590″	2.25″
86000319	3.19	.1256″	.590″	2.25″
86000320	3.20	.1260″	.590″	2.25″
86000321	3.21	.1264″	.590″	2.25″
86000322	3.22	.1268″	.590″	2.25″
86000323	3.23	.1272″	.590″	2.25″
86000324	3.24	.1276″	.590″	2.25″
86000325	3.25	.1280″	.590″	2.25″
86000326	3.26	.1283″	.590″	2.25″
86000327	3.27	.1287″	.590″	2.25″
86000328	3.28	.1291″	.590″	2.25″
86000329	3.29	.1295″	.590″	2.25″
86000330	3.30	.1299″	.590″	2.25″
86000331	3.31	.1303″	.590″	2.25″
86000332	3.32	.1308″	.590″	2.25″
86000333	3.33	.1311″	.590″	2.25″
86000334	3.34	.1315″	.590″	2.25″
86000335	3.35	.1319″	.590″	2.25″
86000336	3.36	.1323″	.590″	2.25″
86000337	3.37	.1327″	.590″	2.25″
86000338	3.38	.1331″	.590″	2.25″
86000339	3.39	.1335″	.590″	2.25″
86000340	3.40	.1339″	.590″	2.25″
86000341	3.41	.1343″	.590″	2.25″
86000342	3.42	.1346″	.590″	2.25″
86000343	3.43	.1350″	.590″	2.25″
86000344	3.44	.1354″	.590″	2.25″
86000345	3.45	.1358″	.590″	2.25″
86000346	3.46	.1362″	.590″	2.25″
86000347	3.47	.1366″	.590″	2.25″
86000348	3.48	.1370″	.590″	2.25″
86000349	3.49	.1374″	.590″	2.25″
86000350	3.50	.1378″	.590″	2.25″
86000351	3.51	.1382″	.590″	2.25″
86000352	3.52	.1386″	.590″	2.25″
86000353	3.53	.1390″	.590″	2.25″
86000354	3.54	.1394″	.590″	2.25″
86000355	3.55	.1398″	.590″	2.25″
86000356	3.56	.1402″	.590″	2.25″
86000357	3.57	.1406″	.590″	2.25″
86000358	3.58	.1409″	.590″	2.25″
86000359	3.59	.1413″	.590″	2.25″
86000360	3.60	.1417″	.590″	2.25″
86000361	3.61	.1421″	.590″	2.25″
86000362	3.62	.1425″	.590″	2.25″
86000363	3.63	.1429″	.590″	2.25″
86000364	3.64	.1433″	.590″	2.25″
86000365	3.65	.1437″	.590″	2.25″
86000366	3.66	.1441″	.590″	2.25″
86000367	3.67	.1445″	.590″	2.25″
86000368	3.68	.1449″	.590″	2.25″
86000369	3.69	.1453″	.590″	2.25″
86000370	3.70	.1457″	.590″	2.25″
86000371	3.71	.1461″	.590″	2.25″
86000372	3.72	.1465″	.590″	2.25″
86000373	3.73	.1469″	.590″	2.25″
86000374	3.74	.1472″	.590″	2.25″
86000375	3.75	.1476″	.590″	2.25″
86000376	3.76	.1480″	.748″	2.95″
86000377	3.77	.1484″	.748″	2.95″
86000378	3.78	.1488″	.748″	2.95″
86000379	3.79	.1492″	.748″	2.95″
86000380	3.80	.1496″	.748″	2.95″
86000381	3.81	.1500″	.748″	2.95″
86000382	3.82	.1504″	.748″	2.95″
86000383	3.83	.1508″	.748″	2.95″
86000384	3.84	.1512″	.748″	2.95″
86000385	3.85	.1516″	.748″	2.95″
86000386	3.86	.1520″	.748″	2.95″
86000387	3.87	.1524″	.748″	2.95″
86000388	3.88	.1528″	.748″	2.95″
86000389	3.89	.1531″	.748″	2.95″
86000390	3.90	.1535″	.748″	2.95″
86000391	3.91	.1539″	.748″	2.95″
86000392	3.92	.1543″	.748″	2.95″
86000393	3.93	.1547″	.748″	2.95″
86000394	3.94	.1551″	.748″	2.95″
86000395	3.95	.1555″	.748″	2.95″
86000396	3.96	.1559″	.748″	2.95″
86000397	3.97	.1563″	.748″	2.95″
86000398	3.98	.1567″	.748″	2.95″
86000399	3.99	.1571″	.748″	2.95″
86000400	4.00	.1575″	.748″	2.95″
86000401	4.01	.1579″	.748″	2.95″
86000402	4.02	.1583″	.748″	2.95″
86000403	4.03	.1587″	.748″	2.95″
86000404	4.04	.1591″	.748″	2.95″
86000405	4.05	.1594″	.748″	2.95″
86000406	4.06	.1598″	.748″	2.95″
86000407	4.07	.1602″	.748″	2.95″
86000408	4.08	.1606″	.748″	2.95″
86000409	4.09	.1610″	.748″	2.95″
86000410	4.10	.1614″	.748″	2.95″
86000411	4.11	.1618″	.748″	2.95″
86000412	4.12	.1622″	.748″	2.95″
86000413	4.13	.1626″	.748″	2.95″
86000414	4.14	.1630″	.748″	2.95″
86000415	4.15	.1634″	.748″	2.95″
86000416	4.16	.1638″	.748″	2.95″
86000417	4.17	.1642″	.748″	2.95″
86000418	4.18	.1646″	.748″	2.95″
86000419	4.19	.1650″	.748″	2.95″
86000420	4.20	.1654″	.748″	2.95″
86000421	4.21	.1657″	.748″	2.95″
86000422	4.22	.1661″	.748″	2.95″
86000423	4.23	.1665″	.748″	2.95″
86000424	4.24	.1669″	.748″	2.95″
86000425	4.25	.1673″	.748″	2.95″
86000426	4.26	.1677″	.827″	3.15″
86000427	4.27	.1681″	.827″	3.15″
86000428	4.28	.1685″	.827″	3.15″
86000429	4.29	.1689″	.827″	3.15″
86000430	4.30	.1693″	.827″	3.15″
86000431	4.31	.1697″	.827″	3.15″
86000432	4.32	.1701″	.827″	3.15″
86000433	4.33	.1705″	.827″	3.15″
86000434	4.34	.1709″	.827″	3.15″
86000435	4.35	.1713″	.827″	3.15″
86000436	4.36	.1717″	.827″	3.15″
86000437	4.37	.172″	.827″	3.15″
86000438	4.38	.1724″	.827″	3.15″
86000439	4.39	.1728″	.827″	3.15″
86000440	4.40	.1732″	.827″	3.15″
86000441	4.41	.1736″	.827″	3.15″
86000442	4.42	.174″	.827″	3.15″
86000443	4.43	.1744″	.827″	3.15″
86000444	4.44	.1748″	.827″	3.15″
86000445	4.45	.1752″	.827″	3.15″
86000446	4.46	.1756″	.827″	3.15″
86000447	4.47	.176″	.827″	3.15″
86000448	4.48	.1764″	.827″	3.15″
86000449	4.49	.1768″	.827″	3.15″
86000450	4.50	.1772″	.827″	3.15″
86000451	4.51	.1776″	.827″	3.15″
86000452	4.52	.178″	.827″	3.15″
86000453	4.53	.1783″	.827″	3.15″
86000454	4.54	.1787″	.827″	3.15″
86000455	4.55	.1791″	.827″	3.15″
86000456	4.56	.1795″	.827″	3.15″
86000457	4.57	.1799″	.827″	3.15″
86000458	4.58	.1803″	.827″	3.15″
86000459	4.59	.1807″	.827″	3.15″
86000460	4.60	.1811″	.827″	3.15″
86000461	4.61	.1815″	.827″	3.15″
86000462	4.62	.1819″	.827″	3.15″
86000463	4.63	.1823″	.827″	3.15″
86000464	4.64	.1827″	.827″	3.15″
86000465	4.65	.1831″	.827″	3.15″
86000466	4.66	.1835″	.827″	3.15″
86000467	4.67	.1839″	.827″	3.15″
86000468	4.68	.1843″	.827″	3.15″
86000469	4.69	.1846″	.827″	3.15″
86000470	4.70	.185″	.827″	3.15″
86000471	4.71	.1854″	.827″	3.15″
86000472	4.72	.1858″	.827″	3.15″
86000473	4.73	.1862″	.827″	3.15″
86000474	4.74	.1866″	.827″	3.15″
86000475	4.75	.187″	.827″	3.15″
86000476	4.76	.1874″	.906″	3.39″
86000477	4.77	.1878″	.906″	3.39″
86000478	4.78	.1882″	.906″	3.39″
86000479	4.79	.1886″	.906″	3.39″
86000480	4.80	.189″	.906″	3.39″
86000481	4.81	.1984″	.906″	3.39″
86000482	4.82	.1898″	.906″	3.39″
86000483	4.83	.1902″	.906″	3.39″
86000484	4.84	.1906″	.906″	3.39″
86000485	4.85	.1909″	.906″	3.39″
86000486	4.86	.1913″	.906″	3.39″
86000487	4.87	.1917″	.906″	3.39″
86000488	4.88	.1921″	.906″	3.39″
86000489	4.89	.1925″	.906″	3.39″
86000490	4.90	.1929″	.906″	3.39″
86000491	4.91	.1933″	.906″	3.39″
86000492	4.92	.1937″	.906″	3.39″
86000493	4.93	.1941″	.906″	3.39″
86000494	4.94	.1945″	.906″	3.39″
86000495	4.95	.1949″	.906″	3.39″
86000496	4.96	.1953″	.906″	3.39″
86000497	4.97	.1957″	.906″	3.39″
86000498	4.98	.1961″	.906″	3.39″
86000499	4.99	.1965″	.906″	3.39″
86000500	5.00	.1969″	.906″	3.39″
86000501	5.01	.1972″	.906″	3.39″
86000502	5.02	.1976″	.906″	3.39″
86000503	5.03	.198″	.906″	3.39″
86000504	5.04	.1984″	.906″	3.39″
86000505	5.05	.1988″	.906″	3.39″
86000506	5.06	.1992″	.906″	3.39″
86000507	5.07	.1996″	.906″	3.39″
86000508	5.08	.2″	.906″	3.39″
86000509	5.09	.2004″	.906″	3.39″
86000510	5.10	.2008″	.906″	3.39″
86000511	5.11	.2012″	.906″	3.39″
86000512	5.12	.2016″	.906″	3.39″
86000513	5.13	.202″	.906″	3.39″
86000514	5.14	.2024″	.906″	3.39″
86000515	5.15	.2028″	.906″	3.39″
86000516	5.16	.2031″	.906″	3.39″
86000517	5.17	.2035″	.906″	3.39″
86000518	5.18	.2039″	.906″	3.39″
86000519	5.19	.2043″	.906″	3.39″
86000520	5.20	.2047″	.906″	3.39″
86000521	5.21	.2051″	.906″	3.39″
86000522	5.22	.2055″	.906″	3.39″
86000523	5.23	.2059″	.906″	3.39″
86000524	5.24	.2063″	.906″	3.39″
86000525	5.25	.2067″	.906″	3.39″
86000526	5.26	.2071″	.906″	3.39″
86000527	5.27	.2075″	.906″	3.39″
86000528	5.28	.2079″	.906″	3.39″
86000529	5.29	.2083″	.906″	3.39″
86000530	5.30	.2087″	.906″	3.39″
86000531	5.31	.2091″	1.024″	3.66″
86000532	5.32	.2094″	1.024″	3.66″
86000533	5.33	.2098″	1.024″	3.66″
86000534	5.34	.2102″	1.024″	3.66″
86000535	5.35	.2106″	1.024″	3.66″
86000536	5.36	.211″	1.024″	3.66″
86000537	5.37	.2114″	1.024″	3.66″
86000538	5.38	.2118″	1.024″	3.66″
86000539	5.39	.2122″	1.024″	3.66″
86000540	5.40	.2126″	1.024″	3.66″
86000541	5.41	.213″	1.024″	3.66″
86000542	5.42	.2134″	1.024″	3.66″
86000543	5.43	.2138″	1.024″	3.66″
86000544	5.44	.2142″	1.024″	3.66″
86000545	5.45	.2146″	1.024″	3.66″
86000546	5.46	.215″	1.024″	3.66″
86000547	5.47	.2154″	1.024″	3.66″
86000548	5.48	.2158″	1.024″	3.66″
86000549	5.49	.2161″	1.024″	3.66″
86000550	5.50	.2165″	1.024″	3.66″
86000551	5.51	.2169″	1.024″	3.66″
86000552	5.52	.2173″	1.024″	3.66″
86000553	5.53	.2177″	1.024″	3.66″
86000554	5.54	.2181″	1.024″	3.66″
86000555	5.55	.2185″	1.024″	3.66″
86000556	5.56	.2189″	1.024″	3.66″
86000557	5.57	.2193″	1.024″	3.66″
86000558	5.58	.2197″	1.024″	3.66″
86000559	5.59	.2201″	1.024″	3.66″
86000560	5.60	.2205″	1.024″	3.66″
86000561	5.61	.2209″	1.024″	3.66″
86000562	5.62	.2213″	1.024″	3.66″
86000563	5.63	.2217″	1.024″	3.66″
86000564	5.64	.222″	1.024″	3.66″
86000565	5.65	.2224″	1.024″	3.66″
86000566	5.66	.2228″	1.024″	3.66″
86000567	5.67	.2232″	1.024″	3.66″
86000568	5.68	.2236″	1.024″	3.66″
86000569	5.69	.224″	1.024″	3.66″
86000570	5.70	.2244″	1.024″	3.66″
86000571	5.71	.2248″	1.024″	3.66″
86000572	5.72	.2252″	1.024″	3.66″
86000573	5.73	.2256″	1.024″	3.66″
86000574	5.74	.226″	1.024″	3.66″
86000575	5.75	.2264″	1.024″	3.66″
86000576	5.76	.2268″	1.024″	3.66″
86000577	5.77	.2272″	1.024″	3.66″
86000578	5.78	.2276″	1.024″	3.66″
86000579	5.79	.228″	1.024″	3.66″
86000580	5.80	.2284″	1.024″	3.66″
86000581	5.81	.2288″	1.024″	3.66″
86000582	5.82	.2291″	1.100″	3.975″
86000583	5.83	.2295″	1.100″	3.975″
86000584	5.84	.2299″	1.100″	3.975″
86000585	5.85	.2303″	1.100″	3.975″
86000586	5.86	.2307″	1.100″	3.975″
86000587	5.87	.2311″	1.100″	3.975″
86000588	5.88	.2315″	1.100″	3.975″
86000589	5.89	.2319″	1.100″	3.975″
86000590	5.90	.2323″	1.100″	3.975″
86000591	5.91	.2327″	1.100″	3.975″
86000592	5.92	.2331″	1.100″	3.975″
86000593	5.93	.2335″	1.100″	3.975″
86000594	5.94	.2339″	1.100″	3.975″
86000595	5.95	.2343″	1.100″	3.975″
86000596	5.96	.2347″	1.100″	3.975″
86000597	5.97	.235″	1.100″	3.975″
86000598	5.98	.2354″	1.100″	3.975″
86000599	5.99	.2358″	1.100″	3.975″
86000600	6.00	.2362″	1.100″	3.975″
86000601	6.01	.2366″	1.100″	3.975″
86000602	6.02	.237″	1.100″	3.975″
86000603	6.03	.2374″	1.100″	3.975″
86000604	6.04	.2378″	1.100″	3.975″
86000605	6.05	.2382″	1.100″	3.975″
86000606	6.06	.2386″	1.100″	3.975″
86000607	6.07	.239″	1.100″	3.975″
86000608	6.08	.2394″	1.100″	3.975″
86000609	6.09	.2398″	1.100″	3.975″
86000610	6.10	.2402″	1.100″	3.975″
86000611	6.11	.2406″	1.100″	3.975″
86000612	6.12	.241″	1.100″	3.975″
86000613	6.13	.2413″	1.100″	3.975″
86000614	6.14	.2417″	1.100″	3.975″
86000615	6.15	.2421″	1.100″	3.975″
86000616	6.16	.2425″	1.100″	3.975″
86000617	6.17	.2429″	1.100″	3.975″
86000618	6.18	.2433″	1.100″	3.975″
86000619	6.19	.2437″	1.100″	3.975″
86000620	6.20	.2441″	1.100″	3.975″
86000621	6.21	.2445″	1.100″	3.975″
86000622	6.22	.2449″	1.100″	3.975″
86000623	6.23	.2453″	1.100″	3.975″
86000624	6.24	.2457″	1.100″	3.975″
86000625	6.25	.2461″	1.100″	3.975″
86000626	6.26	.2465″	1.100″	3.975″
86000627	6.27	.2468″	1.100″	3.975″
86000628	6.28	.2472″	1.100″	3.975″
86000629	6.29	.2476″	1.100″	3.975″
86000630	6.30	.248″	1.100″	3.975″
86000631	6.31	.2484″	1.100″	3.975″
86000632	6.32	.2488″	1.100″	3.975″
86000633	6.33	.2492″	1.100″	3.975″
86000634	6.34	.2496″	1.100″	3.975″
86000635	6.35	.25″	1.100″	3.975″
86000636	6.36	.2504″	1.100″	3.975″
86000637	6.37	.2508″	1.100″	3.975″
86000638	6.38	.2512″	1.100″	3.975″
86000639	6.39	.2517″	1.100″	3.975″
86000640	6.40	.2520″	1.100″	3.975
86000641	6.41	.2524″	1.100″	3.975
86000642	6.42	.2528″	1.100″	3.975
86000643	6.43	.2531″	1.100″	3.975
86000644	6.44	.2535″	1.100″	3.975
86000645	6.45	.2539″	1.100″	3.975
86000646	6.46	.2543″	1.100″	3.975
86000647	6.47	.2547″	1.100″	3.975
86000649	6.49	.2555″	1.100″	3.975
86000650	6.50	.2559″	1.100″	3.975
86000651	6.51	.2563″	1.100″	3.975
86000652	6.52	.2567″	1.100″	3.975
86000653	6.53	.2571″	1.100″	3.975
86000654	6.54	.2575″	1.100″	3.975
86000655	6.55	.2579″	1.100″	3.975
86000656	6.56	.2583″	1.100″	3.975
86000657	6.57	.2587″	1.100″	3.975
86000658	6.58	.2591″	1.100″	3.975
86000659	6.59	.2594″	1.100″	3.975
86000660	6.60	.2598″	1.100″	3.975
86000661	6.61	.2602″	1.100″	3.975
86000662	6.62	.2606″	1.100″	3.975
86000663	6.63	.2610″	1.100″	3.975
86000664	6.64	.2614″	1.100″	3.975
86000665	6.65	.2618″	1.100″	3.975
86000666	6.66	.2622″	1.100″	3.975
86000667	6.67	.2626″	1.100″	3.975
86000668	6.68	.2630″	1.100″	3.975
86000669	6.69	.2634″	1.100″	3.975
86000670	6.70	.2638″	1.100″	3.975
86000671	6.71	.2642″	1.220″	4.29
86000672	6.72	.2646″	1.220″	4.29
86000673	6.73	.2650″	1.220″	4.29
86000674	6.74	.2654″	1.220″	4.29
86000675	6.75	.2657″	1.220″	4.29
86000676	6.76	.2661″	1.220″	4.29
86000677	6.77	.2665″	1.220″	4.29
86000678	6.78	.2669″	1.220″	4.29
86000679	6.79	.2673″	1.220″	4.29
86000680	6.80	.2677″	1.220″	4.29
86000681	6.81	.2681″	1.220″	4.29
86000682	6.82	.2685″	1.220″	4.29
86000683	6.83	.2689″	1.220″	4.29
86000684	6.84	.2693″	1.220″	4.29
86000685	6.85	.2697″	1.220″	4.29
86000686	6.86	.2701″	1.220″	4.29
86000687	6.87	.2705″	1.220″	4.29
86000688	6.88	.2709″	1.220″	4.29
86000689	6.89	.2713″	1.220″	4.29
86000690	6.90	.2717″	1.220″	4.29
86000691	6.91	.2720″	1.220″	4.29
86000692	6.92	.2724″	1.220″	4.29
86000693	6.93	.2728″	1.220″	4.29
86000694	6.94	.2732″	1.220″	4.29
86000695	6.95	.2736″	1.220″	4.29
86000696	6.96	.2740″	1.220″	4.29
86000697	6.97	.2744″	1.220″	4.29
86000698	6.98	.2748″	1.220″	4.29
86000699	6.99	.2752″	1.220″	4.29
86000700	7.00	.2756″	1.220″	4.29
86000701	7.01	.2760″	1.220″	4.29
86000702	7.02	.2764″	1.220″	4.29
86000703	7.03	.2768″	1.220″	4.29
86000704	7.04	.2772″	1.220″	4.29
86000705	7.05	.2776″	1.220″	4.29
86000706	7.06	.2780″	1.220″	4.29
86000707	7.07	.2783″	1.220″	4.29
86000708	7.08	.2787″	1.220″	4.29
86000709	7.09	.2791″	1.220″	4.29
86000710	7.10	.2795″	1.220″	4.29
86000711	7.11	.2799″	1.220″	4.29
86000712	7.12	.2803″	1.220″	4.29
86000713	7.13	.2807″	1.220″	4.29
86000714	7.14	.2811″	1.220″	4.29
86000715	7.15	.2815″	1.220″	4.29
86000716	7.16	.2819″	1.220″	4.29
86000717	7.17	.2823″	1.220″	4.29
86000718	7.18	.2827″	1.220″	4.29
86000719	7.19	.2831″	1.220″	4.29
86000720	7.20	.2835″	1.220″	4.29
86000721	7.21	.2839″	1.220″	4.29
86000722	7.22	.2843″	1.220″	4.29
86000723	7.23	.2846″	1.220″	4.29
86000724	7.24	.2850″	1.220″	4.29
86000725	7.25	.2854″	1.220″	4.29
86000726	7.26	.2858″	1.220″	4.29
86000727	7.27	.2862″	1.220″	4.29
86000728	7.28	.2866″	1.220″	4.29
86000729	7.29	.2870″	1.220″	4.29
86000730	7.30	.2874″	1.220″	4.29
86000731	7.31	.2878″	1.220″	4.29
86000732	7.32	.2882″	1.220″	4.29
86000733	7.33	.2886″	1.220″	4.29
86000734	7.34	.2890″	1.220″	4.29
86000735	7.35	.2894″	1.220″	4.29
86000736	7.36	.2898″	1.220″	4.29
86000737	7.37	.2902″	1.220″	4.29
86000738	7.38	.2906″	1.220″	4.29
86000739	7.39	.2909″	1.220″	4.29
86000740	7.40	.2913″	1.220″	4.29
86000741	7.41	.2917″	1.220″	4.29
86000742	7.42	.2921″	1.220″	4.29
86000743	7.43	.2925″	1.220″	4.29
86000744	7.44	.2929″	1.220″	4.29
86000745	7.45	.2933″	1.220″	4.29
86000746	7.46	.2937″	1.220″	4.29
86000747	7.47	.2941″	1.220″	4.29
86000748	7.48	.2945″	1.220″	4.29
86000749	7.49	.2949″	1.220″	4.29
86000750	7.50	.2953″	1.220″	4.29
86000751	7.51	.2957″	1.220″	4.29
86000752	7.52	.2961″	1.220″	4.29
86000753	7.53	.2965″	1.220″	4.29
86000754	7.54	.2969″	1.220″	4.29
86000755	7.55	.2972″	1.220″	4.29
86000756	7.56	0.2976	1.299″	4.61
86000757	7.57	0.298	1.299″	4.61
86000758	7.58	0.2984	1.299″	4.61
86000759	7.59	0.2988	1.299″	4.61
86000760	7.60	0.2992	1.299″	4.61
86000761	7.61	0.2996	1.299″	4.61
86000762	7.62	0.3	1.299″	4.61
86000763	7.63	0.3004	1.299″	4.61
86000764	7.64	0.3008	1.299″	4.61
86000765	7.65	0.3012	1.299″	4.61
86000766	7.66	0.3016	1.299″	4.61
86000767	7.67	0.302	1.299″	4.61
86000768	7.68	0.3024	1.299″	4.61
86000769	7.69	0.3028	1.299″	4.61
86000770	7.70	0.3031	1.299″	4.61
86000771	7.71	0.3035	1.299″	4.61
86000772	7.72	0.3039	1.299″	4.61
86000773	7.73	0.3043	1.299″	4.61
86000774	7.74	0.3047	1.299″	4.61
86000775	7.75	0.3051	1.299″	4.61
86000776	7.76	0.3055	1.299″	4.61
86000777	7.77	0.3059	1.299″	4.61
86000778	7.78	0.3063	1.299″	4.61
86000779	7.79	0.3067	1.299″	4.61
86000780	7.80	0.3071	1.299″	4.61
86000781	7.81	0.3075	1.299″	4.61
86000782	7.82	0.3079	1.299″	4.61
86000783	7.83	0.3083	1.299″	4.61
86000784	7.84	0.3087	1.299″	4.61
86000785	7.85	0.3091	1.299″	4.61
86000786	7.86	0.3094	1.299″	4.61
86000787	7.87	0.3098	1.299″	4.61
86000788	7.88	0.3102	1.299″	4.61
86000789	7.89	0.3106	1.299″	4.61
86000790	7.90	0.311	1.299″	4.61
86000791	7.91	0.3114	1.299″	4.61
86000792	7.92	0.3118	1.299″	4.61
86000793	7.93	0.3122	1.299″	4.61
86000794	7.94	0.3126	1.299″	4.61
86000795	7.95	0.313	1.299″	4.61
86000796	7.96	0.3134	1.299″	4.61
86000797	7.97	0.3138	1.299″	4.61
86000798	7.98	0.3142	1.299″	4.61
86000799	7.99	0.3146	1.299″	4.61
86000800	8.00	0.315	1.299″	4.61
86000801	8.01	0.3154	1.299″	4.61
86000802	8.02	0.3157	1.299″	4.61
86000803	8.03	0.3161	1.299″	4.61
86000804	8.04	0.3165	1.299″	4.61
86000805	8.05	0.3169	1.299″	4.61
86000806	8.06	0.3173	1.299″	4.61
86000807	8.07	0.3177	1.299″	4.61
86000808	8.08	0.3181	1.299″	4.61
86000809	8.09	0.3185	1.299″	4.61
86000810	8.10	0.3189	1.299″	4.61
86000811	8.11	0.3193	1.299″	4.61
86000812	8.12	.3197″	1.299″	4.610″
86000813	8.13	.3201″	1.299″	4.610″
86000814	8.14	.3205″	1.299″	4.610″
86000815	8.15	.3209″	1.299″	4.610″
86000816	8.16	.3213″	1.299″	4.610″
86000817	8.17	.3217″	1.299″	4.610″
86000818	8.18	.3220″	1.299″	4.610″
86000819	8.19	.3224″	1.299″	4.610″
86000820	8.20	.3228″	1.299″	4.610″
86000821	8.21	.3232″	1.299″	4.610″
86000822	8.22	.3236″	1.299″	4.610″
86000823	8.23	.3240″	1.299″	4.610″
86000824	8.24	.3244″	1.299″	4.610″
86000825	8.25	.3248″	1.299″	4.610″
86000826	8.26	.3252″	1.299″	4.610″
86000827	8.27	.3256″	1.299″	4.610″
86000828	8.28	.3260″	1.299″	4.610″
86000829	8.29	.3264″	1.299″	4.610″
86000830	8.30	.3268″	1.299″	4.610″
86000831	8.31	.3272″	1.299″	4.610″
86000832	8.32	.3276″	1.299″	4.610″
86000833	8.33	.3280″	1.299″	4.610″
86000834	8.34	.3283″	1.299″	4.610″
86000835	8.35	.3287″	1.299″	4.610″
86000836	8.36	.3291″	1.299″	4.610″
86000837	8.37	.3295″	1.299″	4.610″
86000838	8.38	.3299″	1.299″	4.610″
86000839	8.39	.3303″	1.299″	4.610″
86000840	8.40	.3307″	1.299″	4.610″
86000841	8.41	.3311″	1.299″	4.610″
86000842	8.42	.3315″	1.299″	4.610″
86000843	8.43	.3319″	1.299″	4.610″
86000844	8.44	.3323″	1.299″	4.610″
86000845	8.45	.3327″	1.299″	4.610″
86000846	8.46	.3331″	1.299″	4.610″
86000847	8.47	.3335″	1.299″	4.610″
86000848	8.48	.3339″	1.299″	4.610″
86000849	8.49	.3343″	1.299″	4.610″
86000850	8.50	.3346″	1.299″	4.610″
86000851	8.51	.3350″	1.299″	4.610″
86000852	8.52	0.3354	1.299″	4.610″
86000853	8.53	.3358″	1.299″	4.610″
86000854	8.54	0.3362	1.299″	4.610″
86000855	8.55	.3366″	1.299″	4.610″
86000856	8.56	.3370″	1.417″	4.92
86000857	8.57	.3374″	1.417″	4.92
86000858	8.58	.3378″	1.417″	4.92
86000859	8.59	.3382″	1.417″	4.92
86000861	8.61	.3390″	1.417″	4.92
86000862	8.62	.3394″	1.417″	4.92
86000863	8.63	.3398″	1.417″	4.92
86000864	8.64	.3402″	1.417″	4.92
86000865	8.65	.3406″	1.417″	4.92
86000866	8.66	.3409″	1.417″	4.92
86000867	8.67	.3413″	1.417″	4.92
86000868	8.68	.3417″	1.417″	4.92
86000869	8.69	.3421″	1.417″	4.92
86000870	8.70	.3425″	1.417″	4.92
86000871	8.71	.3429″	1.417″	4.92
86000872	8.72	.3433″	1.417″	4.92
86000873	8.73	.3437″	1.417″	4.92
86000874	8.74	.3441″	1.417″	4.92
86000875	8.75	.3445″	1.417″	4.92
86000876	8.76	.3449″	1.417″	4.92
86000877	8.77	.3453″	1.417″	4.92
86000878	8.78	.3457″	1.417″	4.92
86000879	8.79	.3461″	1.417″	4.92
86000880	8.80	.3465″	1.417″	4.92
86000881	8.81	.3469″	1.417″	4.92
86000882	8.82	.3472″	1.417″	4.92
86000883	8.83	.3476″	1.417″	4.92
86000884	8.84	.3480″	1.417″	4.92
86000885	8.85	.3484″	1.417″	4.92
86000886	8.86	.3488″	1.417″	4.92
86000887	8.87	.3492″	1.417″	4.92
86000888	8.88	.3496″	1.417″	4.92
86000889	8.89	.3500″	1.417″	4.92
86000890	8.90	.3504″	1.417″	4.92
86000891	8.91	.3508″	1.417″	4.92
86000892	8.92	.3512″	1.417″	4.92
86000893	8.93	.3516″	1.417″	4.92
86000894	8.94	.3520″	1.417″	4.92
86000895	8.95	.3524″	1.417″	4.92
86000896	8.96	.3528″	1.417″	4.92
86000897	8.97	.3531″	1.417″	4.92
86000898	8.98	.3535″	1.417″	4.92
86000899	8.99	.3539″	1.417″	4.92
86000900	9.00	.3543″	1.417″	4.92
86000901	9.01	.3547″	1.417″	4.92
86000902	9.02	.3551″	1.417″	4.92
86000903	9.03	.3555″	1.417″	4.92
86000904	9.04	.3559″	1.417″	4.92
86000905	9.05	.3563″	1.417″	4.92
86000906	9.06	.3567″	1.417″	4.92
86000907	9.07	.3571″	1.417″	4.92
86000908	9.08	.3575″	1.417″	4.92
86000909	9.09	.3579″	1.417″	4.92
86000910	9.10	.3583″	1.417″	4.92
86000911	9.11	.3587″	1.417″	4.92
86000912	9.12	.3591″	1.417″	4.92
86000913	9.13	.3594″	1.417″	4.92
86000914	9.14	.3598″	1.417″	4.92
86000915	9.15	.3602″	1.417″	4.92
86000916	9.16	.3606″	1.417″	4.92
86000917	9.17	.3610″	1.417″	4.92
86000918	9.18	.3614″	1.417″	4.92
86000919	9.19	.3618″	1.417″	4.92
86000920	9.20	.3622″	1.417″	4.92
86000921	9.21	.3626″	1.417″	4.92
86000922	9.22	.3630″	1.417″	4.92
86000923	9.23	.3634″	1.417″	4.92
86000924	9.24	.3638″	1.417″	4.92
86000925	9.25	.3642″	1.417″	4.92
86000926	9.26	.3646″	1.417″	4.92
86000927	9.27	.3650″	1.417″	4.92
86000928	9.28	.3654″	1.417″	4.92
86000929	9.29	.3657″	1.417″	4.92
86000930	9.30	.3661″	1.417″	4.92
86000931	9.31	.3665″	1.417″	4.92
86000932	9.32	.3669″	1.417″	4.92
86000933	9.33	.3673″	1.417″	4.92
86000934	9.34	.3677″	1.417″	4.92
86000935	9.35	.3681″	1.417″	4.92
86000936	9.36	.3685″	1.417″	4.92
86000937	9.37	.3689″	1.417″	4.92
86000938	9.38	.3693″	1.417″	4.92
86000939	9.39	.3697″	1.417″	4.92
86000940	9.40	.3701″	1.417″	4.92
86000941	9.41	.3705″	1.417″	4.92
86000942	9.42	.3709″	1.417″	4.92
86000943	9.43	.3713″	1.417″	4.92
86000944	9.44	.3717″	1.417″	4.92
86000945	9.45	.3720″	1.417″	4.92
86000946	9.46	.3724″	1.417″	4.92
86000947	9.47	.3728″	1.417″	4.92
86000948	9.48	.3732″	1.417″	4.92
86000949	9.49	.3736″	1.417″	4.92
86000950	9.50	.3740″	1.417″	4.92
86000951	9.51	.3744″	1.417″	4.92
86000952	9.52	.3748″	1.417″	4.92
86000953	9.53	.3752″	1.417″	4.92
86000954	9.54	.3756″	1.417″	4.92
86000955	9.55	.3760″	1.417″	4.92
