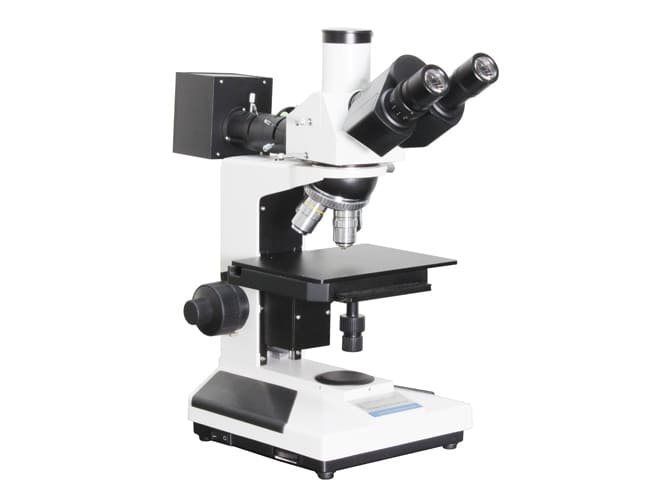

Return To ShopThe Vertimet CP is a vertical metallurgical microscope delivering 100×–1000× magnification with a WF-10× eyepiece and a set of objectives including 10×, 20×, 50×, and 100× oil (plus optional 100× dry). It’s built for sturdy, precise reflected-light imaging, ideal for inspection of metals and alloys in lab or QC settings.
36 people are viewing this product right now
🔥 8 items sold in last 3 hours
For laboratories or production floors doing metallography, the Vertimet CP offers both versatility and clarity. It works across a useful magnification range with optional objective upgrades, and supports imaging (via trinocular port) for documentation. The robust optics and reflectance lighting make it good for inspecting polished surfaces, identifying inclusions or cracks, verifying coatings or layers—all with clarity and repeatability.
Provide a broader field of view, reducing eye strain and making it easier to orient and scan specimens.
The inclusion of oil objectives (100×) improves resolution and clarity for very fine features; optional 100× dry gives flexibility.
Allows simultaneous viewing through eyepieces and attaching a camera for imaging/documentation. Useful for teaching, reporting, or archival work.
Optimized for observing opaque materials like metals, ceramics, coatings—shines light down onto the surface for contrast and microstructure visibility.
Stable square metal stage allows precise sample positioning and movement; helps in repeatability and accurate observations.
| Specification | Detail |
|---|---|
| Eyepieces | Widefield WF-10× |
| Objectives | 10×, 20×, 50×, 100× oil; 100× dry optional |
| Magnification Range | 100× to 1000× standard |
| Head Type | Trinocular, vertical (“Vertimet”, i.e. metallurgical microscope) |
| Illumination | Reflected light (incident illumination) |
| Stage | Mechanical metal stage (square) |
| Application | Metallurgical inspection, quality control, microstructure observations, etc. |
