Chennai Metco Mould Mounting Bainmount - Twin H Auto MPHD007A

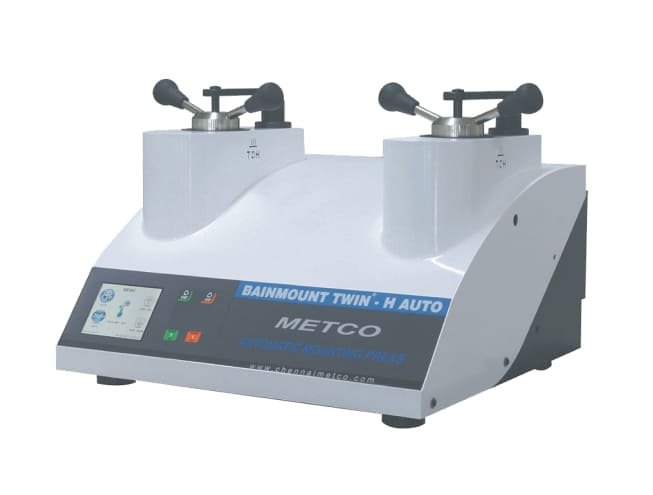

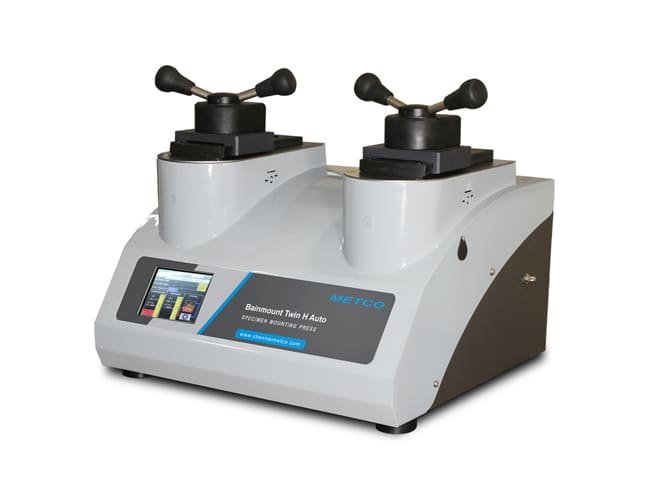

Chennai Metco Mould Mounting Bainmount – Twin H Auto MPHD007A

The Chennai Metco Bainmount Twin H Auto MPHD007A is a dual-chamber hydraulic hot mounting press that holds two moulds simultaneously. It reaches around 200 °C for mounting with phenolic or acrylic resins. With touchscreen LCD controls, timer and temperature indicators, it enhances throughput & consistency for busy labs.

41 people are viewing this product right now

🔥 11 items sold in last 3 hours

Category: Mounting

Brand: Chennai Estimated delivery:June 18, 2026 - June 22, 2026

Description

Designed for high throughput metallography work, the Twin H Auto features two chambers so specimens can be mounted in parallel—useful when different mould sizes or resins are needed (Bakelite, EPO, transparent). It includes a 1600 W heater (single phase), interchangeable mould sizes (1¼”, 1½”, 2″), LCD panel to set parameters, a buzzer timer for heating & cooling cycles, and optional water cooling recirculation. This reduces manual operation and gives better repeatability.

Chennai Metco Mould Mounting Bainmount - Twin H Auto MPHD007A

For labs with frequent sample mounting, the Twin H Auto offers dual-chamber operation, allowing one mould to cool while the other is heating, thereby optimizing workflow. It supports varied mould diameters, runs on single-phase power, and the 1600 W heater gives quick, reliable temperature rise. The user interface via LCD indicator and digital timer helps ensure consistency, while optional water cooling enhances safety and specimen quality.

Features

Dual Chambers

Two separate mould chambers let users mount different samples in parallel (or use different moulds/resins), improving throughput and reducing wait times.

High-Power Heater (1600 W)

1600 W heater ensures rapid heating up to mounting temperature (~200 °C), even with larger moulds, all on single-phase power.

Interchangeable Mould Sizes

Supports mould diameters of 1¼", 1½", and 2", so users can choose mould size to match sample size or resin type.

Digital Controls & Timer

Equipped with LCD panel for temperature display, and timer + buzzer for heating/cooling cycles, enabling more precise and consistent sample mounting.

Optional Water Cooling & Recirculation

Water cooling recirculation system (optional) helps cool moulds safely after heating, reducing cycle time and improving safety.

Overview

Specification	Detail
Product Name	Chennai Metco Mould Mounting Bainmount – Twin H Auto MPHD007A
Heater Power	1600 W, Single-Phase
Dimensions	490 × 620 × 590 mm (W × D × H)
Mould Sizes Supported	1¼”, 1½”, 2″ diameters (interchangeable moulds)
Control Panel	LCD parameter indicator with timer & buzzer for heating/cooling cycles
Working Temperature	Around 200 °C
Cooling System	Optional water cooling recirculation
