Circular Saw Machine Metal-Cutting Cold Saw VMS 400 H BEHRINGER
Mesin gergaji melingkar yang kuat dan dirancang secara presisi, cocok untuk memotong logam. Model ini memiliki daya tahan tinggi, pengoperasian yang efisien, dan kemampuan menghasilkan potongan yang bersih dan bebas duri. Sempurna untuk industri tugas berat, memiliki kombinasi kecepatan dan akurasi, memastikan kinerja pemotongan optimal untuk berbagai jenis dan ketebalan logam.
24 people are viewing this product right now
🔥 12 items sold in last 3 hours

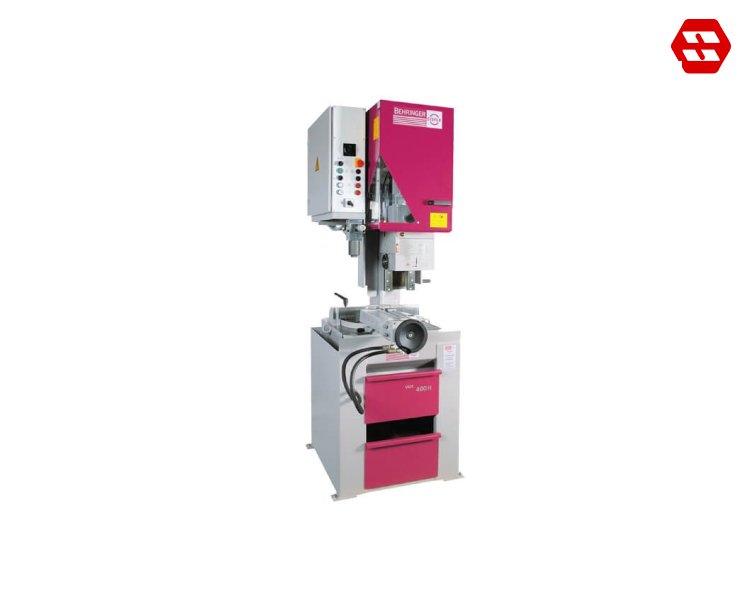

Cold Saw VMS 400 H

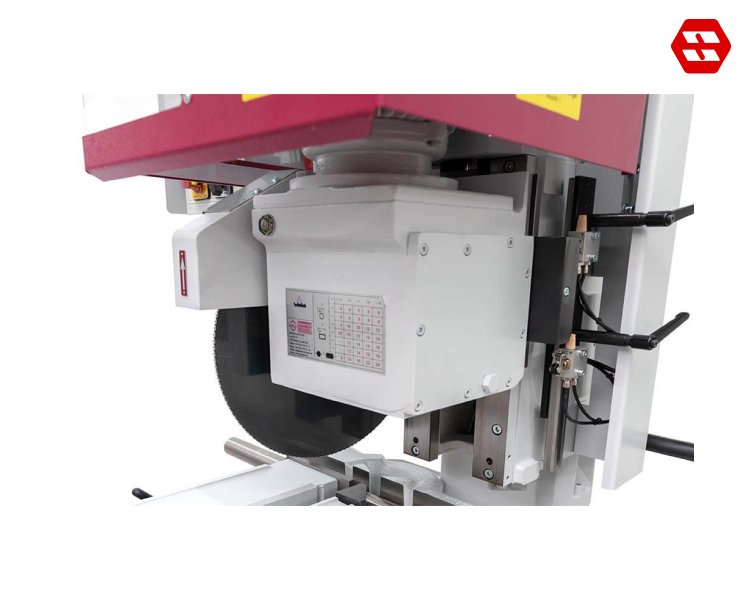

Worm Gearbox From Our Own Production
Hydro-Pneumatic Saw Feed

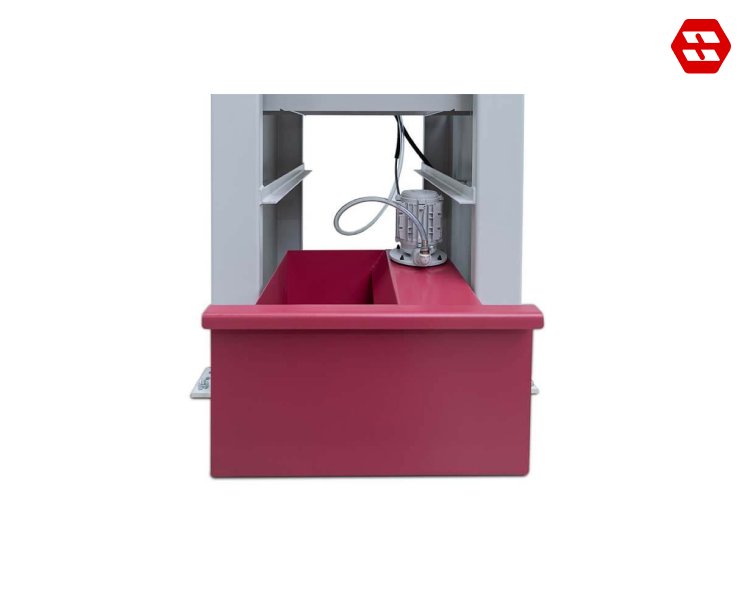

Coolant Device

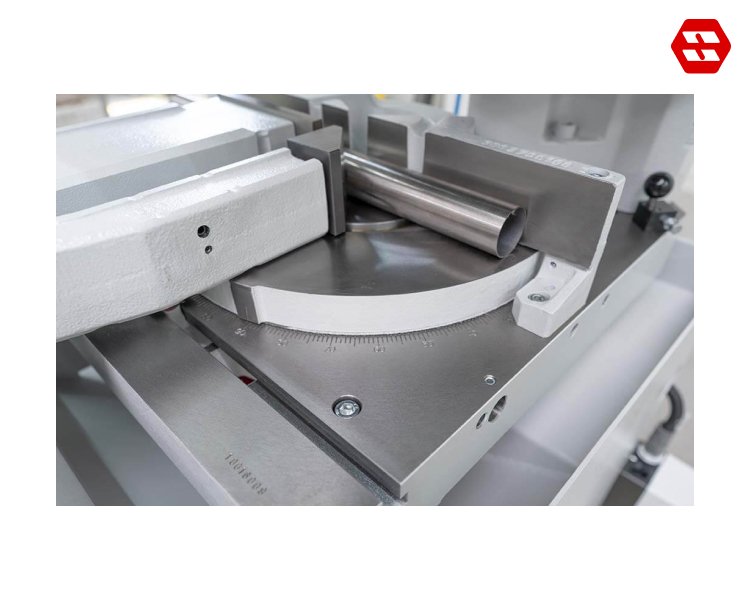

Convenient Mitre Adjustment

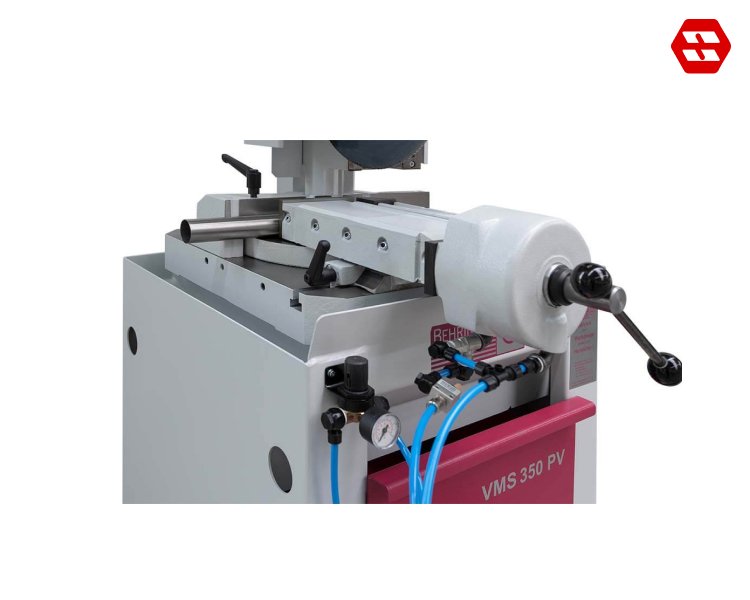

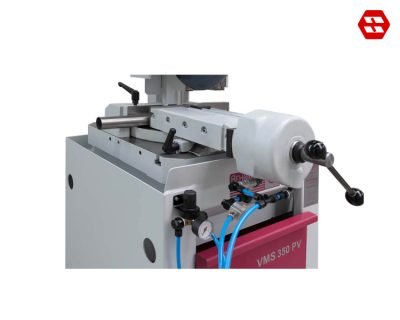

Pneumatic Quick Clamping Device

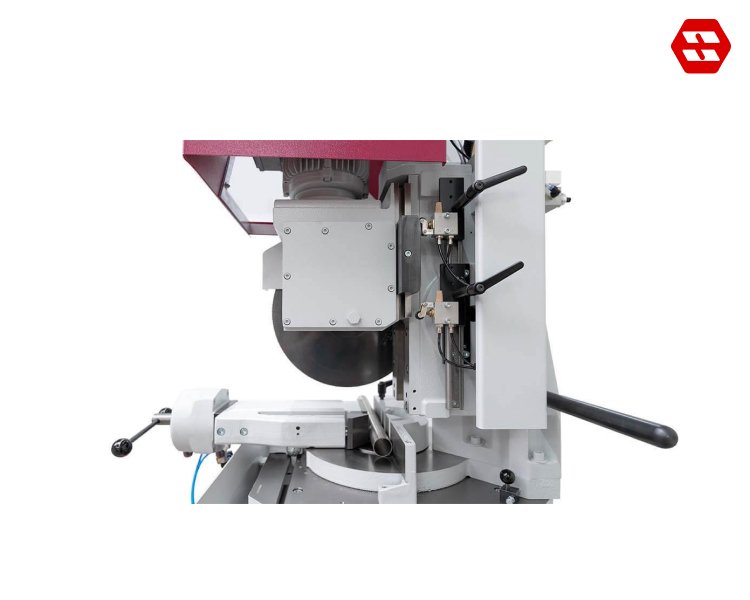

Convenient Stroke Adjustment of The Saw Blade
Features of The Cold Saw VMS 370 PV
Technical Data Cold Saw VMS 400 H
| Cutting Range | |
| Flat 90° | 200 x 100 mm |
| Flat 45° | 140 x 120 mm |
| Flat 30° | 100 x 100 mm 1) |
| Square 90° | 120 mm |
| Square 45° | 120 mm |
| Square 30° | 100 mm 1) |
| Round 90° | 140 mm |
| Round 45° | 140 mm |
| Round 30° | 110 mm 1) |
| Performance Characteristics | |
| Drive power | 2.0 / 2.6 kW |
| RPM standard | 17 / 34 – 34 / 68 min-1 |
| RPM optional | 8 / 16 / 32 / 64 min-1 |
| Saw blade diameter | 400 mm |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Dimensions and Weight | |
| Length | 945 mm |
| Width | 1,500 mm |
| Height | 2,130 mm |
| Weight | 750 kg |
| Material support height | 900 mm |
