Designed for demanding optical observation, the CV-MZ630T offers continuous zoom from low to high magnification and a robust stereo optical system. Its trinocular head supports digital imaging, and the wide working distance simplifies viewing larger or deep specimens under reflected/transmitted illumination.

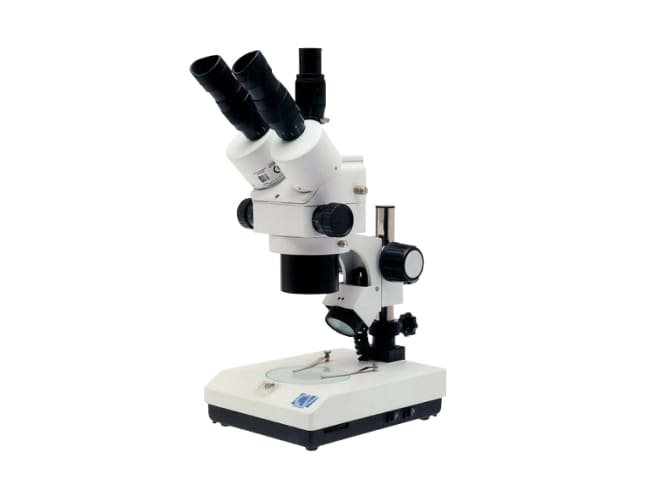

CV Instruments CV-MZ630T Trinocular Stereo Zoom Microscope

Ideal for quality inspection and precision assembly, the CV-MZ630T features a flexible magnification system with optional auxiliary objectives and eyepieces. The inclined binocular tubes ensure ergonomic viewing, while the camera-ready tube facilitates documentation or live imaging during inspection workflows.

Features

Trinocular Stereo Zoom Head

Provides binocular viewing plus a camera port for imaging or recording.

Wide Magnification Range

Standard 7×–45×; optional gear expands up to 225× with auxiliary objectives depending on configuration.

Excellent Zoom Ratio (1:6.5)

Smooth continuous zoom from low to high magnification for adaptable inspection.

Large Working Distance

Long working distance range (40 mm–314 mm) supports observation of large or deep specimens.

Reflected & Transmitted Lighting

Standard illuminators provide versatile viewing for different sample types.

Overview

Specification	Value / Description
Optical Type	Trinocular stereo zoom microscope with camera port.
Total Magnification	7×–45× (standard eyepieces)
Zoom Ratio	1 : 6.5 continuous zoom.
Eyepieces (Standard)	WF10× wide focus.
Optional Eyepieces	WF15×, 20×, 25×.
Auxiliary Objectives (Optional)	0.3×, 0.5×, 0.75×, 1.5×, 2×.
Field of View	33 mm to ~5.1 mm diameter (varies with magnification).
Working Distance (Standard)	108 mm.
Binocular Tube Inclination	45°.
Interpupillary Distance	Adjustable (approx 55 mm–75 mm).
Diopter Adjustment	±5 Diopter.
Illumination	Incident & transmitted halogen illuminators (6 V, 15 W).
Camera Compatibility	C-mount adaptor or photo adapter optional.
Power Requirement	220 V / 50 Hz.
