DeFelsko Digital Multi Thickness Gauge PosiTector 6000 FNDS3

The DeFelsko PosiTector 6000 FNDS3 is an advanced coating thickness gauge designed for duplex coatings (e.g. paint over zinc) on all metal substrates. Using both magnetic and eddy current principles in one reading, it delivers individual paint and zinc layer thicknesses with high accuracy. Ideal for corrosion protection, quality assurance, and industrial inspection.

9 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Coating Thickness Gauge

Brand: Defelsko Estimated delivery:June 15, 2026 - June 17, 2026

Description

Equipped with a rugged Advanced body, the FNDS3 model features a 2.8-inch impact-resistant color touchscreen, fast measurement modes, and storage for up to 250,000 readings. The instrument is ready to measure, IP65 rated, and includes built-in calibration tools—delivering reliable performance even under harsh field conditions.

DeFelsko Digital Multi Thickness Gauge PosiTector 6000 FNDS3

This multi-thickness gauge combines versatility and precision. With duplex mode, real-time statistics, Hi-RES resolution, and wide international standard compliance (ISO, ASTM, SSPC etc.), the PosiTector 6000 FNDS3 supports both routine checks and demanding inspection protocols. Its ergonomic, portable design makes it practical for shop, field, or remote work.

Features

Duplex Mode (Paint + Zinc Thickness)

In one reading, the FNDS3 probe measures the combined paint/zinc layer over ferrous substrate (magnetic method) and paint over zinc (eddy-current method), then computes the zinc layer by subtraction—efficient for duplex systems.

High Accuracy over Range 0-1500 µm (0-60 mils)

Coating range covers up to ~1.5 mm or 60 mils, with tight accuracy tolerances (e.g. ± (0.05 mil +1%) for thin paint layers). Great for both thin and moderately thick coatings.

Large Display & Fast Measuring Speeds

2.8″ impact-resistant color touchscreen plus redesigned keypad; FAST mode allows 90+ readings/minute, Advanced scan modes up to 180+ readings/min. Speeds up inspections significantly.

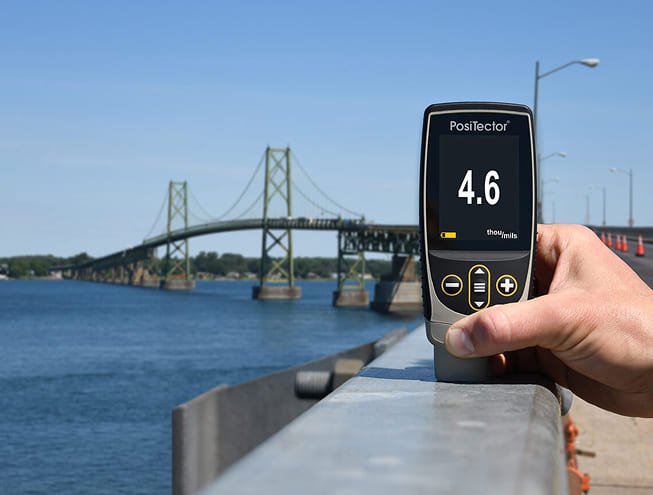

Rugged, Field-Friendly Construction

IP65 enclosure; wear-resistant probe tip; rubberized grip and holster; operates on 3 AAA batteries with long battery life. Built for durability in rough environments.

Extensive Data & Standards Compliance

Stores large number of readings (250,000 in up to 1,000 batches for Advanced version); supports real-time statistics (average, min/max, stdev); includes long-form calibration traceable to NIST/PTB; conforms to many international standards (ISO, ASTM, SSPC, etc.).

Overview

Parameter	Value / Description
Model	DeFelsko PosiTector 6000 FNDS3 (Advanced body, FNDS probe)
Measurement Principle	Magnetic induction (for ferrous substrate + zinc + paint) + Eddy current (for paint over zinc) in Duplex mode
Measuring Range (Coating)	0 – 60 mils ≈ 0 – 1500 µm
Paint Layer Accuracy	± (0.05 mil +1%) for 0-2 mil; ± (0.1 mil +1%) above 2 mil; µm equivalents likewise for 0-50 µm and >50 µm
Zinc Layer Accuracy	± (0.1 mil +1%) in 0.5-2 mil; ± (0.2 mil +1%) above 2 mil; µm equivalents for corresponding ranges
Display	2.8″ impact-resistant color touchscreen; redesigned keypad; flip/rotate display; large, readable UI
Measurement Speed	Standard: 60+ readings/min; Fast mode: ~90+; in Advanced scan modes: up to 180+ readings/min
Data Memory Capacity	Up to 250,000 readings in up to 1,000 groups/sub-batches (Advanced)
Connectivity	USB cable (for data / power); WiFi / Bluetooth on “3” / Advanced models; integration with PosiSoft PC / Mac / Mobile software
Physical Dimensions (Gage Body only)	127 × 66 × 25.4 mm (5.0 × 2.6 × 1.0 in)
Weight	137 g (4.9 oz) without batteries
Power Supply	3 × AAA alkaline batteries; built-in temperature compensation; long battery life (~20+ hours) depending on usage.
Environmental / Durability	IP65 rated; weatherproof, dustproof, water-resistant; wear-resistant probe tip; rubber holster; certified rugged construction.
Calibration	Long-Form Certificate of Calibration traceable to NIST/PTB; multiple calibration adjustments possible (zero, 1-point, 2-point, ISO correction)
Standards Conformance	ISO 2178, 2360, 2808; ISO 19840; ASTM B244, B499, D1186, D1400, D7091, E376; BS3900-C5; SSPC-PA2; others
