DeFelsko PosiTest LPD Low Voltage Pinhole Detector

DeFelsko PosiTest LPD Low Voltage Pinhole Detector

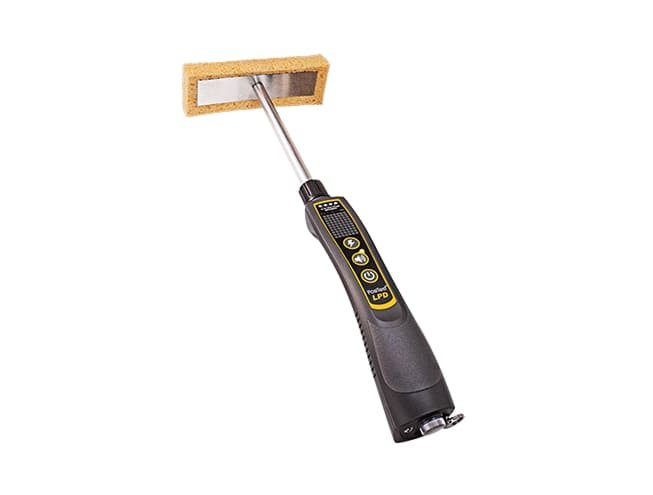

The DeFelsko PosiTest LPD Low-Voltage Pinhole Detector is a rugged, hand-held instrument for detecting pinholes, holidays, and discontinuities in coatings on conductive substrates. It features selectable voltages, visual & audible alarms, and self-test calibration. Designed for coatings up to 500 µm, IP65 protection, and >150 hours battery life.

42 people are viewing this product right now

🔥 10 items sold in last 3 hours

Category: Pinhole and Holiday Detector

Brand: Defelsko Estimated delivery:June 18, 2026 - June 22, 2026

Description

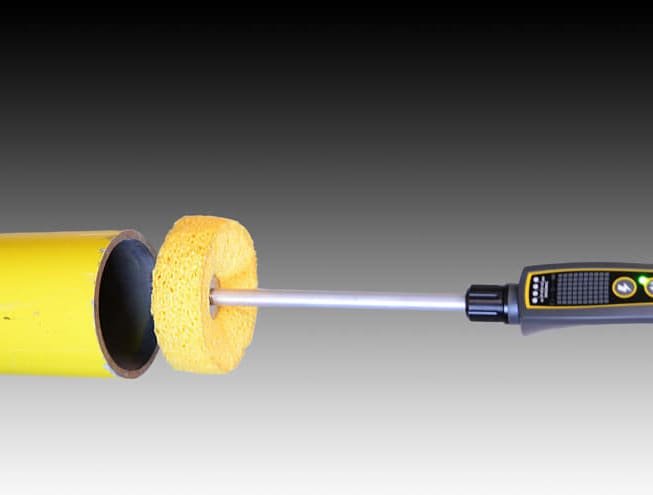

PosiTest LPD operates by moving a moist sponge electrode over a coated surface; when a pinhole exposes the conductive substrate beneath, current flows and triggers a visual/audible alert. It offers four voltage settings (9V, 67.5V, another 67.5V, 90V ±5%), sensitivity settings, and comes both as Basic and Complete kits. Accessories include roller or flat sponges, extension rods, long ground wires, and more.

DeFelsko PosiTest LPD Low Voltage Pinhole Detector

Want to confidently catch coating defects before they cost you? The PosiTest LPD gives you multiple voltage options, a rugged waterproof body, and accessories to adapt to many surfaces. Bright LEDs, a handy earbud, and a safety-ground check (GroundSense™) make inspecting feel safer. Lightweight and built to last even in tough job-site conditions

Features

Multiple Voltage Settings

Four selectable voltages (9V, 67.5V, 67.5V, 90V ±5%) to conform to various inspection standards and coating types.

Visible & Audible Alerts + GroundSense

When a coating defect (pinholes) is detected, it signals both visually and via sound. GroundSense ensures the instrument is properly grounded for reliable detection.

Rugged & Weather-Resistant Build (IP65)

Sealed enclosure, dustproof, splash-proof. Designed for harsh field environments.

Long Battery Life & Portable Design

Powered by 3 AAA batteries, gives over 150 hours of usage. Lightweight (~180 g without batteries). Compact for ease of use.

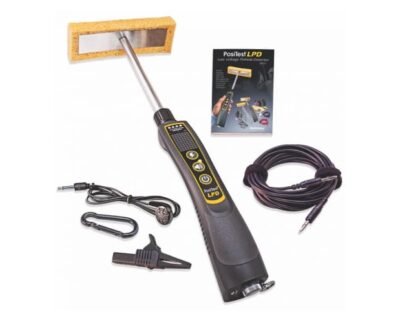

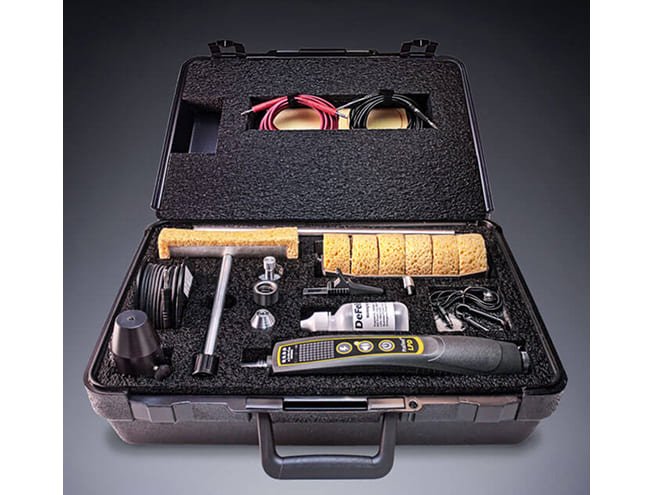

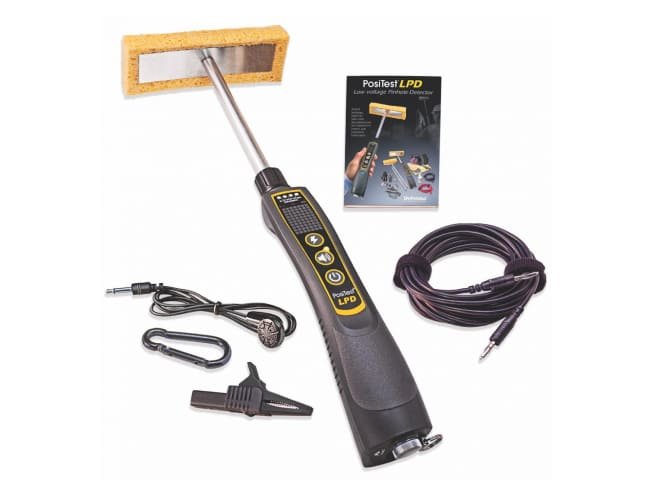

Comprehensive Kit Options & Adaptable Accessories

Two kit configurations: Basic and Complete. Includes sponges (flat, roller, etc.), extension rods, long ground wires, wetting agents, and more for flexible use.

Overview

Specification Item	Unit	Value / Range
Voltage Settings	V	9V ±5%; 67.5V ±5%; 67.5V ±5%; 90V ±5%
Sensitivity	Ω (Resistance)	90 kΩ ±3%; 80 kΩ ±3%; 90 kΩ ±3%; 400 kΩ ±3%
Coating Thickness Range	µm / mils	0 – 500 µm (0 – 20 mils)
Temperature Range (Operating)	°C	-10 to 50 °C (14 to 122 °F)
Battery Life	hours	> 150 hours (depending on battery type)
IP Rating	—	Meets or exceeds IP65
Dimensions (without wand)	cm / inches	27 × 6 × 5.5 cm (10.6″ × 2.3″ × 2.1″)
Weight (without batteries)	g / oz	180 g (6.4 oz)
Power Source	—	3 AAA batteries (alkaline or rechargeable)
Standards Conformance	—	ISO 14654, ISO 8289-A, ASTM G62, G6, D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766
