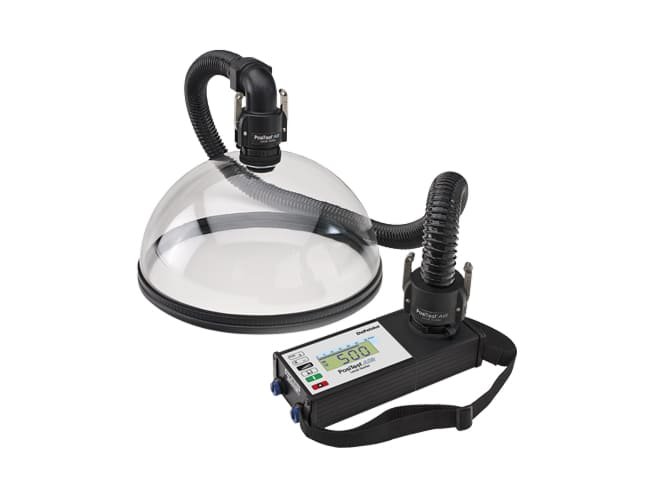

The PosiTest AIR is designed for testing penetrations, joints, seams, and continuity of rigid air barrier systems, membranes, SPF, metal liners, EIFS, and waterproofing systems. It includes a test chamber, hose, test solution, rechargeable batteries, and stores readings including depressurization rate, test duration, limit pressure, and Pass/Fail verdict. The device operates in the differential pressure range of 100-900 Pa and a depressurization rate of 5-30 Pa/sec.
DeFelsko PosiTest AIR Surface Tester solution

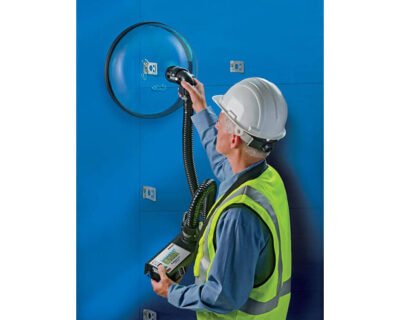

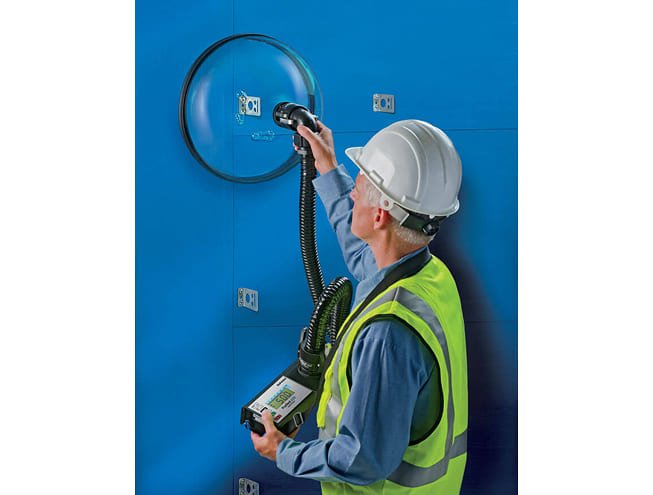

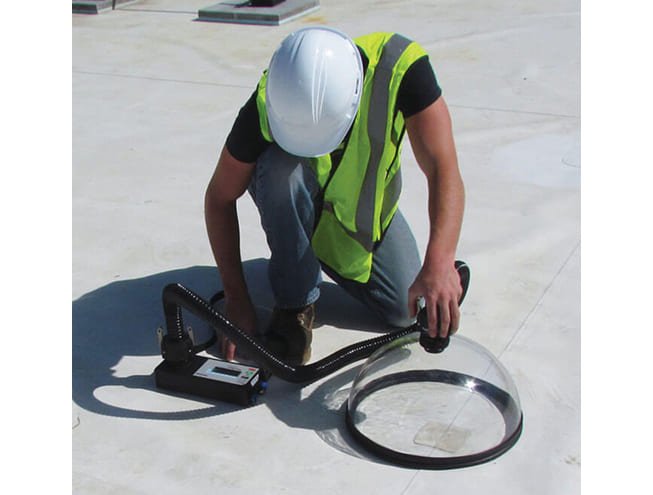

Want to spot leaks before they become problems? The PosiTest AIR makes it easy: place the test chamber, apply the test solution, depressurize and watch for bubbles. With clear Pass/Fail cues, internal memory, durable waterproof design, and powerful battery life, it’s built for tough inspections in all positions.
Features
Overview
| Specification Item | Unit | Value / Range |
|---|---|---|
| Pressure Differential Range | Pa | 100 – 900 Pa |
| Depressurization Rate | Pa/sec | 5 – 30 Pa/s |
| Test Chamber Size (Base) | cm / inches | Ø 40 cm (≈ 16 in) base |
| Resolution | Pa | 1 Pa |
| Accuracy | ± | ± (10% + 10 Pa) |
| Carry Case Dimensions | cm / inches | 38 cm × 48.3 cm Ø |
| Weight (Instrument) | kg / lbs | 3.8 kg / 8.5 lbs |
| Shipping Weight | kg / lbs | 6.7 kg / 14.7 lbs |
| Power / Battery | — | Built-in rechargeable battery; can operate while charging via AC adapter |

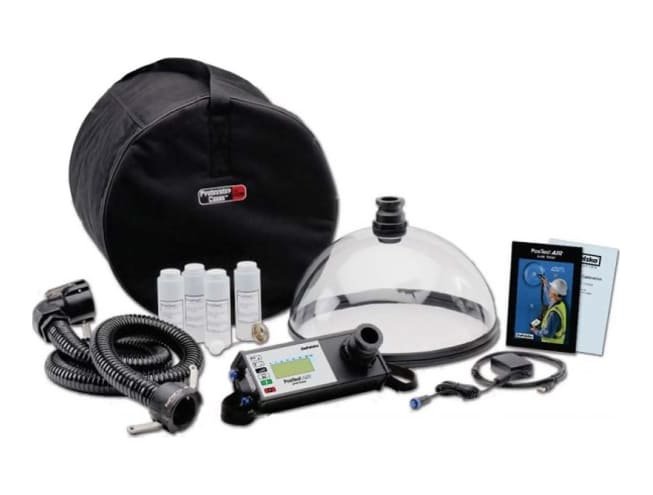

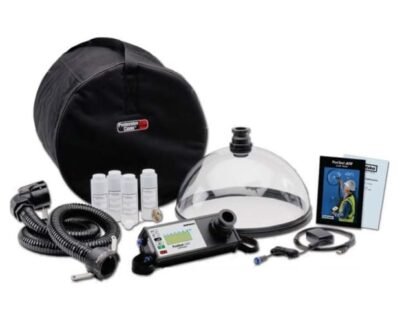

| Included Accessories | — | Test Chamber, hose, test solution, USB cable, universal AC adapter, carry case, test solution bottles, instructions, calibration certificate |
