This gauge offers simple operation and robust performance, with ready-to-measure capability and onscreen averaging of up to 99 readings. Its adjustable display and automatic measurement response make it ideal for industrial, automotive, and powder coating thickness checks on steel, aluminum, and brass.

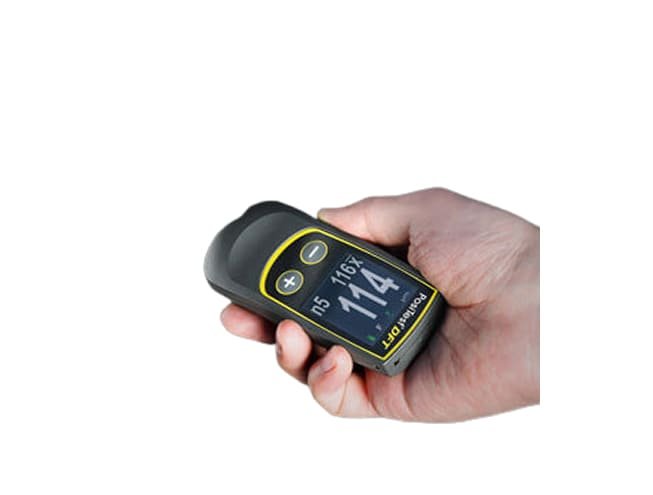

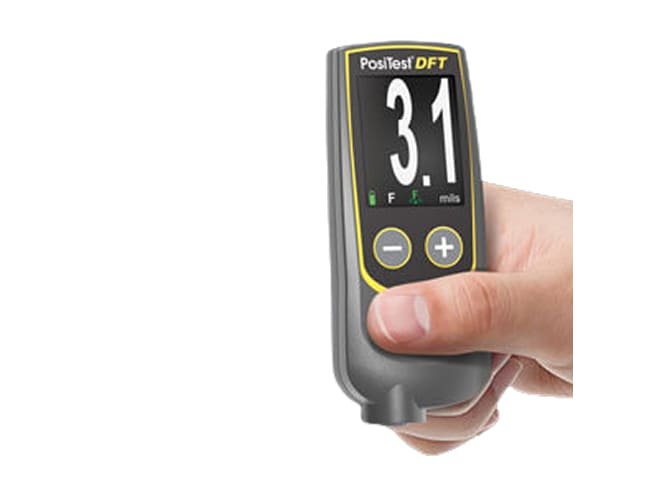

DeFelsko PosiTest DFT Coating Thickness Gauge
This gauge offers simple operation and robust performance, with ready-to-measure capability and onscreen averaging of up to 99 readings. Its adjustable display and automatic measurement response make it ideal for industrial, automotive, and powder coating thickness checks on steel, aluminum, and brass.
Features
Overview
| Specification | Typical Value / Notes |
|---|---|
| Measurement Range | 0–40 mils (0–1000 µm) dry film thickness. |
| Accuracy | ± (0.1 mils + 3%) / ± (2 µm + 3%). |
| Display & Readings | Onscreen averaging of up to 99 readings. |
| Probe Type | Wear-resistant ruby-tipped probe. |
| Units | Switchable between mils and microns. |
| Display Features | Adjustable brightness; auto-rotating with rotation lock. |
| Calibration | Zero or one-point calibration adjustment. |

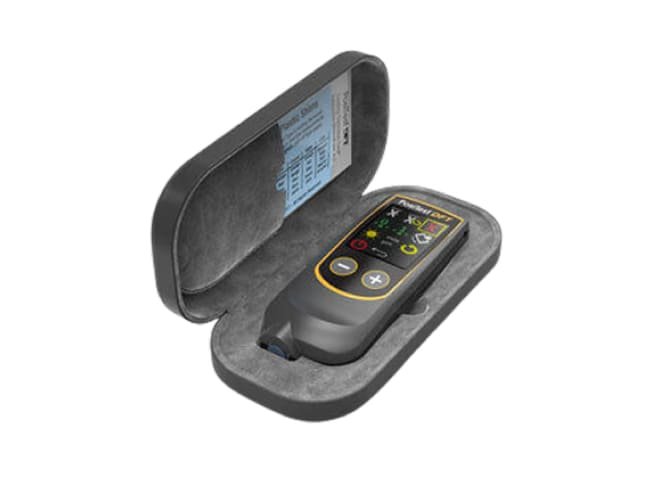

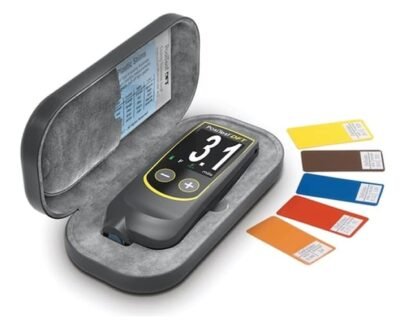

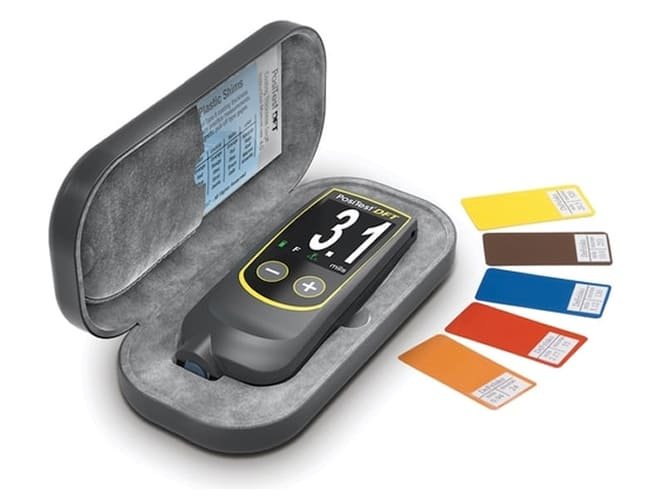

| Included Accessories | Precision plastic shims, wrist strap, hard case, AAA batteries, calibration certificate. |
| Standards Compliance | ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D7091/E376, BS3900-C5, SSPC-PA2, and others. |
| Dimensions | 108 × 43 × 20 mm. |
| Weight | 54 g (without batteries). |
