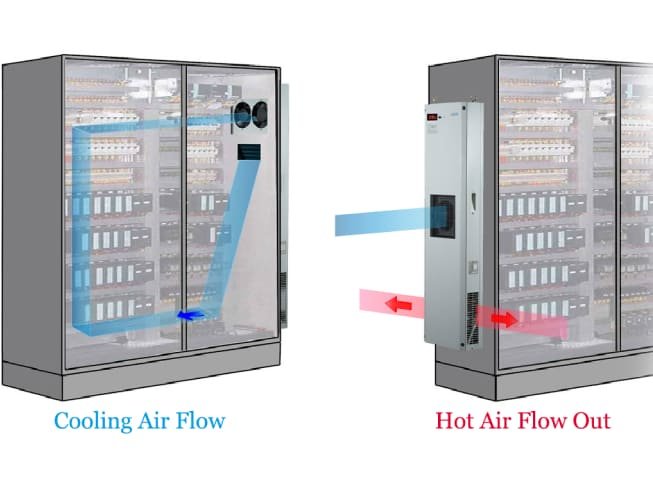

Engineered for demanding industrial applications, the Dindan Linear 1200 Watt provides continuous cooling with optimized airflow management. Designed with a slim, chemical-resistant enclosure, it withstands harsh factory conditions while maintaining high energy efficiency. Equipped with hermetic compressors, servo fans, and an advanced Hi-prosent control system, it ensures consistent performance for automation lines, electronic cabinets, and legacy machinery.

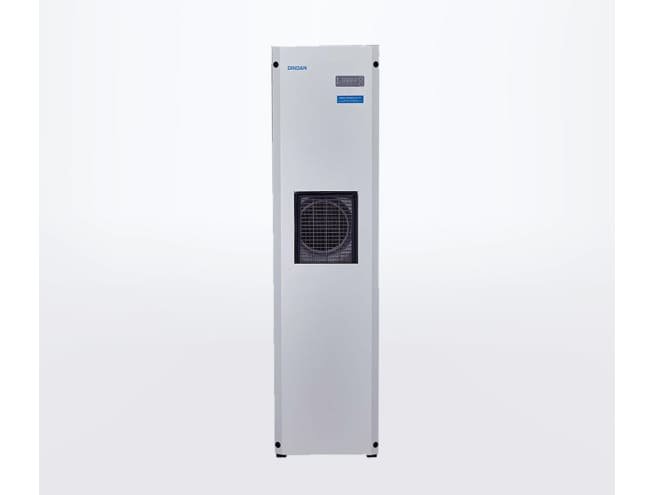

Dindan Cooling Console Linear 1200 WATT

The Dindan Linear 1200 Watt stands as a robust cooling solution tailored for automation and industrial control systems. Operating quietly and efficiently, it maintains desired temperatures through intelligent controls and industrial-grade evaporator coils. Its eco-friendly refrigerant and compact construction make it both sustainable and versatile, extending equipment lifespan while reducing operational costs across manufacturing facilities

Features

Continuous 24/7 Operation

Designed for round-the-clock use, ensuring stable airflow and reliable cooling for automation lines, control panels, and legacy machinery.

Energy-Efficient Performance

Equipped with hermetic compressor and centrifugal condenser fans, delivering superior heat dissipation while reducing power consumption compared to conventional cooling systems.

Durable & Compact Enclosure

Slim 146 mm housing made of slag-free, corrosion-resistant materials, suitable for demanding factory environments with limited space.

Intelligent Hi-Prosent Control

Provides precise temperature regulation, rapid switching system, and real-time monitoring via 19 mm LED dual-color display.

Eco-Friendly & Easy Maintenance

Uses high-quality 134a refrigerant and servo fan ventilation, with easy cleaning access and adjustable drainage tray for safe, leak-free operation.

Overview

Kategori	Item	Spesifikasi
Model		40ACU-P23
Capacity (W)		1200
Installation type		Panel
Input	Single-phase (V)	220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20%
	Frequency (Hz)	50/60
	Current (A)	3.60
Compressor	Hermetic type	Rotary
	Torque start type	Low
	Refrigerant type	134a
	Lock rotor (A)	None
System operate	Direct expand	Yes
	Thermostat	Yes
Hi-present control	Condensor thermal detector	Yes
	Anti-freeze detector	Yes
	Overflow condensate drain protection	None
Protection	Over drain protect system	Yes
	Secondary drainpan	None
Display	Thermometer (red 7 segment 19mm)	Yes
	System status (2 colour LED)	Yes
Electrical equipment	Safety device	7A slow-blow fuse
Evaporator coil	Face area x rows	47.5 sq.inch x 3
	Servo fan (rpm)	2850
	Number of fan x cfm (0.18 inH2O)	2 x 158
Condenser coil	Face area x rows	83.5 sq.inch x 2
	Centrifugal fan (rpm)	2500
	Number of fan x cfm (0.2 inH2O)	1 x 647.5
Physical data	Approx. weight (kgs) (include Inst.Plt)	46.6
	Dimension (mm)	W:350 D:146 H:1350
	Condensate drain	O.D. 1/2 inch
	Internal casing	Electro-galvanize
Air filter	Width x length (mm)	220 x 250
