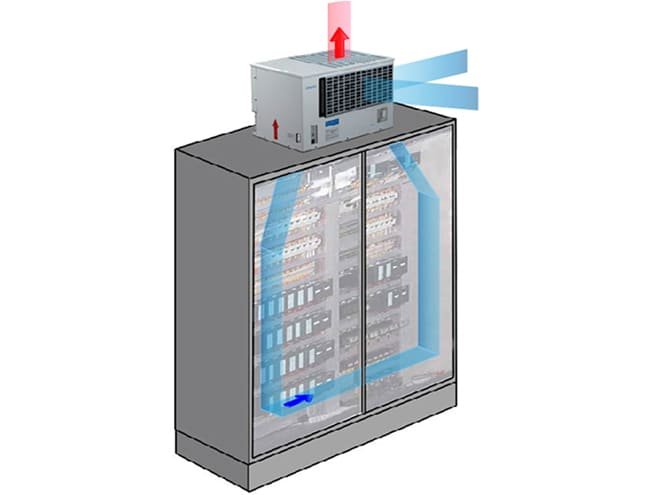

The Dindan Linear 1500 Watt provides powerful and reliable cooling for industrial environments where space is limited. Positioned as a medium-range alternative to traditional air conditioning, it delivers consistent airflow, low noise operation, and energy efficiency. Its intelligent Hi-prosent control, dual servo fans, and eco-friendly refrigerant make it ideal for automation systems, control panels, and server mainframes.

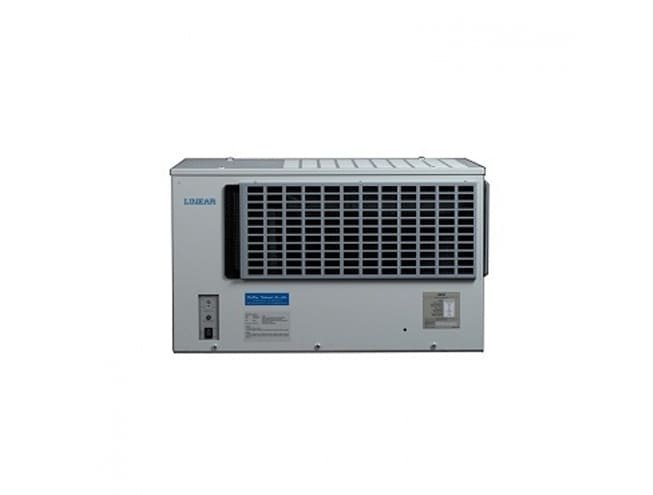

Dindan Cooling Console Linear 1500 WATT
Built for heavy-duty industrial applications, the Dindan Linear 1500 Watt combines durability, performance, and practicality. Its galvanized enclosure resists corrosion, while the evaporator and condenser coils are designed for 24/7 operation. Equipped with hermetic compressor, 134a refrigerant, and secondary drain protection, this unit ensures safe, stable, and efficient cooling for transformers, electronic cabinets, and older machinery requiring dependable thermal management.
Features
Overview
Characteristics (under normal operating condition at ambient temperature, +35°)
| Kategori | Item | Spesifikasi |
|---|---|---|
| Model | 40ACU/004-2 | |
| Capacity (W) | 1500 | |
| Installation type | Top | |
| Input | Single-phase (V) | 220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20% |
| Frequency (Hz) | 50/60 | |
| Current (A) | 3.60 | |
| Compressor | Hermetic type | Reciprocate |
| Torque start type | High | |
| Refrigerant type | 134a | |
| Lock rotor (A) | 23.90 | |
| System operate | Direct expand | None |
| Thermostat | Yes | |
| Hi-present control | Condensor thermal detector | Yes |
| Anti-freeze detector | Yes | |
| Overflow condensate drain protection | Yes | |
| Protection | Over drain protect system | Yes |
| Secondary drainpan | Yes | |
| Display | Thermometer (red 7 segment 19mm) | None |
| System status (2 colour LED) | Yes | |
| Electrical equipment | Safety device | 7A slow-blow fuse |
| Evaporator coil | Face area x rows | 76.125 sq.inch x 2 |
| Servo fan (rpm) | 2850 | |
| Number of fan x cfm (0.18 inH2O) | 2 x 158 | |
| Condenser coil | Face area x rows | 196 sq.inch x 2 |
| Servo fan (rpm) | 2850 | |
| Number of fan x cfm (0.2 inH2O) | 4 x 250 | |
| Physical data | Approx. weight (kgs) (include Inst.Plt) | 46.60 |
| Dimension (mm) | W:608 D:388 H:403 | |
| Condensate drain | O.D. 1/2 inch | |
| Internal casing | Electro-galvanize | |
| Air filter | Width x length (mm) | 488 x 185 (1), 340 x 185 (2) |
