The Dindan Linear 600 Watt is a mid-range cooling unit designed to deliver high performance in industrial applications. Compared to a blower system, this cooler is more economical, reliable, and can be installed with a fully customized arrangement. It is highly sought after for older machinery or automation control systems where an integrated air conditioning system is not a feasible option.

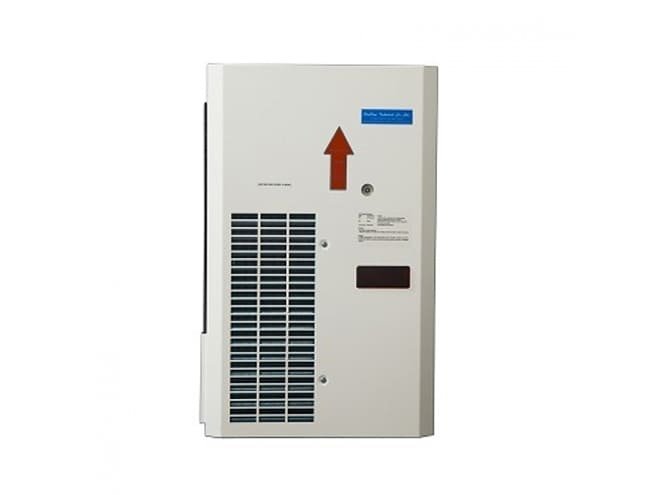

Dindan Cooling Console Linear 600 WATT

The Dindan Linear 600 Watt is a 24-hour cooling solution that provides direct airflow and convenient maintenance. The unit is equipped with a hermetic compressor that uses a high-quality 134a refrigerant and durable servo fans. Designed for maximum efficiency, it can distribute a steady flow of cold air and maintain the desired temperature through a user-friendly interface.

Features

High-Performance Cooling

Equipped with a hermetic reciprocating compressor and industrial-grade evaporator coil, the unit ensures efficient and steady airflow for 24/7 operation in demanding industrial environments.

Smart Control System

Integrated Hi-prosent control with thermostat, condenser thermal detector, and anti-freeze protection allows precise temperature regulation while safeguarding system reliability.

Durable & Compact Design

Built with electro-galvanized internal casing and corrosion-resistant enclosure, the lightweight unit withstands ambient temperatures up to 50°C without compromising performance.

Energy Efficiency

Designed to deliver full BTU capacity with lower energy consumption compared to blower systems, ensuring cost-effective cooling for automation systems, control panels, and electronic equipment.

User-Friendly Operation

Features LED status display, red 7-segment thermometer, and built-in protection systems (including over-drain safeguard) for easy monitoring, safe usage, and simplified maintenance.

Overview

Characteristics (under normal operating condition at ambient temperature, +35°)

Kategori	Item	Spesifikasi
Model		20ACU/003
Capacity (W)		600
Installation type		Panel
Input	Single-phase (V)	220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20%
	Frequency (Hz)	50/60
	Current (A)	2.57
Compressor	Hermetic type	Reciprocate
	Torque start type	High
	Refrigerant type	134a
	Lock rotor (A)	10.7
System operate	Direct expand	Yes
	Thermostat	Yes
Hi-present control	Condensor thermal detector	Yes
	Anti-freeze detector	Yes
	Overflow condensate drain protection	None
Protection	Over drain protect system	Yes
	Secondary drainpan	None
Display	Thermometer (red 7 segment 19mm)	Yes
	System status (2 colour LED)	Yes
Electrical equipment	Safety device	7A slow-blow fuse
Evaporator coil	Face area x rows	42.5 sq.inch x 2
	Servo fan (rpm)	2850
	Number of fan x cfm (0.18 inH2O)	1 x 135
Condenser coil	Face area x rows	78.75 sq.inch x 2
	Servo fan (rpm)	2850
	Number of fan x cfm (0.2 inH2O)	2 x 158
Physical data	Approx. weight (kgs) (include Inst.Plt)	36

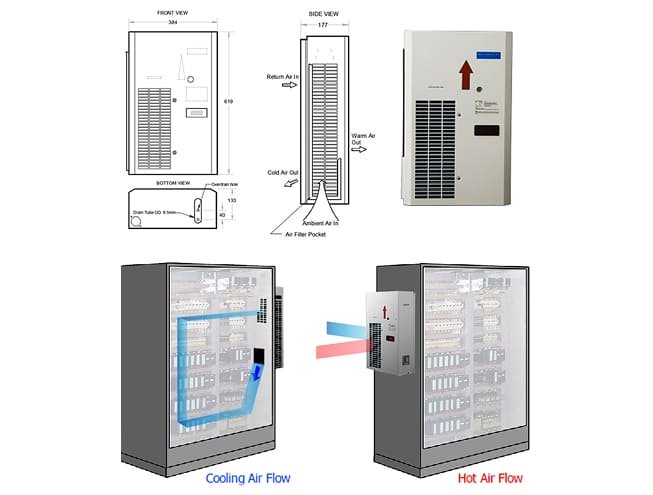

	Dimension (mm)	W:384 D:177 H:619
	Condensate drain	O.D. 3/8 inch
	Internal casing	Electro-galvanize
Air filter	Width x length (mm)	110 x 536
