The Dindan Cooling Console Linear 2400 Watt offers advanced cooling performance for industries requiring consistent temperature management in large-scale applications. Engineered with durable construction, eco-friendly refrigerant, and robust airflow design, it ensures energy savings and reliability. This unit is well-suited for production lines, transformers, and high-density electronics demanding uninterrupted cooling capacity.

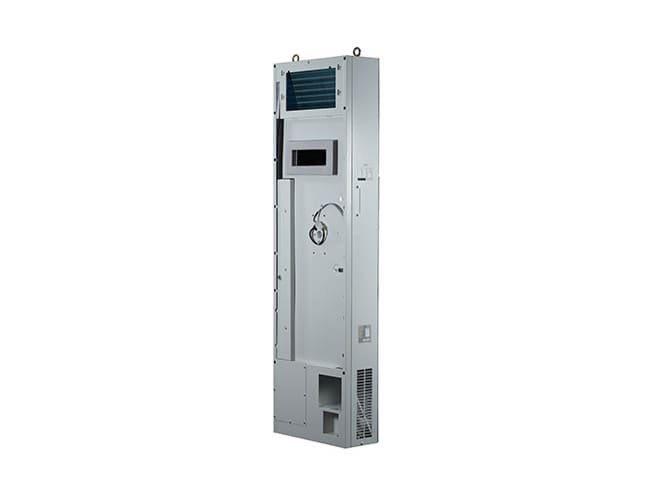

Dindan Cooling Console Linear 2400 WATT
Built for demanding industrial environments, the Dindan Cooling Console Linear 2400 Watt combines high efficiency with superior durability. Its intelligent control system provides stable temperature regulation, while dual servo fans and hermetic compressor deliver steady performance. With quiet operation and customizable installation, it is the preferred solution for automation systems, control cabinets, and critical machinery.
Features
Overview
Characteristics (under normal operating condition at ambient temp. +35°C)
| Spesifikasi | 14ACU/005 | 20ACU/003 | 40ACU-P23 | 40ACU/004-2 |
|---|---|---|---|---|
| Model | 14ACU/005 | 20ACU/003 | 40ACU-P23 | 40ACU/004-2 |
| Capacity (W) | 300 | 600 | 1200 | 1500 |
| Installation type | Panel | Panel | Panel | Top |
| Input | ||||
| Single-phase (V) | 220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20% | 220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20% | 220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20% | 220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20% |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Current (A) | 1.83 | 2.57 | 3.60 | 3.60 |
| Compressor | ||||
| Hermetic type | Reciprocate | Reciprocate | Rotary | Reciprocate |
| Torque start type | Low | High | Low | High |
| Refrigerant type | 134a | 134a | 134a | 134a |
| Lock rotor (A) | 8.30 | 10.7 | None | 23.90 |
| System operate | ||||
| Direct expand | Yes | Yes | Yes | None |
| Quick balance (solenoid valve restart) | – | – | – | – |
| Hi-prosent control | ||||
| Thermostat | Yes | Yes | Yes | Yes |
| Condensor thermal detector | Yes | Yes | Yes | Yes |
| Anti-freeze detector | Yes | Yes | Yes | Yes |
| Overflow condensate drain protection | – | None | None | Yes |
| Protection | ||||
| Over drain protection system | Yes | Yes | Yes | Yes |
| Secondary drainpan | – | None | None | Yes |
| Display | ||||
| Thermometer (red 7 seg. 19 mm) | Yes | Yes | Yes | None |
| System status (2 colour LED) | Yes | Yes | Yes | Yes |
| Electrical equipment | Safety device | 7A slow-blow fuse | 7A slow-blow fuse | 7A slow-blow fuse |
| Evaporator coil | ||||
| Face area x rows | 25.5 sq.inch x 2 | 42.5 sq.inch x 2 | 47.5 sq.inch x 3 | 76.125 sq.inch x 2 |
| Type fan (rpm) | 2700 | 2850 | 2850 | 2850 |
| Number of fan x cfm (0.18 inH2O) | 1 x 50 | 1 x 135 | 2 x 158 | 2 x 158 |
| Condenser coil | ||||
| Face area x rows | 33.75 sq.inch x 2 | 78.75 sq.inch x 2 | 83.5 sq.inch x 2 | 196 sq.inch x 2 |
| Type fan (rpm) | 2850 | 2850 | 2500 (centrifugal) | 2850 |
| Number of fan x cfm (0.2 inH2O) | 1 x 158 | 2 x 158 | 1 x 647.5 | 4 x 250 |
| Physical data | ||||
| Approx. weight (kgs) | 26 | 36 | 46.6 | 46.6 |
| Dimension (mm) | W:384 D:175 H:432 | W:384 D:177 H:619 | W:350 D:146 H:1350 | W:608 D:388 H:403 |
| Condensate drain | O.D. 3/8 inch | O.D. 3/8 inch | O.D. 1/2 inch | O.D. 1/2 inch |
| Internal casing | Electro-galvanize | Electro-galvanize | Electro-galvanize | Electro-galvanize |
| Air filter | 168 x 250 | 110 x 536 | 220 x 250 | 488 x 185 (#1), 340 x 185 (#2) |
