The Dindan Linear 300 Watt is a compact cooling unit designed to efficiently disperse heat in industrial applications. This unit is in high demand for older machinery or automation control systems where an integrated air conditioning system is not feasible. Compared to a blower system, the Dindan cooler is more economical, reliable, and can be installed with a fully customized arrangement.

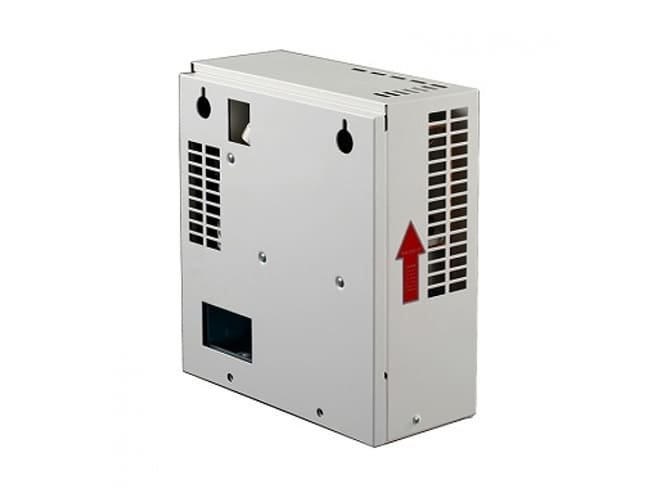

Dindan Cooling Console Linear 300 WATT

The Dindan Linear 300 Watt is a 24-hour cooling solution that provides direct airflow. The unit is equipped with a hermetic compressor that uses a high-quality 134a refrigerant and durable servo fans. The system can maintain a desired temperature through an intelligent Hi-prosent control and a user-friendly interface. This makes it an ideal choice for server mainframes, light transformers, storage cabinets, and electronic control boards.

Features

Highly Durable

The unit is capable of withstanding ambient temperatures of up to 50°C.

Energy Efficient and Robust

Its energy-saving capacity is more effective than other cooling units of the same BTU, and its enclosure is made from slag-free materials that are resistant to chemical erosion.

Accurate Temperature Control

The system can maintain the desired temperature inside the control box rapidly, without causing any damage to the compressor.

Compact Design

Its light weight and compact form factor ensure that it does not damage the cover of the control box.

Smart Additional Features

It is equipped with an internal sensor that detects over-flown water level and an adjustable tray for the water drainage system.

Overview

Characteristics (under normal operating condition at ambient temperature, +35°)

Kategori	Item	Spesifikasi
Model		14ACU/005
Capacity (W)		300
Installation type		Panel
Input	Single-phase (V)	220V+20%/-15%; 230V+15%/-15%; 240V+10%/-20%
	Frequency (Hz)	50/60
	Current (A)	1.83
Compressor	Hermetic type	Reciprocate
	Torque start type	Low
	Refrigerant type	134a
	Lock rotor (A)	8.30
System operate	Direct expand	Yes
	Thermostat	Yes
Hi-present control	Condensor thermal detector	Yes
	Anti-freeze detector	Yes
	Compressor overheat detector	None
	Water detector	None
Protection	Over drain protect system	Yes
Display	Thermometer (red 7 segment 19mm)	Yes
	System status (2 colour LED)	Yes
Electrical equipment	Safety device	7A slow-blow fuse
Evaporator coil	Face area x rows	25.5 sq.inch x 2
	Servo fan (rpm)	2700
	Number of fan x cfm (0.18 inH2O)	1 x 50
Condenser coil	Face area x rows	33.75 sq.inch x 2
	Servo fan (rpm)	2850
	Number of fan x cfm (0.2 inH2O)	1 x 158
Physical data	Approx. weight (kgs) (include Inst.Plt)	26
	Dimension (mm)	W:384 D:175 H:432
	Condensate drain	O.D. 3/8 inch
	Internal casing	Electro-galvanize
Air filter	Width x length (mm)	168 x 250
