This 5MP Dino-Eye eyepiece camera features Edge series optics and a CMOS sensor capable of capturing sharp images at 2592×1944 resolution. It fits standard 23 mm ocular tubes with optional 30 mm/30.5 mm adapters or C-mount, allowing broad compatibility with most microscope brands and models.

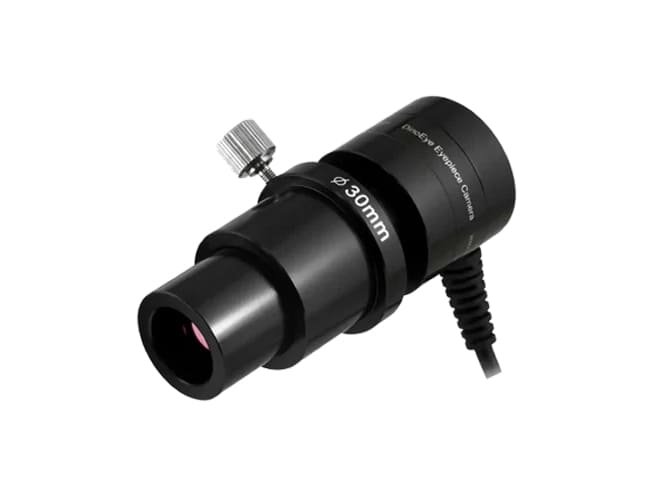

Dino-Eye AM7025X Eyepiece Camera

Designed for professional laboratories, the AM7025X supports both Windows and Mac systems via USB 2.0. It includes DinoCapture (Win) and DinoXcope (Mac) software to measure, annotate, record videos and time-lapse sequences—making detailed documentation and analysis straightforward.

Features

High-Resolution Imaging

5 Megapixel CMOS sensor captures clear, detailed images at 2592×1944.

Large Field of View

Larger view than predecessors, capturing more sample detail in one frame.

Multi-Mount Compatibility

Fits 23 mm ocular or via supplied 30 mm/30.5 mm adapters; also supports C-mount via adapter.

Professional Software Suite

Includes DinoCapture (Windows) and DinoXcope (Mac) with measurement, annotation and video tools.

True Colour Reproduction

Edge optics ensure accurate colour representation for critical applications.

Overview

Specification	Detail
Product Name	AM7025X Dino-Eye Edge Eyepiece Camera
Sensor	CMOS
Resolution	5 Megapixel (2592×1944)
Frame Rate	Up to 30 fps
Interface	USB 2.0
Operating Systems	Windows 7/8/10/11, macOS 10.12+
Software	DinoCapture 2.0 (Win), DinoXcope (Mac)
Lens & Magnification	Glass optics,20× built-in; anti-reflection coating
Housing	Metal body
Dimensions	80 mm (H) × 32 mm (D)
Weight	117 g
Adapters Included	30 mm & 30.5 mm (with C-mount thread)
Features	Measurement, calibration, extended depth of field (EDOF)
Package Contents	Camera, carry pouch, software CD/manual, calibration target
Warranty	2-year European warranty
