CETATEST 915 Flow Tester
The CETATEST 915 is a precision flow tester for measuring air flow using compressed air. It uses a laminar flow element (LFE) and differential pressure sensor to deliver direct or indirect flow tests. With multiple LFEs, it supports very wide flow ranges, intuitive controls, and optional electronic pressure regulation.
20 people are viewing this product right now
🔥 8 items sold in last 3 hours
CETATEST 915 Flow Tester
The CETATEST 915 delivers reliable, repeatable measurements thanks to its 24-bit ADC, multiple LFEs, and filter/regulator options. Users can choose between direct or indirect methods, set up test phases (filling, stabilising, venting), and view flow in ml/min, ml/h, l/min, or l/h. Accurate to 2 % of full scale.
Features
Overview
| Specification | Detail / Value |
|---|---|
| Principle | Laminar Flow Element (LFE) with differential pressure measurement; direct & indirect test methods and optional bypass. |
| Pressure Ranges | -1000 mbar; 150 mbar; 1000 mbar; 6 bar; other ranges on request. |
| Flow Ranges (examples, at 50 mbar in the LFE) | Type 1 LFE: 3-250 ml/min Several HFEs up to 200 l/min (larger LFEs) |
| Accuracy | Gauge pressure: ± 1 % (full scale) Volumetric flow: ± 2 % (full scale) |
| Signal Processing | 24-bit A/D converter; 16-bit microcontroller, 40 MHz; real-time system. |
| Number of Test Programs | 64 parameterizable programs (with alpha-numeric names) |

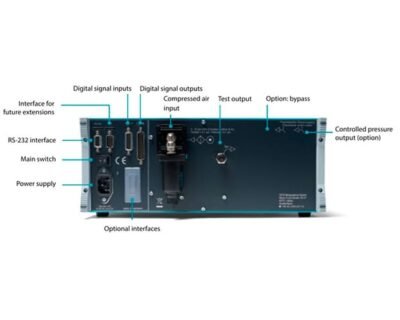

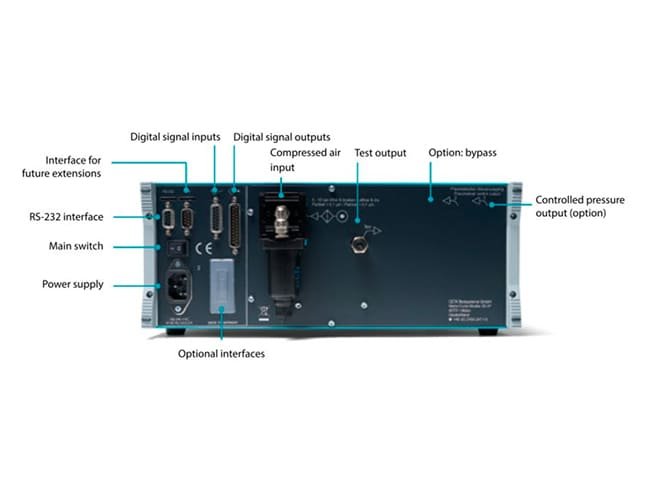

| Interfaces | Standard: RS-232, digital I/O; optional: Profibus DP, Profinet, Ethernet, etc. |
| Power Supply | 100-240 V AC, 47-63 Hz; consumption up to 60 W (depending on options). |
| Pneumatic / Air Supply | Compressed air supply: 1.0 bar above test pressure or 50 mbar under evacuation pressure; fitting size depends on LFE. |
| Dimensions & Weight | Approx. 345 × 145 × 435 mm, 10 kg. |
| Warranty | 3 years with yearly maintenance; optional extension to 5 years. |
