Designed for demanding inspection environments, the ENVL6K-CF features a full spectrum LED system that closely replicates natural sunlight, improving color accuracy and reducing eye fatigue. The swing-arm structure offers wide positioning freedom, and the integrated head-mounted dimmer and switch provide convenient operation with stable, uniform illumination for detailed tasks.

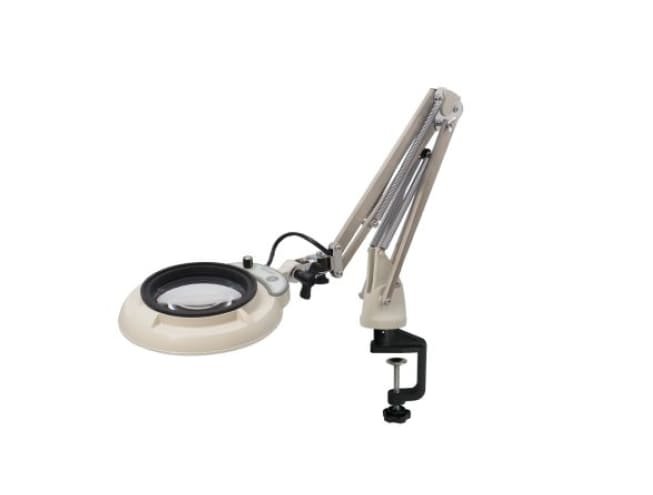

Full Spectrum LED Illuminated Magnifier ENVL6K-CF Otsuka Optics
Otsuka Optics’ ENVL6K-CF magnifier combines precision optics with advanced LED lighting technology. The anti-glare diffuser cover minimizes harsh reflections, while interchangeable lens magnifications support multiple inspection requirements. Its robust clamp attachment saves workspace and improves efficiency, making it suitable for electronics, laboratory, and quality control environments requiring reliable magnification.
Features
Spesification
| Lens | |
|---|---|
| Magnifier Lens Magnification Lineup | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
| AR (anti-reflection) Coated Lens Lineup | Available / 2x, 3x, 4x, 6x, 8x, 10x |
| Lighting | |
| Light source | Full spectrum LED, high color rendering Ra≥95, color temperature 6000K |
| Input voltage | 100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V. Please contact your sales dealer for details. |
| Power consumption | 14W |
| Dimming Function | Available / 100-0% |
| Body | |
| Weight (Kg) | 1.8kg (Without lens and AC adapter/body weight) |
| Possible clamping width(mm) | 15～60 |
| AC Adapter | dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires) |
| Operating temperature range | 5℃～35℃ |
| Dustproof and waterproof protection grade | IP20 (indoor use only) |
