Designed for professional environments, the ENVL6K-F combines interchangeable precision lenses with full spectrum LED technology that closely replicates natural sunlight. The horizontally swinging head increases positioning freedom, while the integrated dimming knob and switch on the head ensure convenient operation, improving productivity and reducing operator fatigue during extended use.

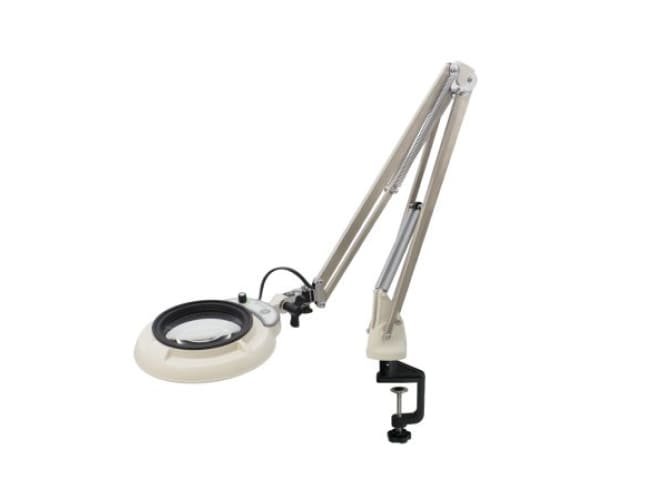

Full Spectrum LED Illuminated Magnifier ENVL6K-F Otsuka Optics
Otsuka Optics’ ENVL6K-F magnifier delivers uniform, glare-reduced illumination through a flat diffuser protective cover that safeguards both the light source and workpiece. The reinforced clamp attachment saves space and enhances stability, making it ideal for electronics inspection, laboratory analysis, manufacturing quality control, and other detail-critical professional applications requiring reliable magnification.
Features
Spesification
| Lens | |
|---|---|
| Magnifier Lens Magnification Lineup | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
| AR (anti-reflection) Coated Lens Lineup | Available / 2x, 3x, 4x, 6x, 8x, 10x |
| Lighting | |
| Light source | Full spectrum LED, high color rendering Ra≥95, color temperature 6000K |
| Input voltage | 100～240V : 50/60 Hz : Plug Type A * Change or purchase an additional AC cord to use at 125-240V. Please contact your sales dealer for details. |
| Power consumption | 14W |
| Dimming Function | Available / 100-0% |
| Body | |
| Weight (Kg) | 2.0kg (Without lens and AC adapter/body weight) |
| Possible clamping width(mm) | 15～60 |
| AC Adapter | dimension : 96×44×H29[mm] (Not include wires) Weight : 0.3kg(Include wires) |
| Operating temperature range | 5℃～35℃ |
| Dustproof and waterproof protection grade | IP20 (indoor use only) |
