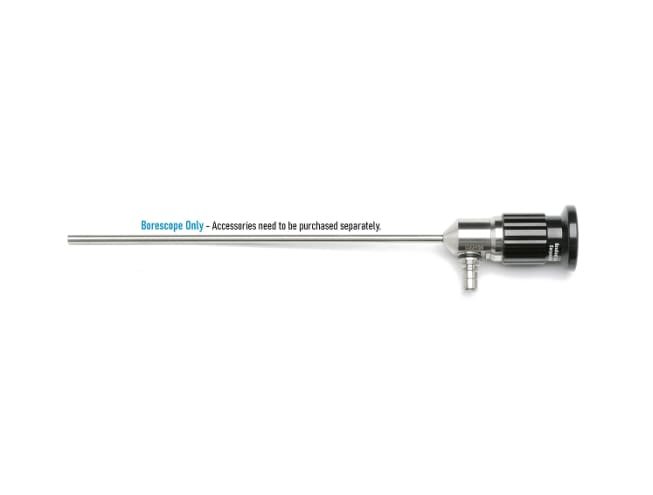

Designed for professional visual inspection, the Pro Hardy Borescope combines a bright Light Concentrator light post and independent focusing ring with multicoated optical components. Its quarter-inch diameter and robust stainless-steel construction make it perfect for industrial and aerospace applications requiring clear internal views.
Hawkeye Pro Hardy Borescopes

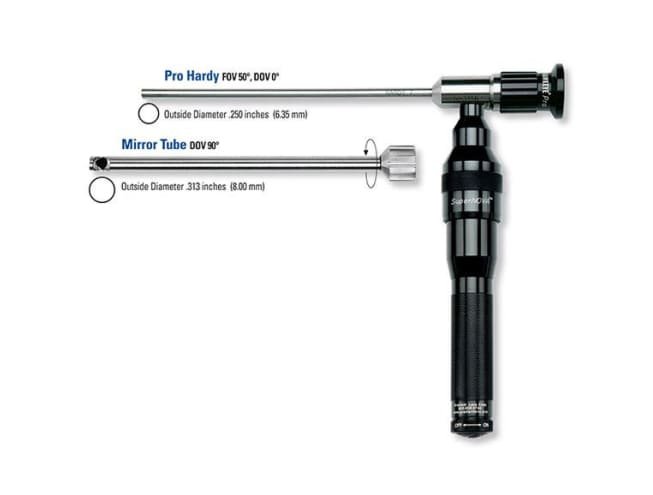

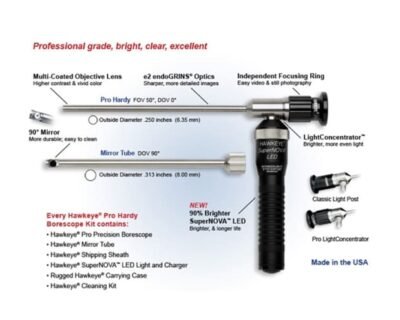

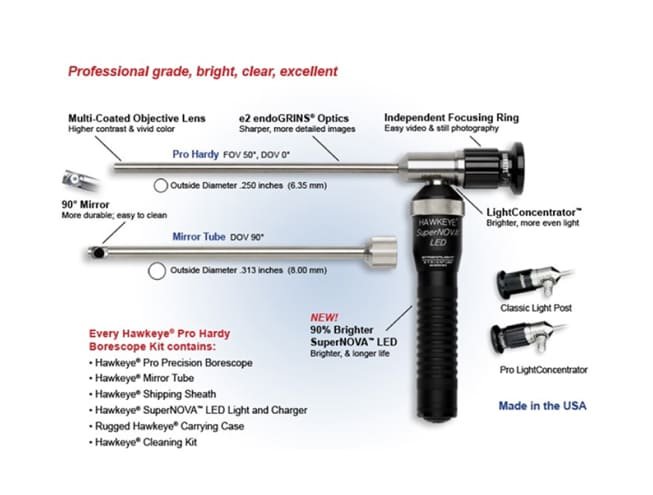

The Hawkeye Pro Hardy is a durable rigid borescope built to inspect larger bores with exceptional brightness and contrast. With a 50° field of view and optional mirror tube for side-viewing, it supports precise video and still imaging in challenging inspection environments.
Features
Overview
| Kategori | Item | Spesifikasi |
|---|---|---|
| Optics | Field-of-View | 50° |
| Direction-of-View | 0° (90° with mirror tube accessory) | |
| Relay Optics | e2 endoGRINs Glass Relay Lenses | |
| Magnification | Not fixed magnification | |
| Mechanical / Construction | Length | 180 / 305 / 435 / 559 mm |
| Diameter | Scope: 6.35 mm With Mirror Tube: 8.00 mm | |
| Lightpost | LightConcentrator ACMI configuration, Diameter 7.62 mm | |
| Eyecup | Standard DIN, 32 mm diameter, with independent focusing ring | |
| Materials | Tube | 304 Stainless Steel |
| All Machined Parts | 303 Stainless Steel | |
| Eyecup & Focusing Ring | Aluminum, black anodized | |
| Front Window | AR coated optical glass | |
| Illumination Fiber | Optical glass | |
| Relay Optics | e2 endoGRINs gradient index glass lenses | |
| Environmental | Temperature Range | -20° to 120°C |
| Note 1 | Custom models available up to 300°C (contact sales) | |
| Note 2 | Not designed for <0°C, but some customers use in liquid nitrogen at 77K | |
| Pressure | Designed for ambient pressure. Successfully used up to 500 PSI and down to 10⁻⁶ Torr (operator risk). | |
| Chemical Resistance | Tube watertight and resistant to most hydrocarbons (oils, gasoline, hydraulic fluid, jet fuel). Avoid acids & strong alkalis (damage optical window). |
