Designed for compatibility with WIDIA hydraulic chuck systems, HC sleeves provide secure cylindrical tool holding with consistent clamping force distribution. The hardened steel body enhances durability, while optimized bore contact ensures maximum torque transmission. These sleeves support through-coolant capability when paired with appropriate cutting tools, improving machining efficiency and heat management significantly.

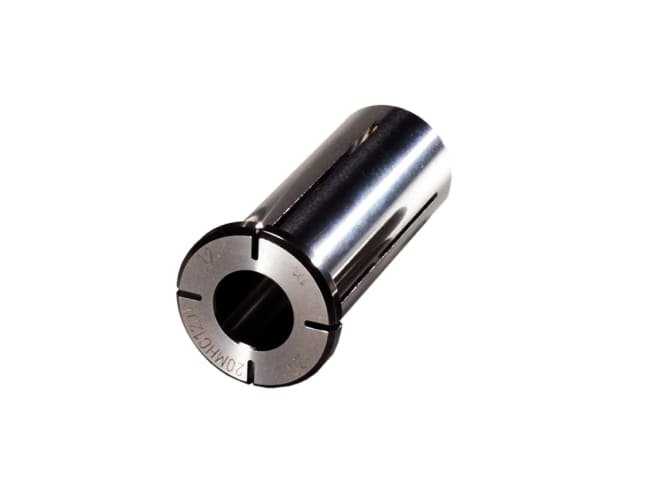

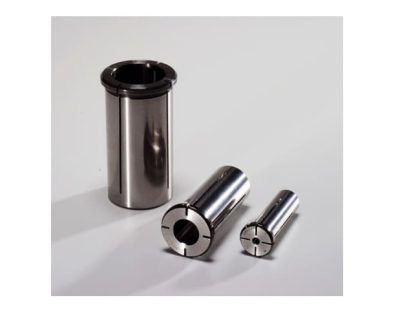

HC Hydraulic Chuck Sleeves Widia

HC Hydraulic Chuck Sleeves from WIDIA deliver high precision and repeatability for modern machining environments. Their reducer design accommodates various tool shank diameters while maintaining rigidity. Full-length tool contact and proper shoulder seating inside the chuck promote stability, making them suitable for high-accuracy milling, drilling, and finishing operations in advanced manufacturing environments.

Features

Precision Reduction Design

Allows use of smaller cylindrical shanks in hydraulic chucks

One-Piece Slotted Construction

Improves coolant sealing and clamping stability

High Concentricity

Supports accurate machining and improved surface finish

Durable Hardened Steel

Ensures long service life under demanding conditions

Through-Coolant Capability

Compatible with coolant-through cutting tools

Spesification

Order number	catalog number	D1	D2	D	L1	L9	V	G3X	G2	WF
5998607	32MHCSFC120M	12	36	32	2,5	41	4	M12	M6	32
5998608	32MHCSFC140M	14	36	32	2,5	41	4	M12	M6	32
5998609	32MHCSFC160M	16	36	32	2,5	44	4	M12	M6	32
5998610	32MHCSFC200M	20	36	32	2,5	46	4	M12	M6	32
5998751	32MHCSFC250M	25	36	32	2,5	47	4	M12	M6	32
