Designed for reliability and versatility, the King Brinell Tester applies up to 3000 kgf test force to rough castings, forgings, and non-ferrous metals. With interchangeable anvils, optional stands and adapters, and excellent accuracy (≈ ±1 %), it suits applications from incoming inspection to heavy industrial quality assurance.

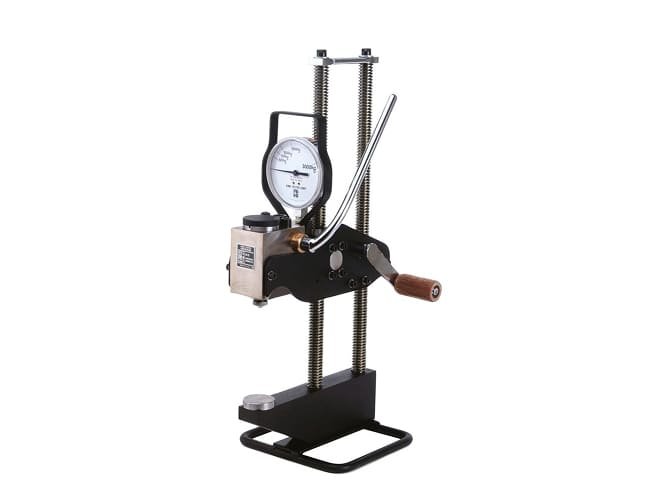

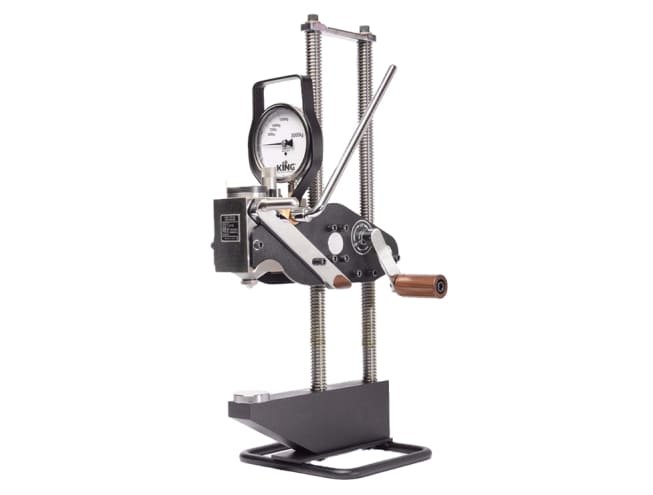

KING Portable Brinell Hardness Tester
Portable yet powerful, this tester combines handheld hydraulics with ASTM/ISO certified calibration, allowing accurate HBW scale readings in challenging locations. Its durable build, multiple testing forces, and impressive capacity for large sample size make it a preferred choice for both field technicians and laboratory specialists.
Features
Overview
| Parameter | Specification |
|---|---|
| Model / Product Name | KING Portable Brinell Hardness Tester |
| Test Load Range | Up to 3000 kgf (other heads may support lower loads, e.g. 62.5-1000 kgf) |
| Indenter Type | 10 mm tungsten carbide ball (standard) |
| Scales Available | HBW 30, HBW 15 (common); depending on load and material |
| Accuracy / Calibration Tolerance | Better than ±1 % of load; certified per ASTM E-10 / ISO / traceable to standards like NIST |
| Sample Size Capacity (Height / Depth) | Approx. 35 cm height, 10 cm depth (optional larger sizes available) |
| Dimensions & Weight | 23.5 in × 11 in × 12 in (≈ 60 × 28 × 30 cm), weight 38 lbs ( 17-18 kg) depending on base/configuration |
| Included Anvils | Flat, V-anvil, Dome-anvil (standard) |

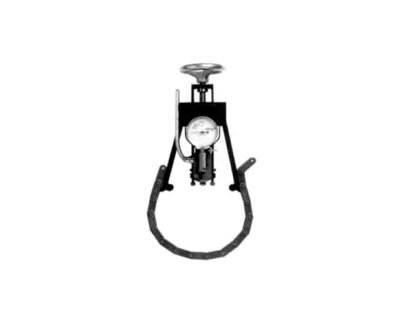

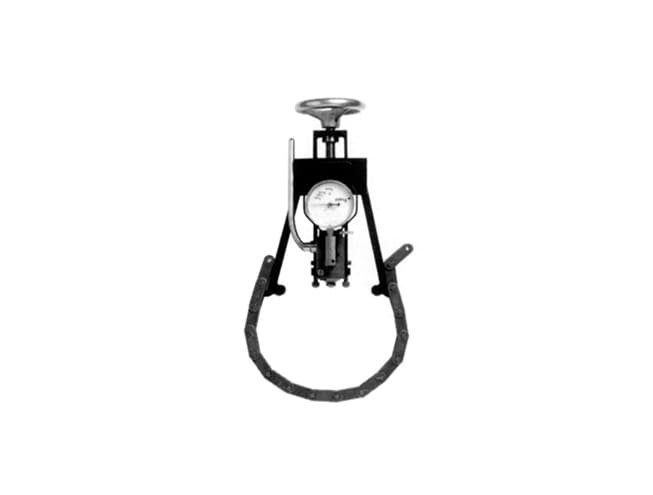

| Optional Accessories | Chain adapter, long-ram test head, large bases (for tall or wide parts), reverse adapter, test blocks, microscopes for reading indentations |
| Operating / Application Scope | Rough castings, forgings, non-ferrous metals, semi-finished parts, heat-treated items; indoor/outdoor use due to portable design |
