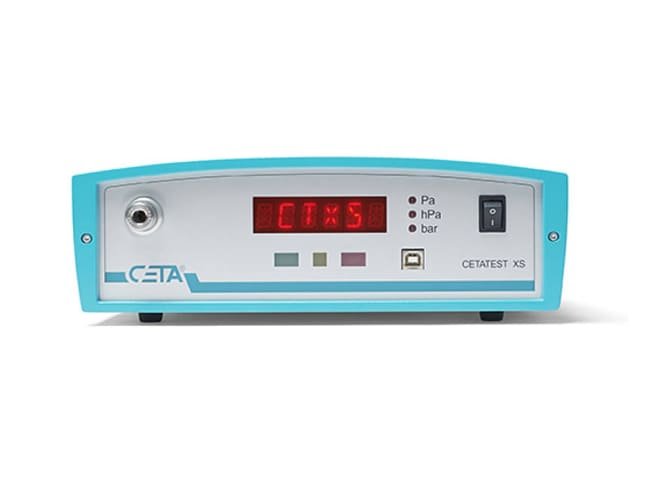

CETATEST XS Leak Tester
The CETATEST XS is a compact, fully automatic leak tester using gauge pressure sensors to detect pressure decay in test parts. With internal pressure regulation, high resolution, programmable test phases, and real-time data logging, it’s ideal for inline quality control in high-speed production.
35 people are viewing this product right now
🔥 3 items sold in last 3 hours
Designed for small-volume components, the CETATEST XS enables accurate leak detection via pressure loss measurement. It features one-channel operation, 24-bit A/D conversion, selectable pressure ranges, and built-in memory for up to 20,000 results. Suitable for integration with PC software control.
CETATEST XS Leak Tester
The CETATEST XS leak tester supports programmable test sequences including filling, stabilizing, measuring, and venting, with 0.01 s resolution. Its gauge pressure method, compact dimensions, and multiple internal pressure ranges make it versatile for industrial leak testing applications.
Features
Overview
| Specification | Value / Description |
|---|---|
| Operating method / test mode | Pressure decay (relative pressure method) |
| Channels | One-channel operation |
| Signal processing | 24-bit A/D converter |
| Valve type | Multi-function block (electromagnetically controlled) |
| Pressure ranges (internally regulated) | -1 bar / +1 bar; 0.010 – 0.200 bar; 0.020 – 1.000 bar; 0.20 – 8.00 bar (external regulation optional) |
| Measurement ranges | ± 2,500 Pa; ± 9,999 Pa / ± 25.0 hPa; ± 99.9 hPa (depending on pressure range) |
| Deviation / accuracy | Gauge pressure: 1% (full scale); pressure loss: 1% (of measuring range) |
| Test options | Smooth filling (pressure ramp), prefilling, preventing |
| Programmable phases | Delay, filling, stabilizing, measuring, venting; user-configurable in 0.01 s steps |
| Parameter memory / programs | 8 test programs via PC software |
| Result memory | Ring memory for 20,000 results |
| Power supply / consumption | 24 VDC, max. 20 W; external supply input: 100–240 VAC → 24 VDC |
| Compressed air / pneumatic supply | Minimum: 2 bar or 1 bar above test pressure; up to 9.5 bar + tolerances |
| Pneumatic connections | Input air: 6 mm plug-in fitting; Port for test part: up to 6 × 1 mm fittings |
| Dimensions (W × H × D) | 280 mm × 96 mm × 250 mm |
| Weight | 4.5 kg including external power supply |
| Warranty | 3 years (with annual maintenance), optional extension to 5 years |
