Otsuka Optics’ SL130B (table stand type) features coaxial LED illumination aligned with the lens axis to reveal fine surface texture and flaws. The rectangular lens design gives a natural field of view and switchable 2×/4× magnification options, ideal for detailed inspection and quality control tasks.

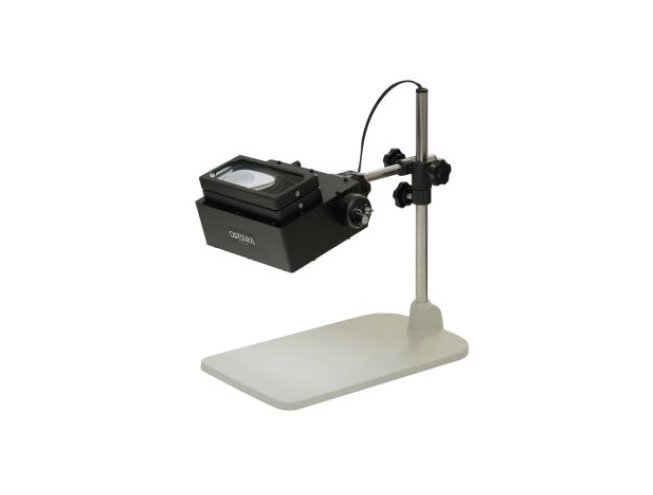

LED Coaxial Illumination Magnifier SL130B Otsuka Optics

This LED coaxial illumination magnifier uses AR-coated optical glass lenses and a powerful white LED to highlight uneven surfaces and subtle textures. Its stable table-stand design and adjustable dimming allow precise control of lighting intensity for thorough visual inspection.

Features

Coaxial LED Illumination

Light shines along optical axis for clear defect and texture visualization.

Switchable 2×/4× Magnification

Offers two magnification levels for flexible inspection needs.

AR-Coated Rectangular Lens

Anti-reflection coating reduces glare and improves clarity.

Dimmable Lighting

Adjustable brightness from 100 % down to 0 % offers precise light control.

Spesification

Lens
Line Up	2x, 4x switchable (area magnification) Optical lens glass lens with AR (anti-reflection) coating
Lens dimensions	Effective diameter130mm×50mm
Illumination
Light Source	White LED
Rated power consumption	16W
AC adapter type	UNIFIVE336-2415(24V/1.5) Weight: 270g
AC adapter input voltage	AC100V～240V 50/60Hz
AC adapter shape	A plug
AC adapter cord length	1800m
Dimming function	Yes (100 to 0%)
Main body
Dustproof and waterproof protection class	IP30 (for indoor use only)
Operating temperature range	０℃～３５℃
Weight	3kg
