Engineered for industrial and laboratory environments, the MGL-CF combines ergonomic maneuverability with advanced optical clarity. The compact articulated arm allows smooth positioning within limited workspaces, while adjustable LED brightness enhances inspection accuracy. Its durable construction and interchangeable magnification options make it ideal for electronics assembly, quality control, and precision technical applications.

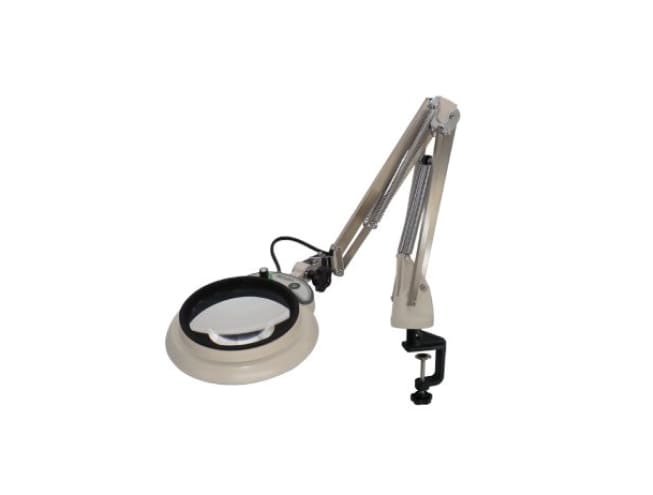

LED Illuminated Mangifire MGL-CF Otsuka Optics
The MGL-CF magnifier integrates a large-diameter precision lens and energy-efficient LED lighting into a space-saving clamp-mount design. Anti-reflection optical technology improves contrast and reduces eye strain. Designed for professional inspection workflows, it provides reliable performance for manufacturing, maintenance, research, and detailed craftsmanship requiring consistent illumination and magnified visibility.
Features
Spesification
| LENS | |
|---|---|
| Mangnification | 2XAR、3XAR、4XAR |
| LENS method | Magna Wide Lens system |
| Lighting | |
| Light source | High color rending LED (Ra≧95) with diffusion protective color |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| Rated power consumption | 14W |
| Dimming function | 100％〜0％ |
| Body | |
| weight(Kg) | 2.1(excluding lens weight) |
| height(mm) | 680 |

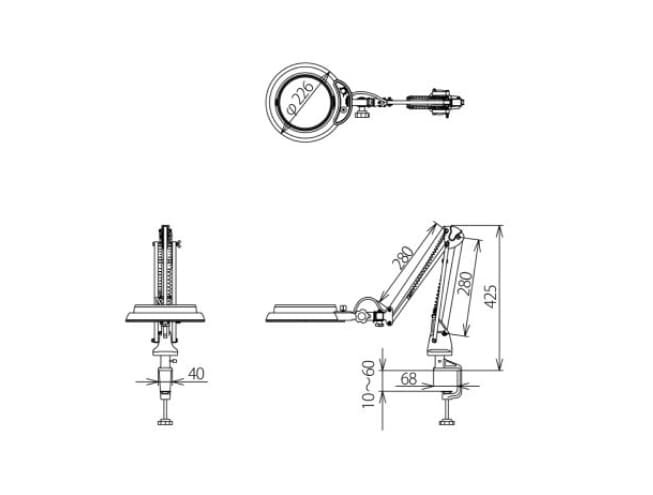

| Head Dimentions(mm) | Φ226 |
| Clamping width(mm) | 10-60 |
| AC Adapter Dimensions(mm) | 87×45×34H（excluding wire） |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection class | IP20(for indoor use only） |
