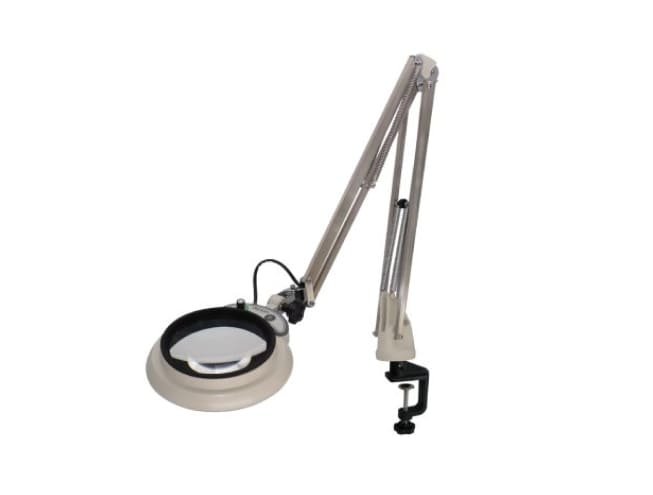

LED Illuminated Mangifire MGL-F Otsuka Optics
The LED Illuminated Mangifire MGL-F from Otsuka Optics is a professional free-arm magnifier designed for precision inspection tasks. It features the Magna Wide Lens System with AR coating, providing a large viewing area and reduced reflection. High color-rendering LED illumination ensures accurate color perception while maintaining energy efficiency and stable brightness performance.
15 people are viewing this product right now
🔥 4 items sold in last 3 hours
Engineered for industrial and laboratory environments, the MGL-F combines ergonomic flexibility with advanced optical clarity. Its articulated free-arm structure allows smooth positioning and secure stability during operation. The ultra-high color rendering LED with adjustable dimming supports detailed visual work, improving inspection accuracy, reducing eye strain, and enhancing productivity during prolonged use.
LED Illuminated Mangifire MGL-F Otsuka Optics
The MGL-F magnifier integrates a large-diameter 150 mm lens and adjustable illumination system for superior visibility in demanding applications. Designed as the successor to the LSK Wide series, it incorporates modernized components and improved cost efficiency. The interchangeable lens options enable versatile magnification levels suited for electronics, precision manufacturing, and quality control workflows.
Features
Spesification
| LENS | |
|---|---|
| Mangnification | 2XAR、3XAR、4XAR |
| LENS method | Magna Wide Lens system |
| Lighting | |
| Light source | High color rending LED (Ra≧95) with diffusion protective color |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| Rated power consumption | 14W |
| Dimming function | 100％〜0％ |
| Body | |
| weight(Kg) | 2.4(excluding lens weight) |
| height(mm) | 1000 |
| Head Dimentions(mm) | Φ226 |
| Clamping width(mm) | 10-60 |
| AC Adapter Dimensions(mm) | 87×45×34H（excluding wire） |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection class | IP20(for indoor use only） |
