Designed for demanding professional applications, the MGL-FD magnifier integrates advanced LED illumination with a durable mechanical structure. The optical system minimizes distortion while enhancing contrast for detailed observation. Adjustable positioning allows users to achieve optimal viewing angles, improving productivity and inspection accuracy in manufacturing, research, and technical maintenance operations.

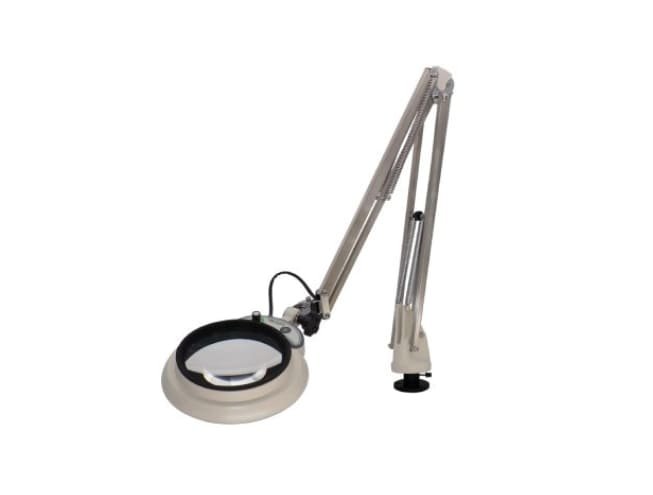

LED Illuminated Mangifire MGL-FD Otsuka Optics
Otsuka Optics’ MGL-FD combines robust construction with precision magnification performance to meet industrial inspection requirements. The integrated LED lighting system ensures shadow-free illumination and reduced eye fatigue. Its stable mounting and flexible adjustability make it suitable for continuous operation in assembly lines, precision engineering workshops, and professional laboratory settings worldwide.
Features
Spesification
| LENS | |
|---|---|
| Mangnification | 2XAR、3XAR、4XAR |
| LENS method | Magna Wide Lens system |
| Lighting | |
| Light source | High color rending LED (Ra≧95) with diffusion protective color |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| Rated power consumption | 14W |
| Dimming function | 100％〜0％ |
| Body | |
| weight(Kg) | 2.2(excluding lens weight) |
| height(mm) | 1000 |

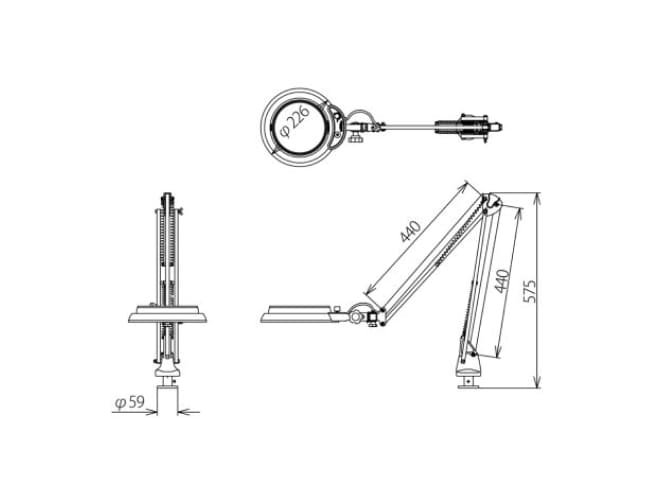

| Head Dimentions(mm) | Φ226 |
| Clamping width(mm) | 10-60 |
| AC Adapter Dimensions(mm) | 87×45×34H（excluding wire） |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection class | IP20(for indoor use only） |
