The MGL-MS model from Otsuka Optics combines premium optics and LED illumination in a magnetic-mount style magnifier. Its large anti-reflection wide lens and high color rendering LED provide bright, detailed views while smoothing eye strain. Ideal for industrial inspection or detailed work on metallic surfaces.

LED Illuminated Mangifire MGL-MS Otsuka Optics

Otsuka Optics’ MGL-MS LED Illuminated Magnifier utilizes a Magna Wide Lens System for expanded field of view and AR-coated optics that minimizes reflections. With adjustable dimming and powerful LED lighting, this magnetic stand type magnifier supports clear, fatigue-free inspection tasks in manufacturing and assembly environments.

Features

Magna Wide Lens System

Large Φ150 mm diameter lens providing ~25% wider field of view than standard magnifiers.

Anti-Reflection (AR) Coating

Minimizes glare and reflection, reducing eye strain during detailed work.

High-CRI LED Lighting

High color rendering LED (Ra ≥ 95) for accurate visual inspection.

Magnetic Stand Mount

Magnet-based attachment allows secure fixing on steel surfaces.

Dimming Function

Adjustable brightness from 100 % to 0 % for custom lighting.

Spesification

LENS
Mangnification	2XAR、3XAR、4XAR
LENS method	Magna Wide Lens system
Lighting
Light source	High color rending LED (Ra≧95) with diffusion protective color
Rated input voltage	AC100V～240V 　50/60Hz to 240V can be used by changing AC cord only.
Rated power consumption	14W
Dimming function	100％〜0％

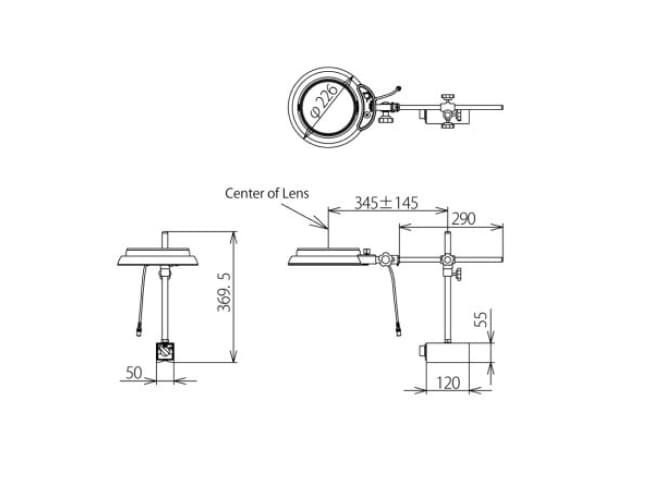

Body
weight(Kg)	3.2(excluding lens weight)
height(mm)	369.5
Head Dimentions(mm)	Φ226
Vertical/Horizontal bar(Φ/mm)	Φ16/Φ13
AC Adapter Dimensions(mm)	87×45×34H（excluding wire）
Operating temperature range	5℃ ～ 35℃
Dustproof and waterproof protection class	IP20(for indoor use only）
