Designed for bench-based inspection, the MGL-ST model combines premium wide optics and powerful LED illumination. Adjustable brightness lets you adapt lighting to your task while the clamp-type mount ensures firm attachment to work surfaces. Perfect for industrial inspection, quality control, and hobby assembly work.

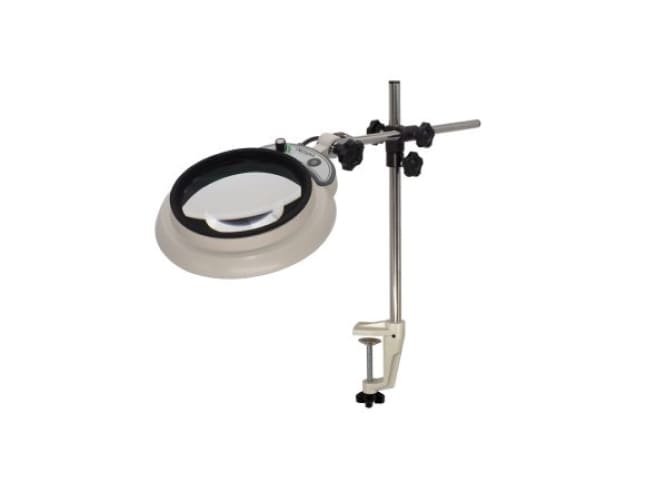

LED Illuminated Mangifire MGL-ST Otsuka Optics
Otsuka Optics’ MAGNALIGHT MGL-ST offers precise visual inspection with its Magna Wide Lens System and high color rendering LED light. The long bar clamp lets users attach the magnifier securely to desks or benches, providing stable, fatigue-reducing lighting for detailed tasks.
Features
Spesification
| LENS | |
|---|---|
| Mangnification | 2XAR、3XAR、4XAR |
| LENS method | Magna Wide Lens system |
| Lighting | |
| Light source | High color rending LED (Ra≧95) with diffusion protective color |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| Rated power consumption | 14W |
| Dimming function | 100％〜0％ |
| Body | |
| weight(Kg) | 1.4(excluding lens weight) |
| height(mm) | 345 |
| Head Dimentions(mm) | Φ226 |
| Vertical/Horizontal bar(Φ/mm) | Φ16/Φ13 |
| AC Adapter Dimensions(mm) | 87×45×34H（excluding wire） |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection class | IP20(for indoor use only） |
