Designed for precision inspection and visual tasks, the OLIGHT3L-B spreads diffused LED illumination over the work area for clearer viewing. Interchangeable Recta-System lenses (2× and 3.5×) provide flexibility, and the adjustable dimmer lets users tailor brightness. The compact, easy-to-install table stand makes it ideal for versatile bench inspection setups.

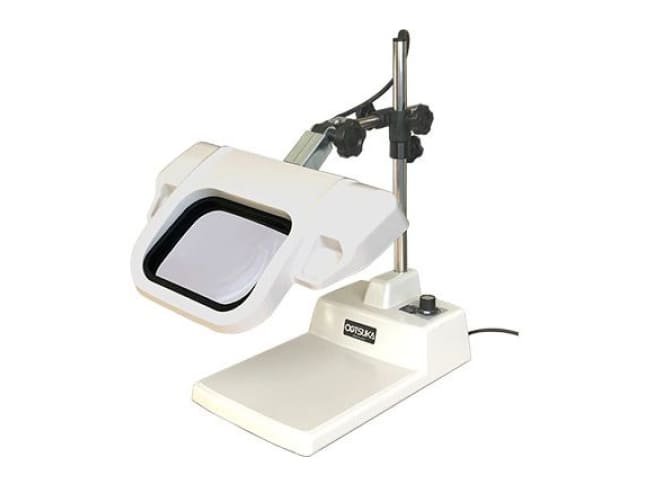

LED Illuminated Mangifire OLIGHT3L-B Otsuka Optics
The Otsuka Optics OLIGHT3L-B features an LED panel that projects angled lighting through a large rectangular lens, making surface details more visible. It’s a cost-effective illuminated magnifier solution with optical glass lenses and adjustable lighting intensity, suited for electronics inspection, quality control, and detailed visual tasks requiring clarity and comfort.
Features
Overview
| Lens spec | |
|---|---|
| Magnification | 2x 3.5x |
| Lens Dimension (mm) | 144×108 |
| Effective Lens Dimensions (mm) | 139×103 |
| Lens Material | Optical glass |
| working distance (mm) | 2x-160,3.5x-120 |
| Lens Weight (g) | 2x-560,3.5x-730 |
| Lens system | Recta-lens system |
| AR Coating options | Yes-2x or 3.5x |
| Illumination | |
| Light Source | LED lighting panel |
| Power Supply Voltage | 100-240V, 50/60Hz, Type A plugs *Usable with 125-240V power via replacement of AC cord with plug. Please inquire with the retail point of sale for details. |
| Power Consumption | 9W |
| Standby Power | 0W |
| Dimmer Function | Yes – Dimmer range of 50-100% |
| Body | |
| Product weight | OLIGHT3L 2x (approx. 2.9kg) 3.5X(approx. 3.1Kg) |
| Height (mm) | 380 |
| Depth (mm) | 300 |
| Width (base – mm) | 185 |
| Clampable Widths (mm) | 15 – 60 |
| Usable Temperature Range | 5℃～40℃ |
| Dust and Water Protection Rating | IP20 (Indoor use only) |
