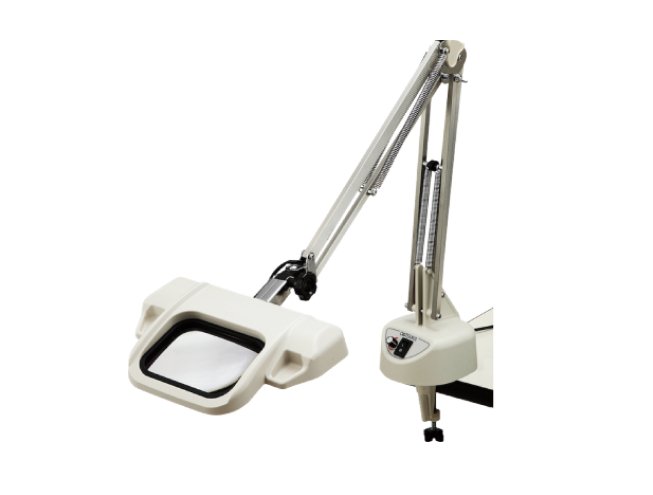

Otsuka Optics’ OLIGHT3L-F 6500K features a rectangular lens with minimized distortion and a slanted LED light panel to reveal surface scratches and contours. The free arm and clamp design allow workspace flexibility, while optional AR-coated lenses reduce reflection and improve clarity during prolonged inspection use.
LED Illuminated Mangifire OLIGHT3L-F 6500K Otsuka Optics
This LED illuminated magnifier combines bright cool-white lighting with a large rectangular optical glass lens. With adjustable brightness and a free arm clamp mount, the OLIGHT3L-F 6500K is ideal for quality control, visual inspection, and detailed assembly tasks requiring accurate visual detection.
Features
Overview
| Lens spec | Free arm-type |
|---|---|
| Magnification | 2x 3.5x |
| Lens dimension (mm) | 144×108 |
| Effective lens dimension (mm) | 139×103 |
| Lens Material | Optical glass |
| Working distance (mm) | 2x/160, 3.5x/120 |
| Lens weight (g) | 2x/560, 3.5x/730 |
| Lens system | Recta-lens system |
| AR Coating options | Available / 2x 3.5x |
| Lighting | |
| Light source | LED light |
| Power Supply Voltage | 100～240V, 50/60Hz, plug type A * It is usable 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your distributor. |
| Power consumption | 12W |
| Dimming Function | Available / adjustment range 100～0% |
| Body | |
| Product weight | OLIGHT3L 6500 2x (approx. ３.1g) O-LIGHT III-L 3.5x (approx. 3.3Kg) |
| Arm length (mm) | 905 |
| Head Dimensions (mm) | 293×205 |
| clampable width (mm) | 15～60 |
| Operating temperature range | 5℃ ～40℃ |
| Dustproof and waterproof protection grade | IP20 (indoor use only) |
