Designed for bench-mounted inspection tasks, the OLIGHT5-B features a 150 % larger lens than earlier models, minimizing peripheral distortion and improving comfort. An AC adapter powers the LED panel, and a head-mounted ON/OFF switch offers convenient operation for detailed visual inspection.

LED Illuminated Mangifire OLIGHT5-B Otsuka Optics

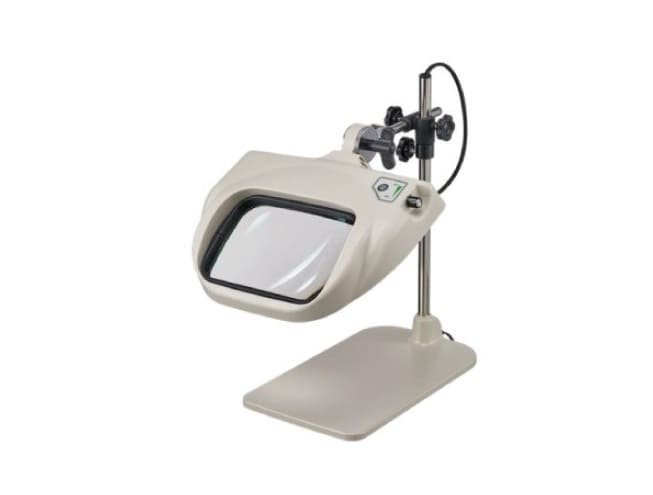

The Otsuka Optics OLIGHT5-B LED magnifier combines a stable table-stand design with a generously sized optical glass lens and adjustable LED lighting. Optional 2×AR or 4×AR magnification enhances visibility for electronics, quality control, and precision tasks.

Features

Large Rectangular Lens

Lens expanded ~150 % vs earlier models for wide, distortion-reduced viewing.

Energy-Efficient LED Light Panel

Provides bright, uniform illumination with low power consumption.

Wide Dimming Range

Continuous dimming from 100 % down to 10 % for visual comfort.

AR Coating Standard

Anti-reflection coating reduces eye fatigue during long inspection periods.

Stable Table Stand Design

Self-supporting desktop unit with compact clamps that don’t interfere with work surface.

Overview

Lens spec
Magnification	2xAR
Lens Dimension (mm)	180×120
Lens Material	Optical glass
working distance (mm)	160
Lens system	BIG-Recta-system－lens
AR Coating options	standard equipment
Illumination
Light Source	LED lighting panel
Power Supply Voltage	100-240V, 50/60Hz, Type A plugs *Usable with 125-240V power via replacement of AC cord with plug. Please inquire with the retail point of sale for details.
Power Consumption	9W
Dimmer Function	Yes – Dimmer range of 100％-10%
Body
Product weight	Oapprox 2.2kg (Without lens and AC adapter/body weight)
Height (mm)	391
Vertical /Horizontal Bar (diameter / mm)	Φ16/Φ13
Table dimensions (mm)	320×188
