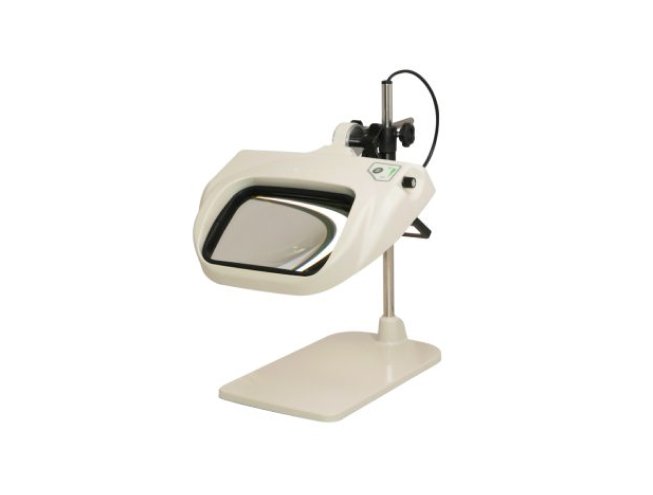

Otsuka Optics’ OLIGHT6-B combines wide-field optics with OLED lighting that produces smooth, even illumination and dimmable brightness from 100 % to 10 %. Designed as a desk-stand magnifier, it suits detailed visual inspection, quality control, and assembly work with reduced eye strain and distortion.
LED Illuminated Mangifire OLIGHT6-B Otsuka Optics
This OLED illuminated magnifier uses a large 180 × 120 mm AR-coated rectangular lens and interchangeable magnification options (2×, 4×). With OLED panel dimming and adjustable illumination angle control, the OLIGHT6-B delivers consistent, high-contrast viewing ideal for industrial inspection tasks and visual quality assurance.
Features
Spesification
| Lens | |
|---|---|
| Magnification line up | 2XAR,4XAR |
| Effective lens dimensions(mm) | 180×120 |
| Lens Material | Optical lens |
| Working distance (mm) | 2X:160,4X:100 |

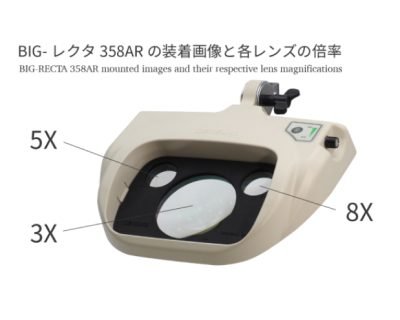

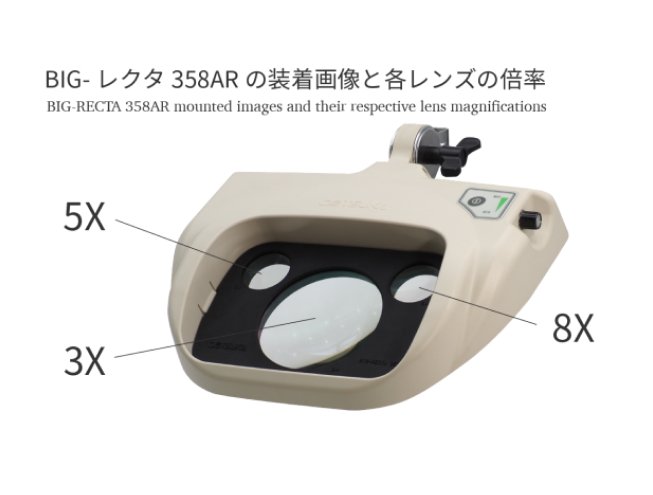

| Lens system | BIG-Recta-system－lens |
| R (Anti-Reflection) coated lens lineup | Standard equipment |
| Light source | Light source OLED panel |
| Dimming function | Yes(100%~10%) |
| Rated power consumption | 7W |
| Color temperature | 4000K(white) |
| Total Luminous Flux (lm) | 200 (per panel) |
| Average color rendering index (Ra)（Ra） | 90 |
| Luminous surface size (mm) (mm) | L273×W30 |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| AC adapter model, rating | UNIFIVE336-2415(24V/1.5) weight：270ｇ |
| Illuminance directly under the center (Max) | 1820LX/100mm 1120LX/150mm 360LX/300mm (measured by our measurement method) |
| Illuminance directly under the center (Min) | 130LX/100mm 80LX/150mm 25LX/300mm (measured by our measurement method) |
| Weight(Kg) | 2.3(excluding lens weight) |
| Clamping width (mm) | 10-60 (board thickness) |
| Dustproof and waterproof protection class IP20 (for indoor use only) | IP20 (for indoor use only) |
| Operating temperature range | ５℃～３５℃ |
