Otsuka Optics’ OLIGHT6-F revolutionizes visual inspection with an organic EL lighting panel producing uniform brightness and high contrast. Interchangeable BIG-Recta lenses approximate human field of view while adjustable dimming supports detailed inspection tasks, quality control, and precision assembly in industrial or lab environments.
LED Illuminated Mangifire OLIGHT6-F Otsuka Optics

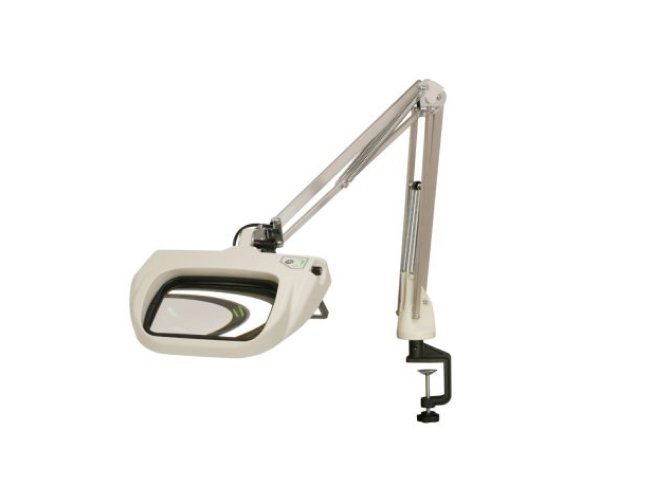

This OLED illuminated magnifier combines stable free-arm positioning with a flexible clamp and high-clarity optics. Its 4000 K white OLED panel with dimming (100 %–10 %) and anti-reflective coated rectangular lenses make the OLIGHT6-F ideal for extended visual inspection and detailed surface analysis work.
Features
Spesification
| Lens | |
|---|---|
| Magnification line up | 2XAR,4XAR |
| Effective lens dimensions(mm) | 180×120 |
| Lens Material | Optical lens |
| Working distance (mm) | 2X:160,4X:100 |
| Lens system | BIG-Recta-system－lens |
| R (Anti-Reflection) coated lens lineup | Standard equipment |
| Illumination | |
| Light source | Light source OLED panel |
| Dimming function | 100%~10% |
| Rated power consumption | 7W |
| Color temperature | 4000K(white) |
| Total Luminous Flux (lm) | 200 (per panel) |
| Average color rendering index (Ra)（Ra） | 90 |
| Luminous surface size (mm) (mm) | L273×W30 |
| Rated input voltage | AC100V～240V 50/60Hz to 240V can be used by changing AC cord only. |
| AC adapter model, rating | UNIFIVE336-2415(24V/1.5) weight：270ｇ |
| Illuminance directly under the center (Max) | 1820LX/100mm 1120LX/150mm 360LX/300mm (measured by our measurement method) |
| Illuminance directly under the center (Min) | 130LX/100mm 80LX/150mm 25LX/300m (measured by our measurement method) |
| Main body | |
| Weight(Kg) | 2.3(excluding lens weight) |
| Clamping width (mm) | 15-60 (board thickness) |
| Dustproof and waterproof protection class IP20 (for indoor use only) | IP20 (for indoor use only) |
| Operating temperature range | ５℃～３５℃ |
