Otsuka’s SKK-CF LED Illuminated Magnifier offers bright, consistent lighting and interchangeable lenses from 2× to 15× magnification. Its horizontal swing head and efficient clamp design enable easy adjustment for close-up inspection tasks, detailed assembly, and visual inspection work in industrial and lab settings.
LED Illuminated Mangifire SKK-CF Otsuka Optics

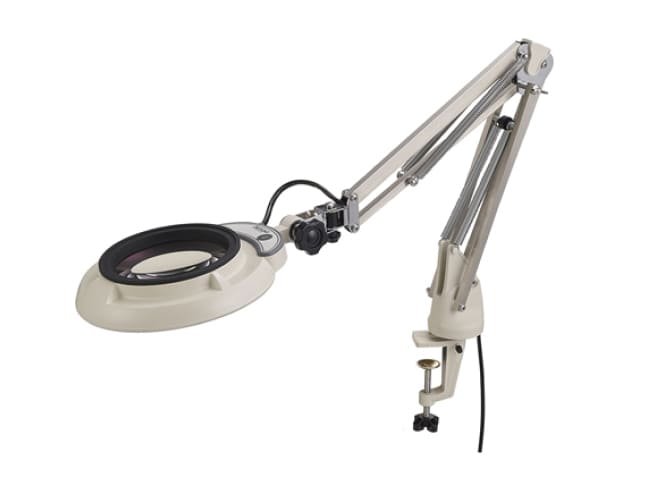

This LED-illuminated magnifier combines high-quality optics with a space-saving clamp and flexible swing arm. Suitable for meticulous visual tasks, the high-CRI LED ensures clear illumination while various lens options support a wide range of magnification needs. Reliable and ergonomic for precision environments.
Features
Overview
| Lens | |
|---|---|
| Magnifier Lens Magnification Lineup | 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x |
| AR (anti-reflection) Coated Lens Lineup | Available / 2x, 3x, 4x, 6x, 8x, 10x |
| Lighting | |
| Light source | LED circular tube |
| Input voltage | 100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V. Please contact your sales dealer for details. |
| Power consumption | 10W |
| Dimming Function | Not available |
| Body | |
| Weight (Kg) | 1.8kg (Without lens and AC adapter/body weight) |
| Possible clamping width | 15～60 (mm) |
| Operating temperature range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection grade | IP20 (indoor use only) |
