The SKKL-F LED magnifier from Otsuka Optics provides hands-free magnification with clamp mounting. Adjustable interchangeable lenses (2×–15×) offer versatile viewing options, while a high-CRI LED and anti-glare diffuser ensure bright, even lighting. Compact design and horizontal head swivel allow optimal positioning for electronics, craftsmanship, or inspection use.

LED Illuminated Mangifire SKK-F Otsuka Optics

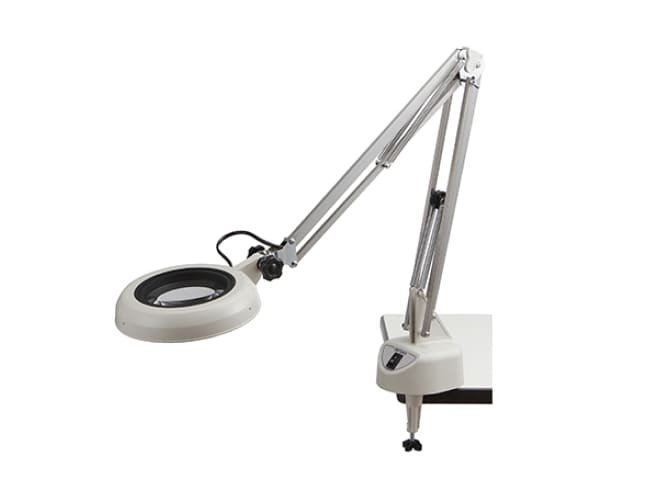

Otsuka Optics’ SKKL-F LED illuminated magnifier combines dependable LEDs with a free-arm clamp stand for precise visual work. The durable swing arm extends reach and flexibility, while the LED head reduces eye strain and enhances clarity across a range of magnifications. Ideal for workshops, laboratories, and inspection benches.

Features

High-CRI LED Lighting

White LED with CRI ≥ 90 for accurate colour and reduced eye fatigue.

Interchangeable Lens System

Magnification from 2× to 15× with standard or AR coated lenses.

Free-Arm Clamp Mount

Clamp-on swing arm allows flexible placement on desks.

LED Light with Diffuser

Board-mounted LED with diffusion cover for even illumination.

Head Swivel

Horizontal head rotation expands working range and positioning.

Overview

Lens
Magnifier Lens Magnification Lineup	2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) Coated Lens Lineup	Available / 2x, 3x, 4x, 6x, 8x, 10x
Lighting
Light source	High Color Quality White LED(CRI≧90) with Protective cover for diffusion
Input voltage	100～240V: 50/60 Hz: Plug Type A *Change or purchase an additional AC cord to use at 125-240V. Please contact your sales dealer for details.
Power consumption	7W
Dimming Function	Not available
Body
Weight (Kg)	2.0kg (Without lens /body weight)
Possible clamping width (diameter/mm)	15〜60
Operating temperature range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (indoor use only)
