Designed for professional inspection tasks, the SKKL-CL offers versatile illumination modes for external and transmitted viewing. High CRI LED lighting ensures vibrant, accurate colors while protective diffusers maintain comfortable work conditions. Its robust build supports consistent performance during precision inspection of electronics, films, and small components.

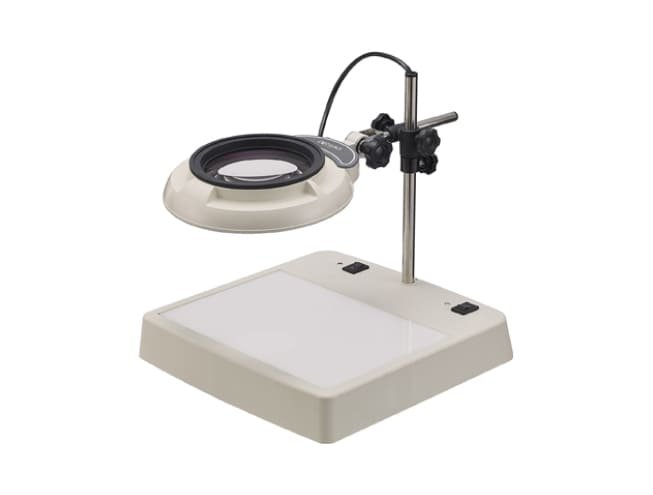

LED Illuminated Mangifire SKKL-CL Otsuka Optics
This light box-type magnifier features interchangeable lenses ranging from 2× to 15× magnification, enabling detailed analysis of tiny objects and internal features. Independent on/off control for both lighting sources enhances inspection flexibility, making it ideal for quality control, lab work, and industrial applications requiring enhanced visual clarity.
Features
Overview
| Category | Specification |
|---|---|
| Product Name | Otsuka Optics LED Illuminated Magnifier SKKL-CL |
| Model Type | Light box type illuminated magnifier |
| Magnification Options | 2×, 3×, 4×, 6×, 8×, 10×, 12×, 15× |
| AR Coated Lens Options | Yes (2×, 3×, 4×, 6×, 8×, 10×) |
| Lighting Sources | Epi-illumination LED (white LED, CRI ≥ 90) + transillumination LED (white LED) |
| Input Voltage | 100–240 V, 50/60 Hz (plug type A; optional plug change for other voltages) |
| Power Consumption | Approx. 12 W total (9W + 5W) |
| Dimming Function | None; each lighting can be switched on/off separately |
| Weight (Without Lens) | 3.2 kg |
| Operating Temp. Range | 5℃ – 35℃ |
| Protection Grade | IP30 (indoor use only) |
