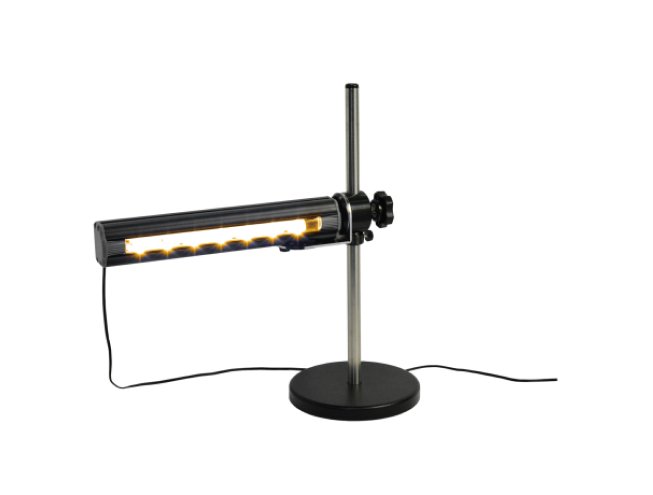

LED Light For Checking Surface Flaws BARLIGH 2A Otsuka Optics
The Otsuka Optics BARLIGHT 2A is a surface flaw inspection LED light designed to enhance visibility of fine scratches, dust, and other surface irregularities on flat objects. It uses high-brightness LEDs with a planar beam to improve defect detection, either alone or paired with optical magnifiers for precision inspection.
38 people are viewing this product right now
🔥 12 items sold in last 3 hours
The BARLIGHT 2A from Otsuka Optics provides consistent, focused illumination for surface inspection tasks. Its parallel-arranged LED and lens design deliver a flat light beam that highlights minor flaws and texture variations, making it ideal for industrial quality control and detailed visual checks.
LED Light For Checking Surface Flaws BARLIGHT 2A Otsuka Optics
Otsuka Optics’ BARLIGHT 2A LED light improves visual surface flaw detection by shining a narrow beam of high-intensity white LED light across a workpiece. Lightweight and easy to mount, it’s suitable for use both independently and as auxiliary lighting alongside optical inspection tools.
Features
Spesification
| Lighting | |
|---|---|
| Light source | LED x 7pcs |
| Input voltage | 100V:50/60 Hz:Plug Type A *The voltage cannot be polarized. |
| Illuminance( Irradiation divergence angle 6°/measured value) | 150mm/15000Lx、 200mm/10000Lx、 300mm/5800Lx、400mm/3600Lx |
| Power consumption | 8W |
| Dimming Function | Not available |
| Adjustment function for irradiation divergence angle | Not available |
| Cord length (mm) | Ac Adapter: 1800 |
| Body | |
| Weight(g) | 370g (illuminating head/300g) |
| Operating temperature range | 0℃ ～ 40℃ |
| Dustproof and waterproof protection grade | IP40(Indoor use only) |
