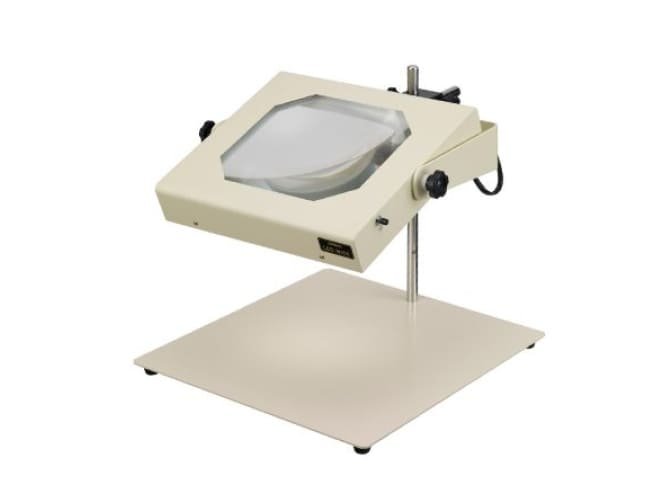

LED-WIDE-2 combines a wide rectangular optical glass lens with two white LEDs to provide consistent, even lighting and a broad viewing area. Its ON/OFF head switch improves usability, and the thoughtfully designed stand maximizes workspace without obstructing tasks. AC adapter power ensures stable, reliable operation.
LED Illuminated Mangifire LED WIDE 2 Otsuka Optics
The LED-WIDE-2 from Otsuka Optics offers fixed 2× magnification and bright LED lighting optimized for detailed inspection tasks. Its square lens prevents edge distortion common in round lenses and is ideal for prolonged use, making it suitable for electronics, quality control, and visual inspection environments.
Features
Overview
| Lens | |
|---|---|
| Magnification | 2x |
| Allowable lens dimension (mm) | 200×220 |
| Lens Material | Optical glass |
| Working distance (mm) | 2x/160 |
| Lens Type | Fixed |
| Multi-coating Setting | Not available |
| Lighting | |
| Light source | White LEDs 2 pcs. |
| Input voltage | 100〜240V: 50/60 Hz: Plug Type A |
| Power consumption | 22 W |
| Dimming Function | Not available |
| Body | |
| Product weight (Kg) | 12.7 Kg |

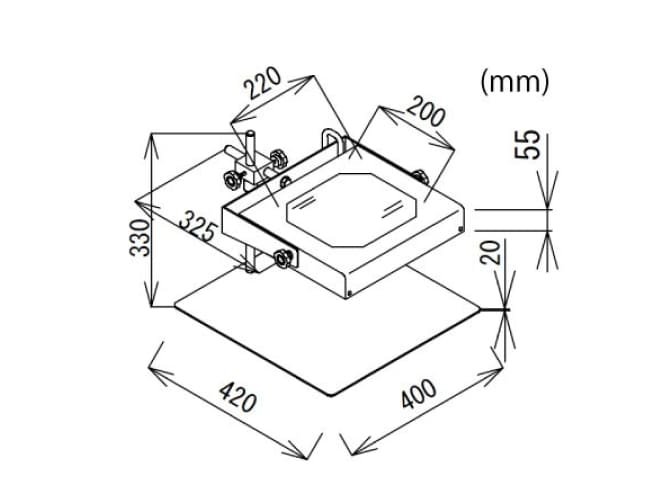

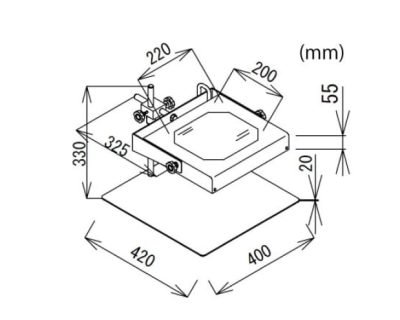

| Overall height (mm) | 330 |
| Head Dimensions (mm) | 314X284X55H |
| Virtical/Horizontal Bar (diameter/mm) | ɸ16/ɸ16 |
| Table dimensions (mm) | 420x400x20 |
| AC adapter dimensions (mm) | 64x50x27 |
