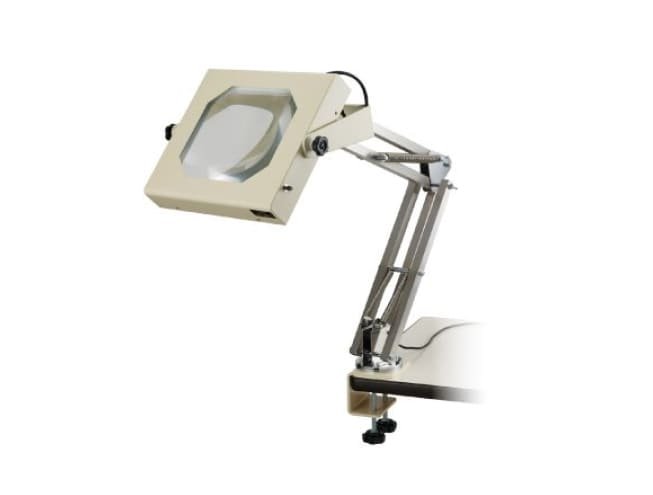

Designed for workspace inspection applications, the LED-WIDE-4 combines efficient LED illumination with a broad optical viewing area. Its square, distortion-reducing lens enables comfortable, extended use. An easy-access ON/OFF switch and AC adapter power supply add convenience during detailed visual inspection tasks at workbenches and production lines.
LED Lighting Mangifire WIDE 4 Otsuka Optics
The LED-WIDE-4 LED lighting magnifier from Otsuka Optics offers a large fixed-lens viewing area with bright, diffused LED light. Consuming significantly less power than traditional fluorescent models, it clamps securely to work surfaces and is ideal for inspecting electronics, surface defects, and small components in industrial or laboratory settings.
Features
Overview

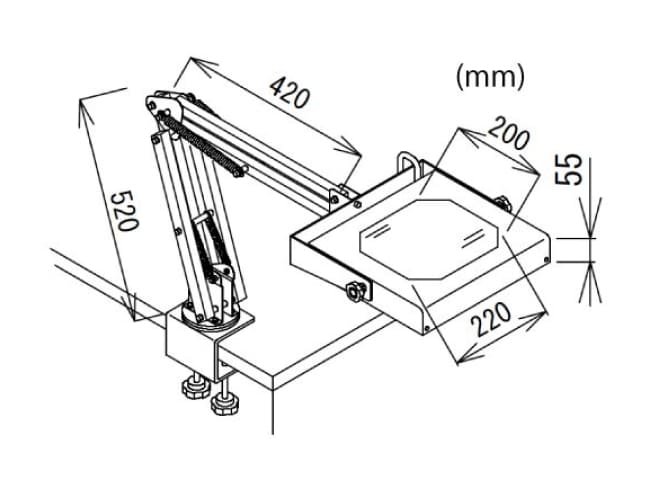

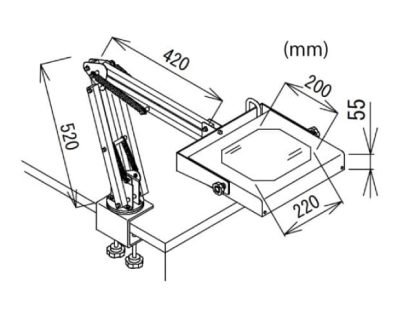

| Specification | Value |
|---|---|
| Model | LED-WIDE-4 (free arm type) |
| Magnification | 2× (fixed) |
| Effective Lens Dimension | 200 × 220 mm |
| Lens Material | Optical glass |
| Working Distance | Approx. 160 mm |
| Light Source | White LEDs × 2 |
| Power Consumption | 9 W |
| Input Voltage | 100–240 V, 50/60 Hz (AC adapter) |
| Weight | Approx. 10.8 kg |
| Arm Length | 800 mm |
| Head Dimensions | 314 × 284 × 55 mm |
| Clamping Width Range | 0–70 mm |
