The EW-3000 is a high-end hardness testing machine capable of performing both Brinell and Vickers tests. It features a load cell, closed-loop system for precise test loads ranging from 30kgf to 3000kgf. With a German-made optical system, high-quality objectives, and either an analogue or digital microscope, it delivers accurate and reliable results. It also provides real-time statistics and data output via RS-232 for seamless integration.

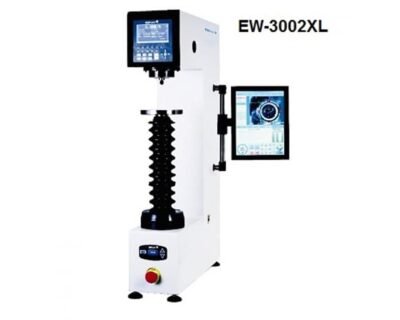

Load Cell Closed Loop Brinell Hardness Tester EW-3000

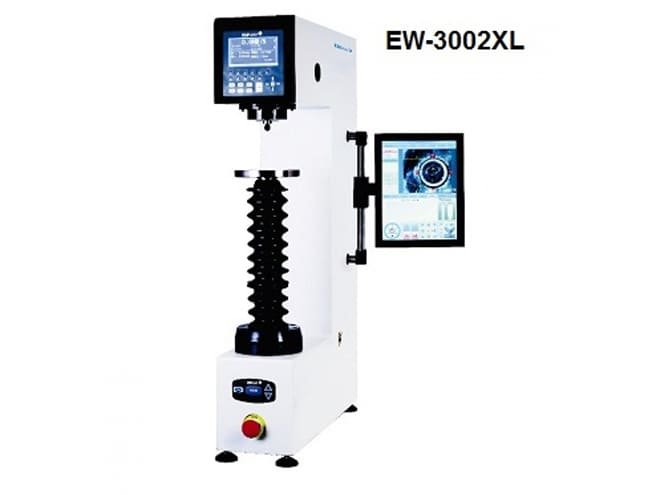

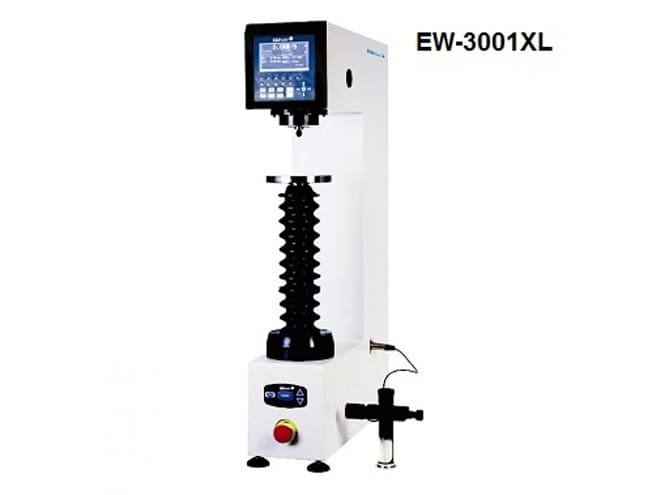

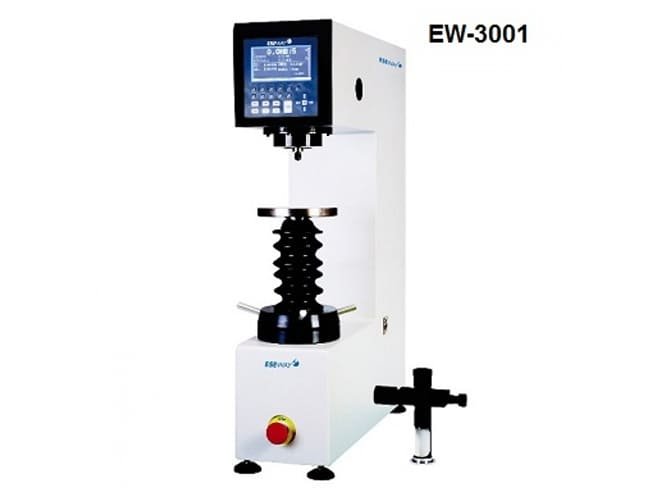

This versatile machine offers simultaneous conversion to Rockwell, Vickers, Brinell, and Leeb rebound testing. The EW-3001 model includes an analogue microscope, while the EW-3002 model features a digital microscope for automatic indentation measurement. Both models come with standard objectives for 10x, 25x, and 100x magnification, and there is an optional Brinell video microscope system. For larger workpieces, an optional XL version is available with a 450mm workpiece height.

Features

Closed Loop Load Cell System

This system ensures high accuracy and precision for test loads, with a range from 30kgf to 3000kgf.

Dual Testing Capability

This machine is designed to perform both Brinell and Vickers testing, making it highly versatile.

German-Made Optics

It is equipped with a German-made optical system that features high-quality objectives for clear, detailed images.

Digital Display and Connectivity

Its LCD screen shows hardness values, statistics, and settings, and it has an RS-232 data output for easy data transfer.

Automatic Scale Conversion

The machine can simultaneously convert test results to Rockwell, Vickers, Brinell, and Leeb rebound scales, which increases work efficiency.

Overview

Specification	Value
Test Loads	30kgf – 3000kgf
Models	EW-3001 (analogue micrometer reading)<br>EW-3002 (digital microscope, automatic measurement)
Microscope Magnification	10x, 25x, and 100x
Ball Indenters	ø 1mm, ø 2.5mm, ø 5mm, ø 10mm
Workpiece Height (XL Version)	450mm
Throat Depth (XL Version)	250mm
Data Output	RS-232
